0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
0.69 Inch OLED Display Module with 96×16 Resolution and I2C Interface
Specifications
Brand Name :
YZY
Model Number :
E069XI-W-C08-04
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
1000 pieces
Price :
$2.6/pieces 100-499 pieces
Payment Terms :
T/T
Supply Ability :
10000Pieces
Delivery Time :
14-60 days
Packaging Details :
8*8*4
Type :
OLED Display
Display Size :
0.69 inch
Supplier Type :
Manufacturer
Resolution :
96 x 16
Active Area :
17.26mm * 3.18mm
Outline Dimension :
24.0mm * 6.9mm * 1.25mm
Driver IC :
SSD1312
Description

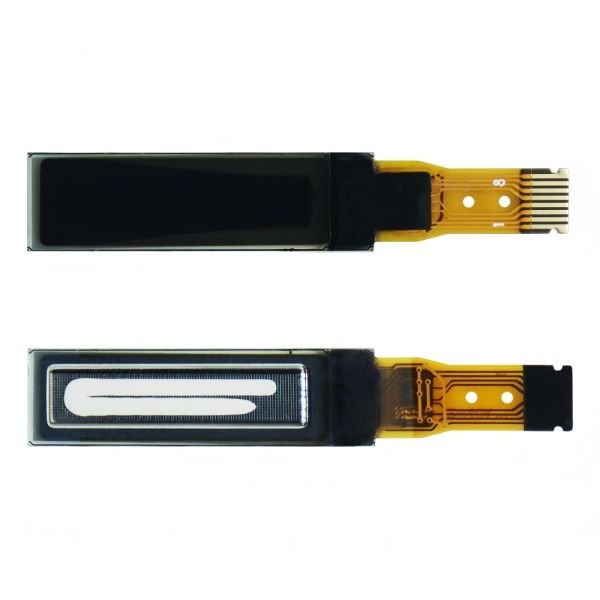

0.69-inch OLED Display Module 96×16 I2C Interface SSD1312 Driver Display Panel

The 0.69-inch OLED display module (model matches your product) is a high-performance passive matrix display featuring monochrome (white) output and 1/16 drive duty. Its compact, precision-engineered design ensures stable drive control, while the optimized mechanical structure simplifies integration into space-constrained electronic devices.

Key Features
96×16 high-definition resolution with 0.18×0.20mm pixel pitch for sharp text/pattern display
17.26×3.18mm active display area, tailored for small-screen application scenarios
Monochrome (white) display with reliable passive matrix technology
I2C interface for universal compatibility with mainstream control systems
Ultra-compact module size (24.0×6.9×1.25mm) to save installation space
Wide operating temperature range (-20℃~+70℃) for adaptability to diverse environments
RoHS compliant, meeting international environmental safety standards

Technical Specifications

Display Type 0.69 "OLED
Display Mode
Passive Matrix
Display Color Monochrome (White)
Resolution 96 × 16
Driver IC SSD1312
Drive Duty 1/16 Duty
Module Size 24.0(W) × 6.9(H) × 1.25(T) mm
Active Area 17.26(W) × 3.18(H) mm
Pixel Pitch 0.18(W) × 0.20(H) mm
Interface I2C
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
RoHS Compliance YES


Applications
Ideal for space-constrained devices including portable instruments, smart sensors, industrial controllers, and Arduino-based projects. The compact form factor provides flexibility for product structure design, while stable performance ensures reliable operation in various scenarios.

Reliability & Performance

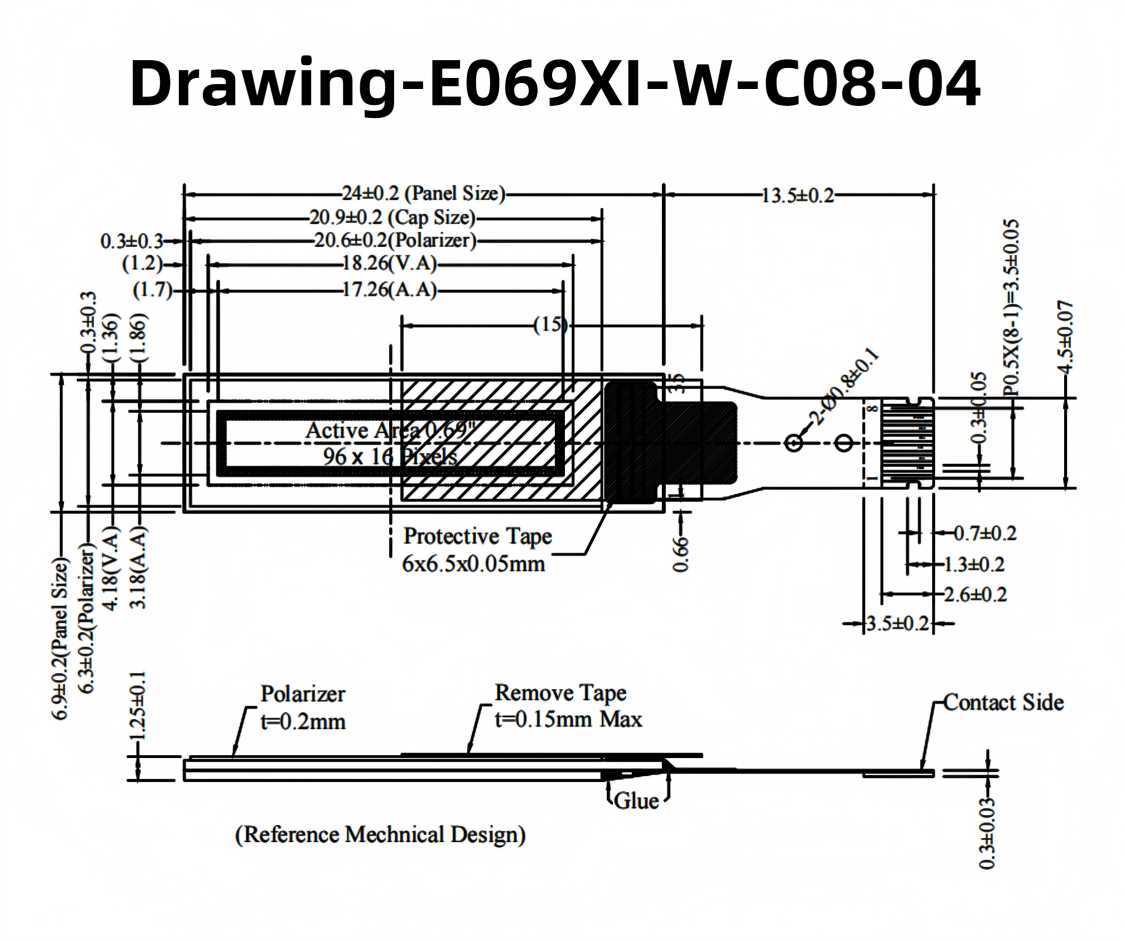

This module adopts a robust passive matrix design and undergoes strict quality control, ensuring long-term stable operation without performance degradation. Its wide temperature adaptability and precise mechanical dimensions (matching the annexed outline drawing) make it a reliable choice for small-screen display needs, with low integration failure risk.
