GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
Specifications
Brand Name :
YZY
Model Number :
YOK0096MGB-J1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
5 pieces
Price :
$1.49~2.99/pieces
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
14-60 days
Packaging Details :
5*5*3
Description
0.96 Inch 128x64 Dot Matrix OLED Module SSD1315 COG I2C 3.3V
This industrial grade 0.96-inch OLED module adopts passive matrix technology and advanced COG (Chip On Glass) packaging design, driven by SSD1315 professional driver IC. It features 3.3V logic operating voltage (VDD), dual display supply voltage options (12.0V external/7.25V internal DC/DC), 128×64 dot matrix resolution, I2C (IIC) serial interface, and excellent wide temperature adaptation range (-40~85℃ operating/storage), with compact outline dimension (24.7mm×27mm×11.3mm Max), high contrast ratio (2000:1), stable performance and long service life, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and reliability requirements.
Product Specifications
Display Type Positive Monochrome Passive Matrix OLED Module
Module Model YOK0096MGB-J1
Part Number GME096NWBY-B-49
Resolution 128 × 64 Dots
Driver IC SSD1315
Drive Mode 1/64 Duty
Viewing Direction 6 O'clock
Logic Operating Voltage (VDD) 1.65V ~ 3.3V DC (Typ: 2.8V)
Display Supply Voltage (VCC) 11.5V ~ 12.5V DC (external); 7.0V ~ 7.5V DC (internal DC/DC)
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 4PIN (GND: Logic Ground, VDD: Logic Power, SCK: Serial Clock, SDA: Serial Data)
Operating Temperature -40℃ ~ +85℃ (Wide Temperature)
Storage Temperature -40℃ ~ +85℃
Connection Type COG (Chip On Glass)
Outline Dimension 24.7mm(L)×27mm(W)×11.3mm(T, Max)
Viewing Area (V/A) 22.74mm(L) × 11.86mm(W)
Active Area (A/A) 21.74mm(L) × 10.86mm(W)
Dot Pitch 0.154mm(W) × 0.154mm(H)
Dot Size 0.17mm(W) × 0.17mm(H)
Brightness 80~100 cd/m² (external VCC); 50~60 cd/m² (internal DC/DC)
Dark Room Contrast 2000:1 (Typ)
Viewing Angle Full Viewing Angle
Operating Current (VDD) 180μA ~ 300μA (Typ: 180μA)
Sleep Mode Current VDD: 1μA ~ 5μA; VCC: 2μA ~ 10μA
RoHS Compliance Yes
Product Features
  • 0.96-inch compact size with 128×64 dot matrix resolution, clear monochrome display and 2000:1 high contrast ratio for sharp visual effects
  • Advanced COG packaging design, 24.7×27×11.3mm ultra-compact outline, perfect for space-constrained embedded applications
  • SSD1315 dedicated driver chip with 1/64 duty driving scheme, strong anti-interference performance and stable long-term operation
  • I2C (IIC) serial interface with 4-pin simplified design, easy circuit connection and high compatibility with various control systems
  • Dual display voltage options (external 12V/internal 7.25V DC/DC), flexible adaptation to different power supply scenarios
  • Extreme wide temperature range (-40~85℃ operating/storage), reliable performance in harsh industrial and outdoor environments
  • Precise mechanical parameters (0.154mm dot pitch, 0.17mm dot size), ensuring stable assembly and consistent product quality
  • Low power consumption design, sleep mode current as low as 1μA, ideal for battery-powered portable devices
  • Long service life: 50,000 hours at 60cd/m², 30,000 hours at 80cd/m², reducing replacement frequency and maintenance costs
  • RoHS compliant, meeting international environmental protection standards for global market access
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Portable measuring instruments and precision electronic meters
  • Small handheld smart devices and wearable electronic products
  • Embedded system display modules and IoT terminal devices
  • Automotive electronic auxiliary display components and vehicle-mounted small displays
  • Smart home appliance control panels and mini display screens
  • Medical portable devices and health monitoring equipment
  • Consumer electronics and battery-powered display products
  • Test and measurement instruments and industrial detection devices

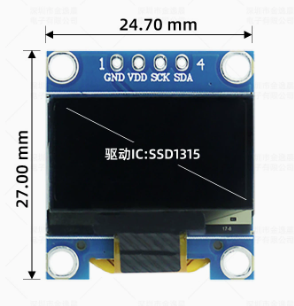

Product Image
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
Product Application
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
Cooperative Partner
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping, including reliability tests (high/low temperature operation, thermal shock, humidity resistance) and functional verification, complying with AQL standard (Critical Defect=0.1, Major Defect=0.65, Minor Defect=2.5) to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation. You can order 1 piece as a sample to test compatibility and performance before bulk purchase.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. For bulk orders or custom requirements, delivery time may vary and will be confirmed in advance.
What is the minimum order quantity?
1 piece minimum order quantity, supporting both sample testing and small-batch procurement.
What if we receive missing or defective items?
Please contact us immediately with order number and product photos/videos. We will investigate promptly and provide solutions such as replacement, refund or repair according to the situation.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, as well as other secure payment methods for bulk orders. Contact our sales team for more details.
What shipping methods do you offer?
DHL and China Post shipping services available. For urgent orders, DHL is recommended for fast delivery (3-5 working days to major countries); for cost-saving needs, China Post is a reliable option.
