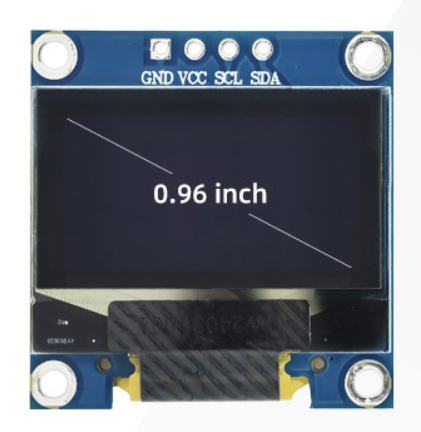

128x64 I2C OLED Display Module 0.96" SSD1306 COG White GME096WBY-B-467
This industrial grade 0.96-inch white OLED module adopts advanced COG (Chip On Glass) packaging design, driven by the classic SSD1306 professional driver IC. It features 128×64 high-resolution dot matrix, full-viewing direction display, I2C (IIC) 4-pin simple interface, 1.65~3.3V logic operating voltage, and excellent temperature adaptation range (-20~70℃ operating, -30~80℃ storage). With a compact outline dimension of 27.5mm(W)×27.8mm(H)×11.3mm(T) and ultra-light weight of only 3.7g, it has low power consumption (typical ICC 430μA, IDD 50μA), stable performance and long service life (12000 hours at 100cd/m²), widely applied in portable electronics, smart devices, measuring instruments, embedded display systems and various small terminal devices with strict space and power requirements.
Product Specifications
Display Type Monochrome White OLED Module (COG Packaging)
Module Model YOK0096MGB-J2
Part Number GME096WBY-B-467
Display Size (Diagonal) 0.96 Inch
Resolution 128 × 64 Pixels
Driver IC SSD1306
Drive Mode 1/64 Duty
Viewing Direction ALL (Full Viewing Angle)
Display Color White
Logic Operating Voltage (VDD) 1.65V ~ 3.3V DC
Display Supply Voltage (VCC) 7V ~ 15V DC
Interface Type I2C (IIC) Serial Interface
Pin Number & Function 4PIN (1-GND, 2-VDD, 3-SCL, 4-SDA)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection/IC Package Type COG (Chip On Glass)
Module Size (W×H×T) 27.5mm × 27.8mm × 11.3mm
Active Area 21.74mm(W) × 11.175mm(H)
Pixel Pitch 0.170mm(W) × 0.175mm(H)
Pixel Size 0.15mm(W) × 0.15mm(H)
Operating Luminance 80~100 cd/m² (Typ:100 cd/m²)
Operating Current VCC (ICC): 430μA(Typ)/780μA(Max); VDD (IDD):50μA(Typ)/150μA(Max)
Service Life 12000 Hours (at 100 cd/m², 50% Checkerboard)
Module Weight 3.7g
RoHS Compliance Yes
Product Features
  • 0.96-inch compact size with 128×64 high-resolution dot matrix, clear white monochrome display effect for clear information presentation
  • Classic SSD1306 driver IC, mature and stable performance, strong compatibility, easy secondary development and drive matching
  • Advanced COG packaging design, ultra-light weight of only 3.7g, 27.5×27.8×11.3mm compact dimension, perfect for space-constrained small devices
  • Full viewing angle (ALL) display design, clear and unobstructed viewing from any direction, no visual dead angle
  • I2C (IIC) 4-pin simplified interface (GND/VDD/SCL/SDA), simple circuit connection, low wiring difficulty and high integration
  • Low power consumption performance, typical VCC supply current 430μA and VDD 50μA, ideal for battery-powered portable electronic devices
  • Stable temperature adaptation, -20~70℃ operating temperature and -30~80℃ storage temperature, reliable work in various complex environments
  • High brightness up to 100cd/m², clear display even in bright light, 12000 hours long service life at standard brightness
  • Precise pixel parameters (0.170mm pitch, 0.15mm size), ensuring uniform display and high-quality visual effect
  • RoHS compliant, meeting international environmental protection standards, suitable for global market application and mass production
Product Applications
  • Portable measuring instruments and precision electronic meters (multimeters, thermometers, hygrometers)
  • Small handheld smart devices and wearable electronics (smart bracelets, fitness trackers, portable detectors)
  • Embedded system display modules and IoT terminal devices (sensor nodes, smart home sensors)
  • Industrial control auxiliary display and small operation panels
  • Automotive electronic small displays and vehicle-mounted auxiliary monitoring devices
  • Smart home appliance control panels and mini display screens (small air conditioners, smart sockets)
  • Medical portable small devices and health monitoring equipment
  • Consumer electronics and battery-powered small display products (MP3, small audio players)
Dimension Drawing
128x64 I2C OLED Display Module 0.96
Product Application
128x64 I2C OLED Display Module 0.96
Cooperative Partner
128x64 I2C OLED Display Module 0.96
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each module undergoes strict reliability testing including high/low temperature operation, high humidity storage, thermal cycling and functional verification before shipping, and complies with strict quality standards to ensure stable performance and reliable use of each product.
Do you supply samples?
Yes, we provide samples for evaluation, supporting 1 piece minimum order for sample testing to verify compatibility and performance before bulk purchase.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. For bulk custom orders, the delivery time will be confirmed in advance according to the order quantity.
What is the minimum order quantity?
1 piece minimum order quantity, supporting both sample testing and small-batch procurement, and providing favorable prices for large-batch orders.
What if we receive missing or defective items?
Please contact us immediately with your order number and clear product photos/videos of the problem. We will investigate the issue promptly and provide solutions such as free replacement, full refund or on-site maintenance according to the actual situation.
What are your main products?
Comprehensive range including various size OLED modules, LCD modules (LCM), touch modules, LCD panels, FPC boards and optoelectronic materials, as well as Raspberry Pi development boards, NVIDIA, micro:bit, Arduino and other brand development boards and accessories.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, and we also support other secure payment methods for large-batch orders. Please contact our sales team for detailed payment information.
What shipping methods do you offer?
We provide DHL for urgent express delivery (3-5 working days to major countries) and China Post for cost-saving shipping. We will choose the most suitable shipping method according to your order quantity and delivery address.
