Specifications
Brand Name :
YZY
Model Number :
EB154-30-04-WB
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
1000 pieces
Price :
$7.99~12.99/pieces
Payment Terms :
T/T
Supply Ability :
10000 Pieces
Delivery Time :
14-60 days
Packaging Details :
16*12*8
Description
1.54-inch OLED Display Module with 64x128 Resolution and I2C Interface
High-performance 1.54-inch OLED module featuring 64×128 resolution with I2C interface and white monochrome display. Equipped with SSD1317 driver IC for clear, sharp visuals with excellent stability and low power consumption.
Key Specifications
Product 1.54 inch OLED Module Number EB154-30-04-WB
Resolution 64(H)×128(V) dots Color White
Panel Size (W×H) 21.51 mm × 42.54 mm Polarizer Size (W×H) 20.91 mm × 38.64 mm
Active Area 17.51 mm × 35.04 mm Viewing Area 19.51 mm × 37.04 mm
Interface I2C Operating Temperature -20℃ to +70℃
Driver IC SSD1317 Storage Temperature -30℃ to +80℃
PCB Size (W×H) 22.35 mm × 46.74 mm PCB Thickness 1.2 mm
Pin Pitch 2.54 mm RoHS Compliance YES
Product Highlights
1.54-inch OLED display, 64×128 resolution, I2C interface, SSD1317 driver IC, white monochrome display, wide temperature range (-20~70℃), RoHS compliant, compact PCB design, stable performance, low power consumption, easy integration with mainstream MCUs.
Technical Features
  • I2C interface support for simple wiring and stable data transmission
  • Optimal 1.54-inch size with 64×128 resolution for compact devices
  • Wide operating temperature range (-20℃ to +70℃) for various environments
  • RoHS compliant, meeting international environmental standards
  • SSD1317 driver IC ensuring reliable performance and low power consumption
  • Precision manufacturing with strict tolerance control (±0.1mm)
  • 1.2mm thick PCB for structural stability
  • Standard 2.54mm pin pitch for easy soldering and compatibility
Electrical Specifications
Key power supply pins: VCC (Power Supply), GND (Ground)
Data transmission pins: SCL (Serial Clock), SDA (Serial Data) for I2C communication
Low power consumption design ideal for battery-powered portable devices

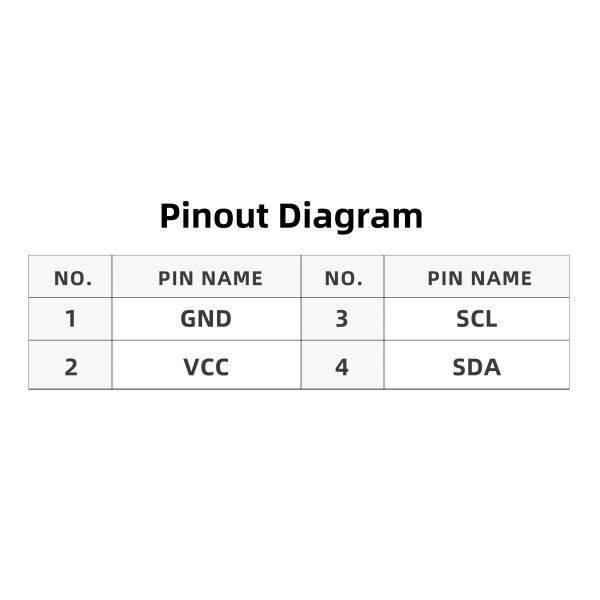

Pin Definition
PIN Symbol Description
1 GND Ground Pin; Reference for all voltage signals
2 VCC Power Supply Pin; Provides power for module operation
3 SCL I2C Serial Clock Pin; Provides clock signal for data synchronization
4 SDA I2C Serial Data Pin; Transmits bidirectional data
Application Scenarios
  • Smart wearables (smart watches, fitness trackers, health monitors)
  • Portable electronic devices (handheld meters, mini data loggers)
  • IoT terminals and smart sensors (environmental monitors, smart home sensors)
  • Industrial control systems (compact PLC panels, sensor data displays)
  • Small consumer electronics (portable audio players, miniature remote controls)
  • Automotive electronics (in-vehicle displays, secondary control panels)
  • Medical devices (portable medical monitors, health testing tools)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays)

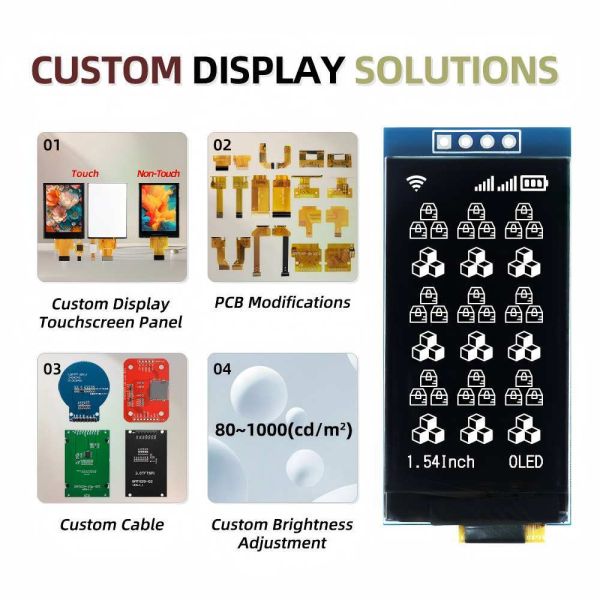

Customization Options
  • Interface Optimization: I2C address adjustment and communication parameter customization
  • PCB Customization: PCB size, shape and pin layout adjustments
  • Polarizer Customization: Anti-glare, wide-view polarizer options
  • Packaging Solution: Custom anti-static packaging with desiccant
  • Warranty Extension: Extended warranty options (18~24 months) for bulk orders
  • Labeling Service: Custom part number or logo printing on PCB
Handling Notes
  • Electrostatic Protection: Use anti-static bracelets and grounded tools during handling
  • Cleaning Instructions: Clean with soft cotton cloth soaked in isopropyl alcohol (IPA)
  • Storage Conditions: Store in anti-static containers at 23±5℃, humidity ≤45±20%RH
  • Operation Precautions: Follow correct power-on and power-off sequences
  • Soldering Tips: Welding temperature: 320~350℃; Welding time: ≤10 seconds per pin
  • Mechanical Protection: Avoid crushing, shaking or applying excessive force
