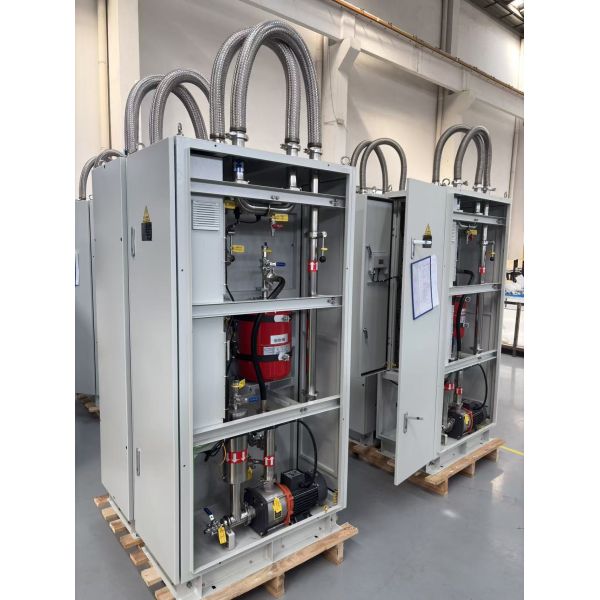

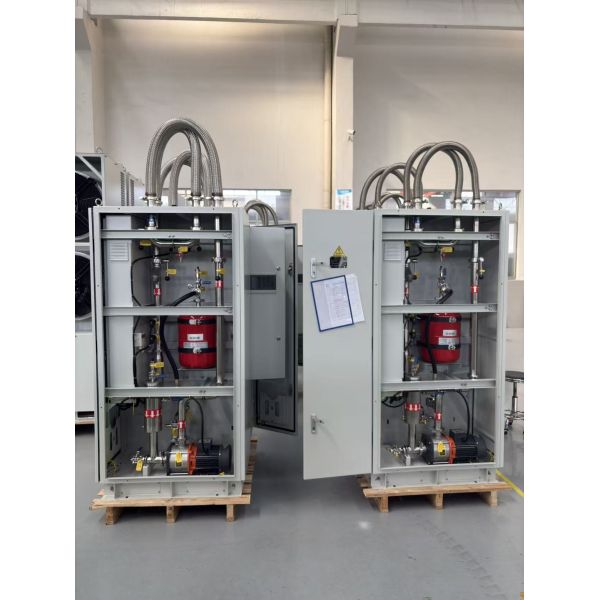

Wind And Solar Power Generation 85KW Water Cooling System Corrosion Resistant
Wind And Solar Power Generation 85KW Water Cooling System Corrosion Resistant
Wind And Solar Power Generation 85KW Water Cooling System Corrosion Resistant
Wind And Solar Power Generation 85KW Water Cooling System Corrosion Resistant
Wind And Solar Power Generation 85KW Water Cooling System Corrosion Resistant
Wind And Solar Power Generation 85KW Water Cooling System Corrosion Resistant
Specifications
Brand Name :
YUDA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Certification :
CE ISO9001
Place of Origin :
China
Model Number :
LSF-85kw
Application Industry :
New Energy Wind Power Solar Power Generation
Cooling Capacity :
85 KW
Cooling Method :
Closed Loop Water Cooling System
Cooling Medium :
Deionized Water or Water Glycol Mixture
Rated Flow Rate :
30 to 120 L per minute
Heat Exchange Type :
High Efficiency Plate Heat Exchanger
Main Material :
Industrial Grade Aluminum
Optional Material :
Stainless Steel
Control Method :
Intelligent Temperature Control
Power Supply :
AC 380V 50 Hz or Customized
Description
Corrosion-Resistant Material and Water Compliance Power Electronics Water Cooling System
A high-performance closed-circuit water cooling system designed for wind and solar power generation applications, featuring corrosion-resistant materials and compliance with strict water quality requirements.
Key Features
  • Modular design with exhaust and drain valves for easy maintenance
  • Comprehensive system includes main circulating pump, electric three-way valve, filter, heater, expansion tank, and air cooler
  • Advanced temperature and pressure monitoring with independent operation capability
  • Remote control support via terminal and serial port communication
  • Constructed with stainless steel, aluminum alloy, and EPDM materials for corrosion resistance
  • Designed for harsh environments including cold, wind/sand, and salt fog conditions
  • Special corrosion protection solutions for offshore and marine platform applications
Technical Specifications
Parameter Value
Heat dissipation power range 10-200kW
Cooling medium flow range 3-20m³/h
Temperature difference (inlet vs ambient) ≥5℃
Cooling medium Pure water and ethylene glycol antifreeze
Antifreeze concentration 0-55%
System static pressure 0.15MPa
Design pressure 0.8MPa
Operating Conditions
Parameter Value
Storage environment relative humidity ≤95%
Operating environment temperature -40℃~40℃
Operating environment relative humidity ≤95%
Altitude ≤3000m
Power supply AC380V ±10%, 50 ±1Hz
Applications
Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.
