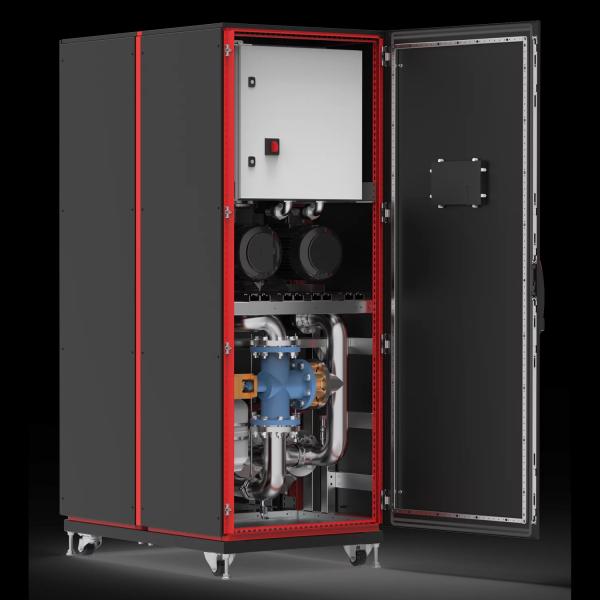

Railway Grade Closed Type Liquid Cooling Systems With 10–90kW Heat Dissipation
Railway Grade Closed Type Liquid Cooling Systems With 10–90kW Heat Dissipation
Specifications
Brand Name :
YUDA
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Application Field :
Industrial and Railway cooling systems
System Grade :
Railway Grade
Power supply :
5v1a,DC 5V,external AC-DC power adapter,DC52V (48~57V) /Terminal block,3.3V
Material :
metal,Iron case,Cold Rolled Steel,Aluminum
Transmission distance :
20KM,20km;40km;60km;80km
Cooling Medium Flow Rate :
10 to 170 L per minute
Control Method :
Intelligent temperature and flow control
Fiber port :
Simplex SC,SM SC,duplex SC or FC,8 TX/RX SC Port
System Structure :
Fully sealed closed loop circulation
Working temperature :
-45~85℃,0°C~50°C,-30 ℃~+70 ℃
Description
Railway Grade Closed-Type Water Cooling System with 10–90 kW Heat Dissipation and 10–170 L/min Flow for Industrial Cooling Applications
Filter Expansion Tank Plate Heat Exchanger Closed-Type Water Cooling System. Designed specifically for railway and industrial cooling applications, this Railway Grade Closed Type Water Cooling System delivers stable heat dissipation from 10 to 90 kW with a cooling medium flow range of 10 to 170 L per minute, ensuring reliable thermal control under harsh operating conditions. Its fully closed loop structure protects the cooling circuit from external contamination, supports continuous operation, and meets the high durability and safety requirements of railway grade equipment in demanding industrial environments.
Technical Specifications
  • Frame-cabinet design with strategically placed exhaust and drain valves for easy maintenance
  • Comprehensive system includes main circulating pump, electric three-way valve, filter, expansion tank, plate heat exchanger, and control system
  • Advanced temperature and pressure monitoring with both independent operation and remote control capabilities via terminal or serial port communication
  • Engineered for stability across various working conditions with optimized heat dissipation
  • Constructed with stainless steel and purple copper components for compatibility with deionized water cooling medium
Performance Metrics
Heat dissipation power range 10-90 kW
Cooling medium flow range 10-170 L/min
Temperature difference range ≥5℃ between inlet temperature of cooled device and inlet water temperature
Cooling medium Deionized water (external cooling: industrial circulating water)
System static pressure 0.15 MPa
Design pressure 1.0 MPa
Test pressure 1.0 MPa
PH external water coolant 6-9
Key Advantages
The primary advantage of this system lies in its railway grade structural reliability, ensuring stable performance under continuous operation and dynamic load conditions. The closed loop design minimizes water loss and protects internal components from external pollution, significantly extending service life. With a wide cooling medium flow range of 10 to 170 L per minute, the system adapts easily to different industrial and railway cooling demands. Its efficient heat dissipation capacity supports high power equipment while maintaining consistent temperature control. Low noise operation, compact installation, and simplified maintenance further enhance its competitiveness in railway and industrial applications.
Global Market
With proven performance, high adaptability, and compliance with international railway and industrial cooling standards, this Railway Grade Closed Type Water Cooling System is designed to serve the global market, supporting railway infrastructure projects and industrial cooling applications worldwide.
