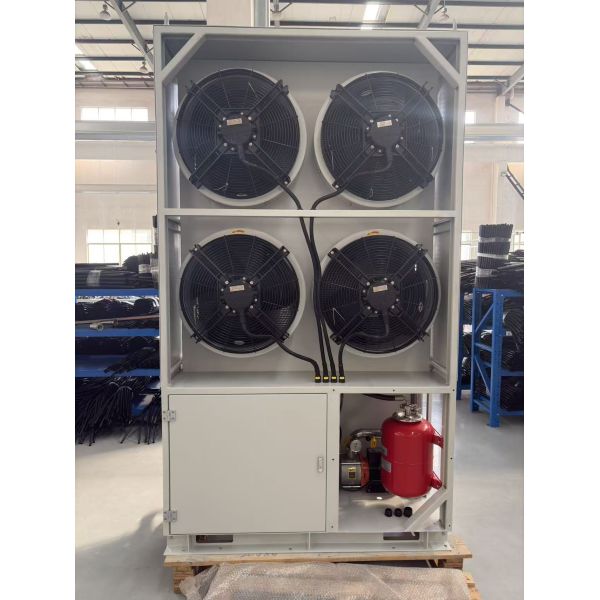

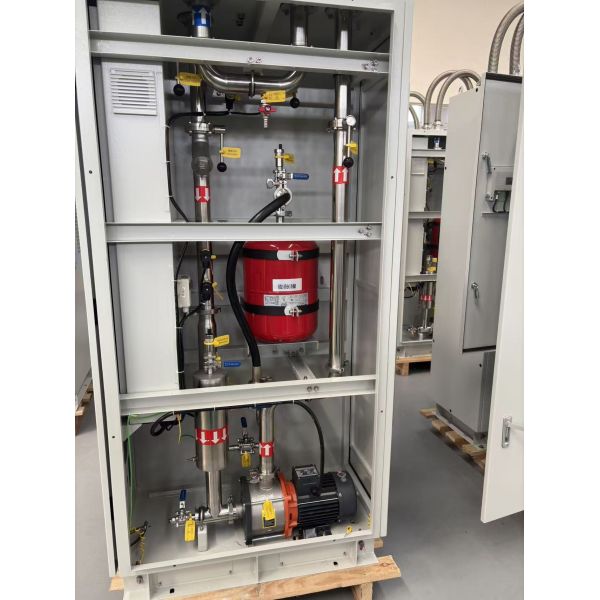

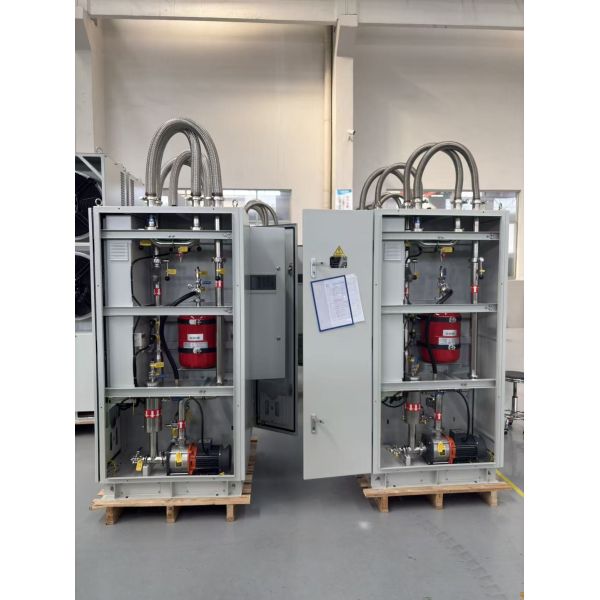

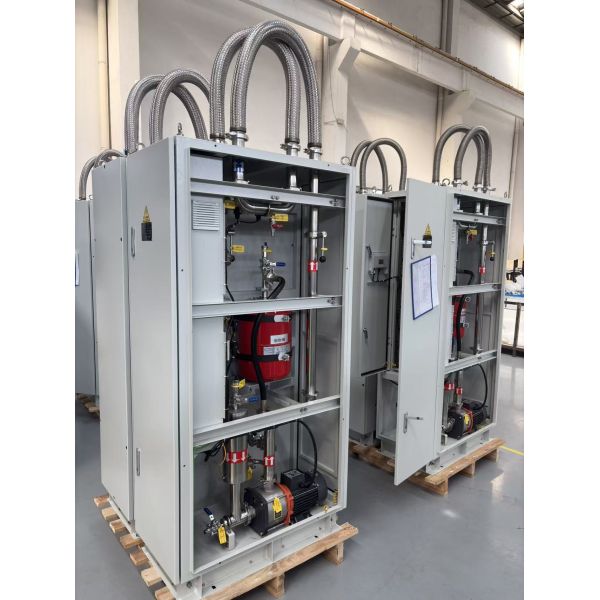

85KW Data Centre Grade Water Cooling System For New Energy Wind Solar Power Generation
85KW Data Centre Grade Water Cooling System For New Energy Wind Solar Power Generation
Specifications
Brand Name :
YUDA
Model Number :
LSF-85kw
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Application Industry :
New Energy Wind Power Solar Power Generation
Antifreeze concentration :
0-55%
Cooling Method :
Closed Loop Water Cooling System
System static pressure :
0.15MPa
Rated Flow Rate :
30 to 120 L per minute
Heat Exchange Type :
High Efficiency Plate Heat Exchanger
Main Material :
Industrial Grade Aluminum
Cooling medium flow range :
3-20m³/h
Heat dissipation power range :
10-200kW
Power Supply :
AC 380V 50 Hz or Customized
Description
85KW Data Centre Grade Water Cooling System for New Energy Wind and Solar Power Generation
Corrosion-Resistant Material and Water Compliance Power Electronics Water Cooling System
A high-performance closed-circuit water cooling system designed for wind and solar power generation applications, featuring corrosion-resistant materials and compliance with strict water quality requirements.
Key Features
  • Data Centre Grade Thermal Performance - Designed to meet strict Data Centre standards, delivering stable and continuous cooling for high-density power electronics and critical infrastructure.
  • 85KW High Heat Dissipation Capacity - Provides up to 85KW cooling capacity, ensuring efficient temperature control for wind power, solar power, and Data Centre energy systems.
  • Advanced Closed-Loop Water Cooling Design - Sealed circulation system minimizes water loss, reduces contamination risk, and improves long-term operational reliability.
  • Energy Efficient Operation for New Energy Applications - Optimized for New Energy environments, helping reduce overall power consumption while maintaining high cooling efficiency.
  • Wide Operating Temperature Range - Reliable performance in harsh climates, suitable for outdoor renewable energy projects and Data Centre installations worldwide.
  • Intelligent Temperature Control System - Integrated PLC-based control enables real-time monitoring, automatic adjustment, and system protection for safe operation.
  • Industrial Grade Durability and Low Maintenance - Built with corrosion-resistant materials and high-quality components to ensure long service life and reduced maintenance costs.
Technical Specifications
Parameter Specification
Rated Cooling Capacity 85 kW
Rated Power Supply 380 to 415 V AC 3 Phase 50 or 60 Hz
Water Flow Rate 120 to 160 L per minute
Inlet Water Temperature 20 to 35 degrees Celsius
Outlet Water Temperature 30 to 45 degrees Celsius
System Working Pressure 0.3 to 0.6 MPa
Temperature Control Accuracy Plus or minus 1 degree Celsius
Operating Conditions
Parameter Value
Storage environment relative humidity ≤95%
Operating environment temperature -40℃~40℃
Operating environment relative humidity ≤95%
Altitude ≤3000m
Power supply AC380V ±10%, 50 ±1Hz
Applications
Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.
85KW Data Centre Grade Water Cooling System For New Energy Wind Solar Power Generation
85KW Data Centre Grade Water Cooling System For New Energy Wind Solar Power Generation
85KW Data Centre Grade Water Cooling System For New Energy Wind Solar Power Generation
