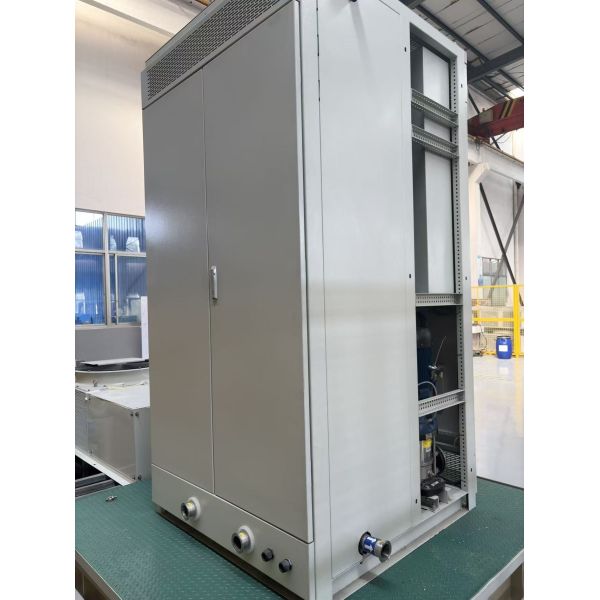

Data Centre Grade Closed Type Water Cooling System With 10–90kw Heat Dissipation
Data Centre Grade Closed Type Water Cooling System With 10–90kw Heat Dissipation
Specifications
Brand Name :
YUDA
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Installation Type :
Modular floor-mounted or rack-integrated
Control Method :
Intelligent temperature and flow regulation
Application :
High performance server cooling and data centre thermal management
Material :
metal,Iron case,Cold Rolled Steel,Aluminum
Transmission distance :
20KM,20km;40km;60km;80km
Temperature Difference :
≥ 5°C
Cooling Method :
Closed-loop water circulation with plate heat exchanger
Fiber port :
Simplex SC,SM SC,duplex SC or FC,8 TX/RX SC Port
Safety Features :
Over-temperature protection, leak prevention
Working temperature :
-45~85℃,0°C~50°C,-30 ℃~+70 ℃
Description
Data Centre Grade Closed-Type Water Cooling System with 10–90 kW Heat Dissipation and 10–170 L/min Flow for High Performance Server Cooling
This advanced closed-type water cooling system is specifically engineered for data centre high-performance server cooling, integrating filter, expansion tank, and plate heat exchanger components to ensure stable and efficient thermal management.
System Overview
The fully closed loop design provides reliable heat dissipation from 10 to 90 kW with a cooling medium flow range of 10 to 170 L per minute, maintaining optimal temperature control for critical server infrastructure. Its robust construction, contamination-free operation, and precise temperature regulation make it ideal for continuous operation in demanding data centre environments.
Technical Specifications
Parameter Specification
Heat dissipation power range 10-90 kW
Cooling medium flow range 10-170 L/min
Temperature difference range ≥5℃ between inlet temperature of cooled device and inlet water temperature
Cooling medium Deionized water (external cooling: industrial circulating water)
System static pressure 0.15 MPa
Design pressure 1.0 MPa
Test pressure 1.0 MPa
PH external water coolant 6-9
System Components
  • Frame-cabinet design with strategically placed exhaust and drain valves for easy maintenance
  • Comprehensive system includes main circulating pump, electric three-way valve, filter, expansion tank, plate heat exchanger, and control system
  • Advanced temperature and pressure monitoring with both independent operation and remote control capabilities via terminal or serial port communication
  • Engineered for stability across various working conditions with optimized heat dissipation
  • Constructed with stainless steel and purple copper components for compatibility with deionized water cooling medium
Key Features
  • Engineered for data centre environments, delivering 10-90 kW heat dissipation for high load server cooling
  • Fully closed loop design with integrated filter, expansion tank, and plate heat exchanger ensures contamination-free operation
  • Flexible cooling medium flow from 10-170 L/min provides stable, efficient cooling for diverse data centre applications
Global Market Applications

With its reliable performance, closed loop structure, and efficient cooling range, this Data Centre Grade Closed-Type Water Cooling System is ideal for deployment in data centres worldwide. It supports high heat loads, ensures stable operation of critical IT infrastructure, and delivers consistent, contamination-free cooling. Trusted by operators globally, this system is engineered to meet the demanding requirements of modern data centre facilities across different regions, providing reliable and long-term performance for server and IT equipment cooling.
