48x48 Analog Panel Ammeter and Voltmeter
48x48 Analog Panel Ammeter and Voltmeter
48x48 Analog Panel Ammeter and Voltmeter
48x48 Analog Panel Ammeter and Voltmeter
48x48 Analog Panel Ammeter and Voltmeter
48x48 Analog Panel Ammeter and Voltmeter
Specifications
Accuracy Class :
2.0
Display Type :
Analog Only
Supply Voltage :
220/110V
Model Number :
TP-48 DC A
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
48x48mm
Operating Temperature :
0-40℃
Measuring Range :
>0.5A
HS Code :
90283090
Case Material :
ABS
Base Material :
PPO
Meter Supporter :
Al, Ni,Co
Moving Coil :
Fuji Line
Pointer Material :
Cu/Al
Inner connection Line :
line
Screw :
Cu
Dial :
Al scale
Soldering :
ROHS solde wire
MOQ :
100
Price :
$4.60-6.90 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

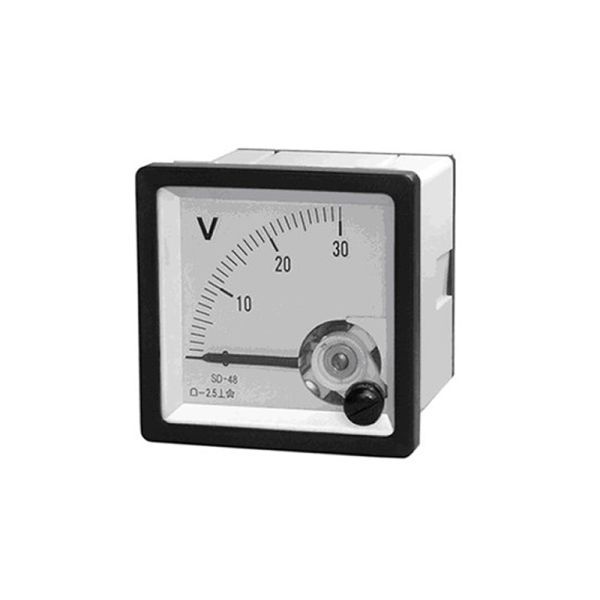

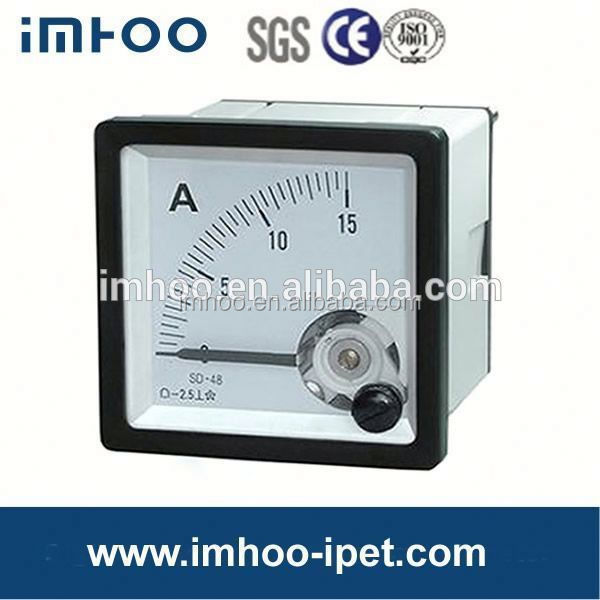

48x48 Analog Panel Ammeter and Voltmeter
High-quality analog panel meters designed for precise electrical measurement in industrial applications. These instruments feature durable construction and reliable performance.
Construction & Materials
The square type series features an external case made from non-combustible ABS plastic with a PPO plastic base. Alternatively, non-combustible PC plastic material can be used for both case and base. Both material options maintain structural integrity without deformation during long-term use at 70°C and 120°C respectively.
Customization Options
IMHOO offers OEM services with customizable parameters including range, changeable scale, waterproof features, and more to meet specific application requirements.
Ammeter Specifications
Type AC Ranges DC Ranges
mA 100mA, 150mA, 200mA, 400mA, 500mA 100mA, 150mA, 200mA, 400mA, 500mA
A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A
With External CT (AC) X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A
X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A		 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
Voltmeter Specifications
Type AC Voltage Ranges DC Voltage Ranges
V 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V
48x48 Analog Panel Ammeter and Voltmeter

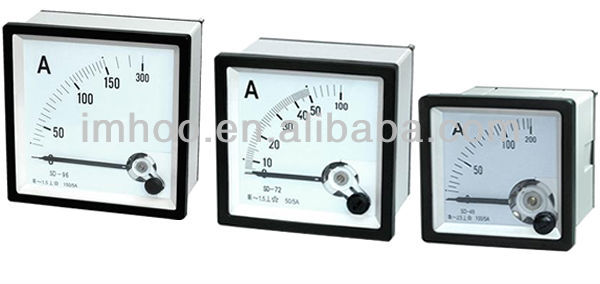

Dimensions (millimeters)
Model Case Dimension Panel Cutout Dimension
TP-96 96.5 x 96.5 x 69.4 91 x 91
TP-72 71.8 x 71.8 x 69.4 67.5 x 67.5
TP-48 48.3 x 48.3 x 69.4 44.2 x 44.2
Specification Selection Guide
Model Moving Coil Moving Iron
TP-96 DC Ammeter: Available, AC/DC Voltmeter: Available AC Ammeter: Available, AC Voltmeter: Available
TP-72 DC Ammeter: Available, AC/DC Voltmeter: Available AC Ammeter: Available, AC Voltmeter: Available
TP-48 DC Ammeter: Available, AC/DC Voltmeter: Available AC Ammeter: Available, AC Voltmeter: Available
48x48 Analog Panel Ammeter and Voltmeter
Packaging & Shipping
Products are carefully packaged to ensure safe delivery. Standard and expedited shipping options available.
48x48 Analog Panel Ammeter and Voltmeter
Company Information
IMHOO specializes in manufacturing high-quality electrical measurement instruments with a commitment to precision and reliability.
48x48 Analog Panel Ammeter and Voltmeter
