Moving Coil DC TP-60 Micro Ammeter
Moving Coil DC TP-60 Micro Ammeter
Moving Coil DC TP-60 Micro Ammeter
Moving Coil DC TP-60 Micro Ammeter
Specifications
Accuracy Class :
2.5
Display Type :
Analog Only
Supply Voltage :
220V
Model Number :
TP-60 DC A
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
60x60mm
Operating Temperature :
0-40
Measuring Range :
50A
HS Code :
90308990
Case material :
PC/PMM
Base Material :
ABS/PC/Bakelite
Meter Supporter :
Al, Ni,Co
Moving Coil :
Fuji Line
Pointer Material :
Cu/Al
Screw :
Cu
Dial :
Al scale
Soldering :
ROHS solde wire
MOQ :
100
Price :
$3.80-4.70 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

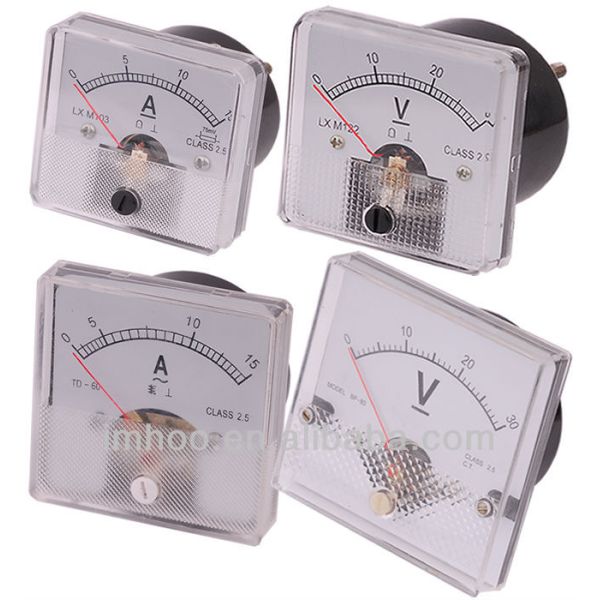

Moving Coil DC TP-60 Micro Ammeter
Precision moving coil DC micro ammeter designed for accurate current measurement applications.
Product Specifications
Case Material: PMMA plastic external case with non-combustible ABS plastic base. Alternative option: Non-combustible PC plastic for both case and base. Both materials maintain structural integrity at 70°C and 120°C respectively without deformation.
OEM Services Available: Customizable ranges, changeable scales, waterproof features, and other modifications to meet specific requirements.
TP Series Ammeter Ranges
Type AC Current (A) DC Current (A)
Microamps (μA) 50μA, 100μA, 150μA, 500μA 50μA, 100μA, 150μA, 500μA
Milliamps (mA) 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA 1mA, 2mA, 5mA, 10mA, 20mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA
Amps (A) 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A 1A, 2A, 3A, 7.5A, 10A, 20A, 30A, 50A
External CT & Shunt Compatibility
Configuration AC Current Ranges DC Current Ranges
X1A with External Shunt 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A (Custom ranges available) 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
X5A with External Shunt 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A (Custom ranges available) -
TP Series Voltmeter Ranges
Type AC Voltage (V) DC Voltage (V)
Voltage Ranges 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V 50mV, 60mV, 75mV, 100mV, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 300V, 400V, 450V, 500V, 600V
Moving Coil DC TP-60 Micro Ammeter
Product Dimensions
Moving Coil DC TP-60 Micro Ammeter
Model Case Dimension (mm) Panel Cutout Dimension (mm)
TP-45 45.2 × 45.2 × 8.5 ø38 cutout
TP-50 51 × 51 × 13 ø45.5 cutout
TP-60 60 × 60 × 14 ø51 cutout
TP-80 81.3 × 81.3 × 16 ø64 cutout
Packaging & Shipping
Moving Coil DC TP-60 Micro Ammeter Moving Coil DC TP-60 Micro Ammeter
Our Services
  • High Quality, Competitive Pricing - Superior products at better prices
  • Reliable Delivery - Committed to on-time delivery as promised to customers
  • Quality Assurance - Replacement of any quality issues upon customer verification
  • OEM Services - Custom manufacturing and branding options
  • Custom Development - Research and development of new products based on customer requirements
