Specifications
Accuracy Class :
2.5
Measuring Range :
0-50V
Model Number :
TP-96 DCV
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
96x96mm
Display Type :
Analog Only
Operating Temperature :
-20~50℃
HS Code :
9028309000
Outer Carton Size :
54x38x43cm
Standard Package :
100pcs/CTN
N.W. :
21KG
G.W. :
23KG
MOQ :
100
Price :
$3.80-5.40 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

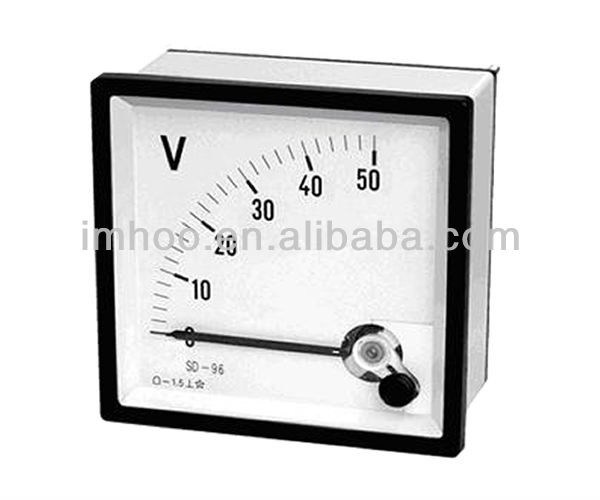

Voltmeter Analog Panel Mount Meter DC 96×96 0-50V
Professional analog panel mount voltmeter designed for precise DC voltage measurement with a range of 0-50V. Features a compact 96×96mm form factor suitable for industrial control panels and electrical systems.
Product Construction
  • Case Material: Non-combustible ABS plastic for external case with PPO plastic base
  • Alternative Option: Non-combustible PC plastic material available for both case and base
  • Temperature Resistance: Maintains structural integrity at 70°C and 120°C respectively
Customization Available: IMHOO supports OEM services including custom ranges, changeable scales, waterproof designs, and other specialized requirements.
Technical Specifications
TP Series Ammeter Specifications
Type AC Ranges DC Ranges
mA 100mA, 150mA, 200mA, 400mA, 500mA 100mA, 150mA, 200mA, 400mA, 500mA
A 1A to 100A (multiple ranges) 1A to 100A (multiple ranges)
External CT (AC) 10/1A to 1000/1A (customizable) 50mV, 60mV, 75mV shunts
External Shunt (DC) 10/5A to 1000/5A (customizable) 10A to 3000A (multiple ranges)
TP Series Voltmeter Specifications
Type AC Voltage Ranges DC Voltage Ranges
Voltage 10V to 600V (multiple ranges) 10V to 600V (multiple ranges)
Voltmeter Analog Panel Mount Meter DC 96*96 0-50V Working Principle of Digital Voltmeter Voltmeter Analog Panel Mount Meter DC 96*96 0-50V Working Principle of Digital Voltmeter
Physical Dimensions
Model Case Dimension (mm) Panel Cutout (mm) Additional Dimensions
TP-96 96.5 × 96.5 91 × 91 Height: 69.4mm
TP-72 71.8 × 71.8 67.5 × 67.5 Height: 69.4mm
TP-48 48.3 × 48.3 44.2 × 44.2 Height: 69.4mm
Model Selection Guide
Model Moving Coil Moving Iron Compatibility
TP-96 DC Ammeter & Voltmeter AC Voltmeter AC/DC compatible
TP-72 DC Ammeter & Voltmeter AC Voltmeter AC/DC compatible
TP-48 DC Ammeter & Voltmeter AC Voltmeter AC/DC compatible
