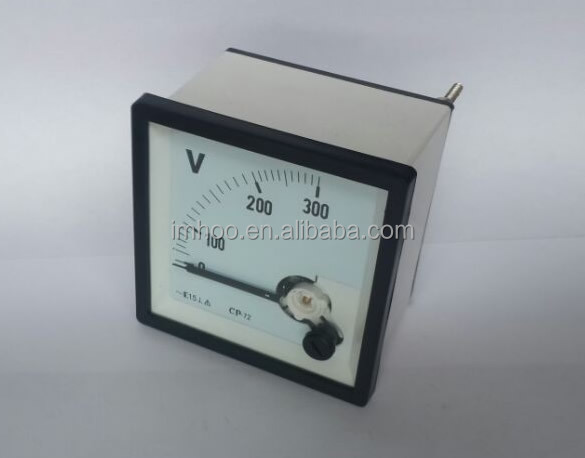

Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Specifications
Accuracy Class :
2.5
Measuring Range :
0-600V
Model Number :
TP-72 ACV
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
72x72mm
Display Type :
Analog Only
Operating Temperature :
-20~50℃
HS Code :
9028309000
Outer Carton Size :
41x35x35cm
Standard Package :
100pcs/CTN
N.W. :
17KG
G.W. :
18KG
MOQ :
100
Price :
$2-5 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
Analog Panel Meter Voltmeter 72x72 AC 300V
Analog Panel Meter Voltmeter 72x72 AC 300V
Case Construction

External case is manufactured from non-combustible ABS plastic material with PPO plastic base, or alternatively non-combustible PC plastic material for both case and base. Both materials maintain structural integrity without deformation under long-term use at 70°C and 120°C respectively.

Custom OEM Services

IMHOO provides OEM customization options including custom ranges, changeable scales, waterproof configurations, and other specialized requirements.

Technical Specifications
TP-96/72/48 Ammeter Ranges
Type AC Current DC Current
mA Ranges 100mA, 150mA, 200mA, 400mA, 500mA 100mA, 150mA, 200mA, 400mA, 500mA
A Ranges 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A
External CT/Shunt Configurations
Type AC with External CT DC with External Shunt
X1A 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A (Custom ranges available) 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
X5A 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A (Custom ranges available) -
TP-96/72/48 Voltmeter Ranges
AC Voltage DC Voltage
10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V
Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V
Physical Dimensions (millimeters)
Model Case Dimension A Case Dimension B Dimension C Dimension D Panel Cutout E Panel Cutout F
TP-96 96.5 96.5 69.4 64 91 91
TP-72 71.8 71.8 69.4 64 67.5 67.5
TP-48 48.3 48.3 69.4 64 44.2 44.2
Model Selection Guide
Model Moving Coil Moving Iron
Ammeter Voltmeter Ammeter Voltmeter
TP-96 - AC/DC AC/DC -
TP-72 - AC/DC AC/DC -
TP-48 - AC/DC AC/DC -
Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V Analog Panel Meter Voltmeter 72x72 AC 300V
