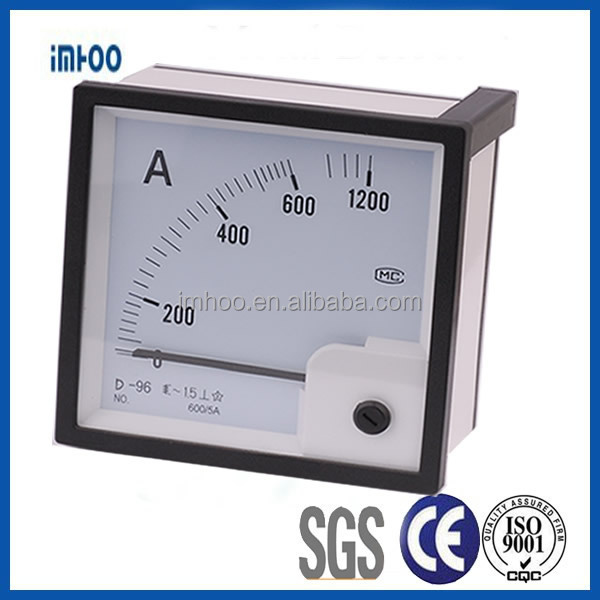

Analog Panel Meter 96x96 Moving Iron AC Ammeter
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Specifications
Accuracy Class :
2.0
Display Type :
Analog Only
Supply Voltage :
220/110V
Model Number :
TP-96 AC A
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
96x96mm
Operating Temperature :
-20-50℃
Measuring Range :
0-100A
HS Code :
9028309000
Case material :
PC/PMM
Base Material :
ABS/PC/Bakelite
Meter Supporter :
Al, Ni,Co
Moving Coil :
Fuji Line
Pointer Material :
Cu/Al
Screw :
Cu
Inner connection Line :
line
Dial :
Al scale
Soldering :
ROHS solde wire
MOQ :
100
Price :
$2-5 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
Analog Panel Meter 96x96 Moving Iron AC Ammeter
High-quality analog panel meters available in 96mm, 72mm, and 48mm square configurations for precise current and voltage measurement applications.
Construction & Materials
Square Type series features non-combustible ABS plastic external cases with PPO plastic bases. Alternatively, non-combustible PC plastic material can be used for both external cases and bases. Both materials maintain structural integrity without deformation during long-term use at 70°C and 120°C respectively.
Customization Options
IMHOO offers OEM services with customizable ranges, changeable scales, waterproof configurations, and other specialized requirements.
Ammeter Specifications
Type AC Ranges DC Ranges
mA 100mA, 150mA, 200mA, 400mA, 500mA 100mA, 150mA, 200mA, 400mA, 500mA
A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A
With External CT (ACA) X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A
X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A		 50mV, 60mV, 75mV: 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
Voltmeter Specifications
AC Voltage Ranges DC Voltage Ranges
10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V
Analog Panel Meter 96x96 Moving Iron AC Ammeter Analog Panel Meter 96x96 Moving Iron AC Ammeter
Dimensions (millimeters)
Model Case Dimension (A) Case Dimension (B) Depth (C) Depth (D) Panel Cutout (E) Panel Cutout (F)
TP-96 96.5 96.5 69.4 64 91 91
TP-72 71.8 71.8 69.4 64 67.5 67.5
TP-48 48.3 48.3 69.4 64 44.2 44.2
Packaging & Shipping
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Our Services
  • High Quality, Competitive Pricing
  • Integrity and On-Time Delivery Commitment
  • Quality Assurance and Replacement Policy
  • OEM Manufacturing Services
  • Custom Research and Development
Analog Panel Meter 96x96 Moving Iron AC Ammeter
Frequently Asked Questions
Are you a factory or trading company?
We are a factory.
Where is your factory located? How can I visit there?
Our factory is located in Wuxi City, Jiangsu Province, China, approximately 1 hour by train from Shanghai. All clients, domestic and international, are warmly welcome to visit us.
How can I get some samples?
We are honored to offer you samples for evaluation.
How does your factory handle quality control?
Quality is our priority. IMHOO maintains rigorous quality control processes from initial production through final inspection to ensure product excellence.
