Analog Panel Meter Ammeter with 2.5 Accuracy Class, 0-1A Measuring Range, and PC Case Material
Analog Panel Meter Ammeter with 2.5 Accuracy Class, 0-1A Measuring Range, and PC Case Material
Specifications
Model Number :
TP-462
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$3-4 / piece
Accuracy Class :
2.5
Display Type :
Analog Only
Dimensions :
46.7X19mm
Operating Temperature :
-20~50Degree
Measuring Range :
0-1A
Case material :
PC
Front material :
PC
HS Code :
85049020
Outer Carton Size :
65x43x42cm
N.W. :
13KG
G.W. :
14.5KG
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

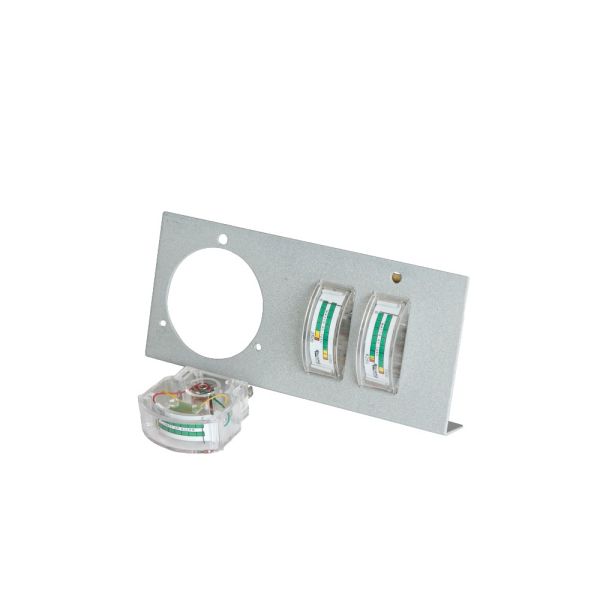

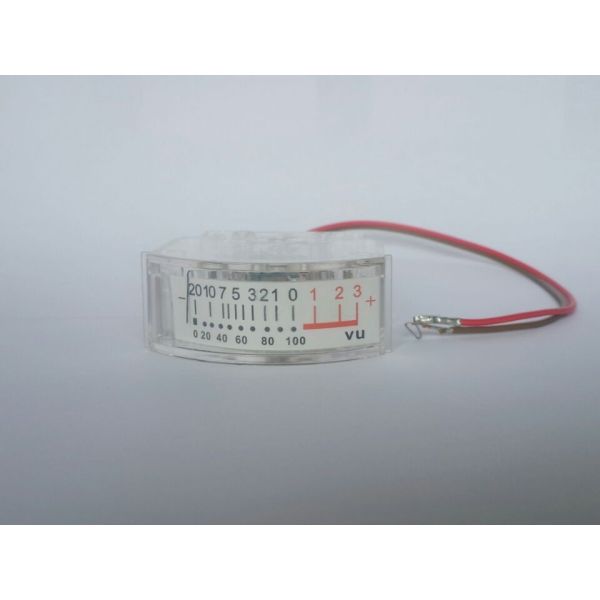

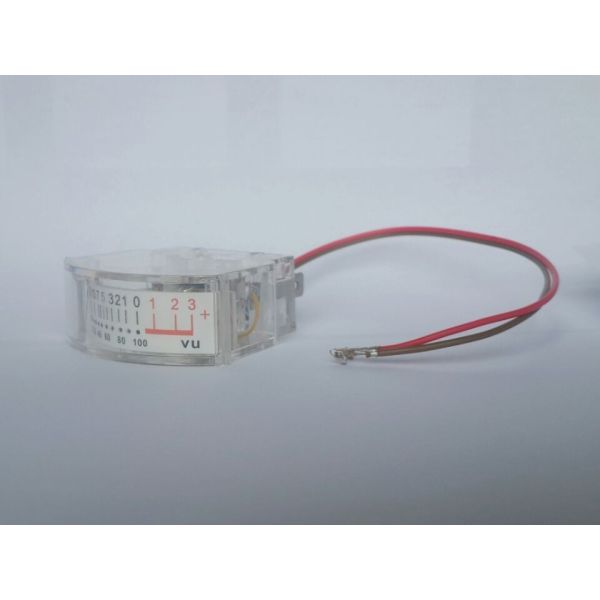

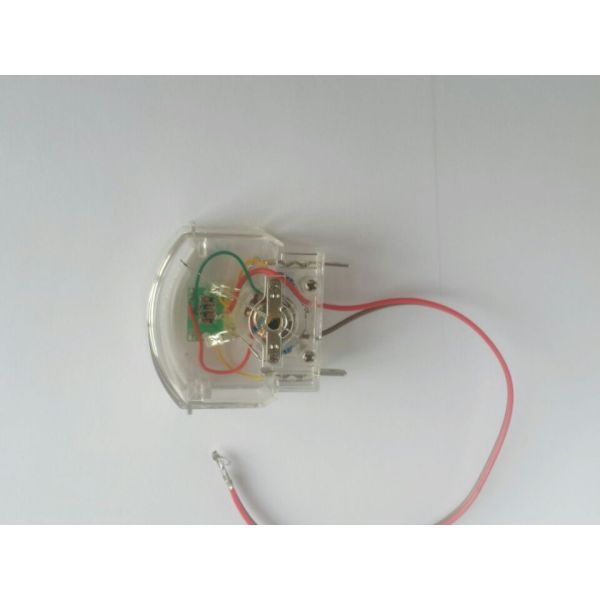

Edgewise Meter Analog Current Panel Meter VU Meter 462
Product Overview
Scale Plate

The standard scale plate is manufactured from alloy-aluminium material. Custom scale plates with special requirements are available upon request, including:

  • Custom colors
  • Scale plates with lighting functions
  • PVC noctilucent (glow-in-the-dark) scales
Pointer

The standard pointer is constructed from alloy-aluminium and typically finished in black. Alternative colors including red and white are available upon request.

Customization & OEM Services

IMHOO provides comprehensive OEM services with extensive customization options including:

  • Custom measurement ranges
  • Changeable scale configurations
  • Waterproof designs
  • And many other specialized requirements
TP-462 Ammeter Specifications
Measurement Type AC Ranges DC Ranges
Microamperes (μA) 250μA, 500μA 250μA, 500μA
Milliamperes (mA) 1mA, 10mA, 50mA, 100mA, 150mA, 200mA, 400mA, 500mA 1mA, 10mA, 50mA, 100mA, 150mA, 200mA, 400mA, 500mA
Amperes (A) 1A, 5A, 10A, 15A, 20A, 25A, 30A 1A, 5A, 10A, 15A, 20A, 25A, 30A
With External CT (AC) X1A: 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A
X5A: 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A
Additional ranges can be customized		 50mV, 60mV, 75mV
With External Shunt (DC) 10A, 15A, 20A, 30A, 40A, 50A, 60A, 100A, 150A, 200A, 250A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 2000A, 2500A, 3000A
