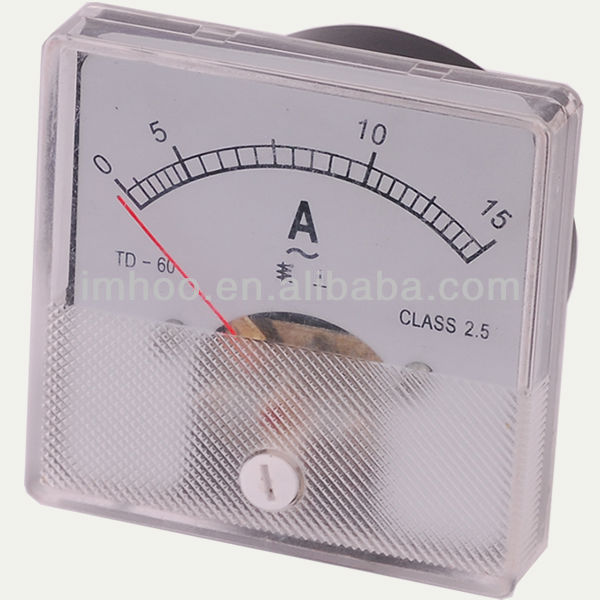

Analog Panel Meter 60×60 AC Ammeter Electrical Voltmeter Gauge
TP-60 Moving Iron AC Ammeter Specifications
Available current ranges: 300mA, 500mA, 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A. For currents exceeding 50A, meters can be used with current transformers having secondary currents of 5A or 1A.
Dimensions (millimeters)
| Model |
Case Dimension |
Panel Cutout Dimension |
| TP-45 |
45.2 × 45.2 × 8.5 |
ø38 |
| TP-50 |
51 × 51 × 13 |
ø45.5 |
| TP-60 |
60 × 60 × 14 |
ø51 |
| TP-80 |
81.3 × 81.3 × 16 |
ø64 |
Specification Selection Guide
| Model |
Moving Coil |
Moving Iron |
|
Ammeter |
Voltmeter |
Ammeter |
Voltmeter |
|
AC |
DC |
AC |
DC |
AC |
DC |
AC |
DC |
| TP-45 |
-- |
V |
V |
V |
-- |
-- |
-- |
-- |
| TP-50 |
-- |
V |
V |
V |
V |
-- |
V |
-- |
| TP-60 |
-- |
V |
V |
V |
V |
-- |
V |
-- |
| TP-80 |
-- |
V |
V |
V |
V |
-- |
V |
-- |
