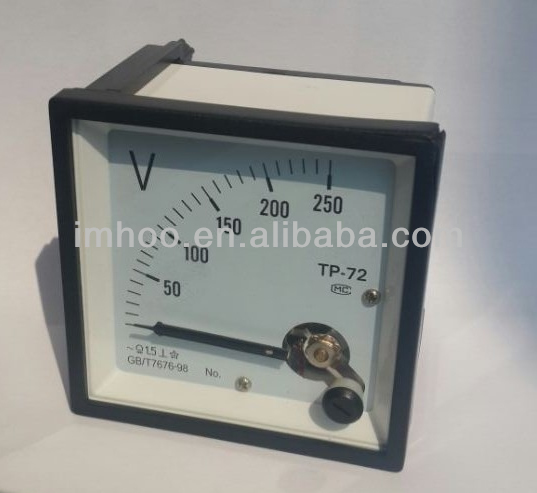

AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog
AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog
AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog
AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog
Specifications
Accuracy Class :
2.5
Measuring Range :
0-600V
Model Number :
TP-72 ACV
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
72x72mm
Display Type :
Analog Only
Operating Temperature :
-20~50℃
HS Code :
9028309000
Outer Carton Size :
41x35x35cm
Standard Package :
100pcs/CTN
N.W. :
17KG
G.W. :
18KG
MOQ :
100
Price :
$2-5 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
AC Analog Panel Meter - Voltmeter & Ammeter
Professional 72x72mm AC analog panel meter designed for precise voltage and current measurement in industrial applications.
Product Construction
Manufactured with non-combustible ABS plastic external case and PPO plastic base. Optional non-combustible PC plastic construction available for both case and base. Both materials maintain structural integrity at 70°C and 120°C respectively without deformation.
Customization Options
IMHOO offers OEM services including custom ranges, changeable scales, waterproof configurations, and other specialized requirements.
Technical Specifications
Ammeter Ranges
Type AC Ranges DC Ranges
mA 100mA, 150mA, 200mA, 400mA, 500mA 100mA, 150mA, 200mA, 400mA, 500mA
A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A 1A, 1.5A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A
Extended Ranges with External Components
Configuration AC Ranges (with CT) DC Ranges (with Shunt)
X1A 10/1A, 15/1A, 20/1A, 30/1A, 40/1A, 50/1A, 60/1A, 75/1A, 100/1A, 150/1A, 200/1A, 300/1A, 400/1A, 500/1A, 600/1A, 1000/1A 50mV, 60mV, 75mV: 10A-3000A ranges available
X5A 10/5A, 15/5A, 20/5A, 30/5A, 40/5A, 50/5A, 60/5A, 75/5A, 100/5A, 150/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1000/5A -
Voltmeter Ranges
Type AC Voltage DC Voltage
Voltage 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V 10V, 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 400V, 450V, 500V, 600V
Product Images
AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog AC Analog Meter Voltmeter 72x72 100ua Panel Meter Ammeter Analog
Physical Dimensions (mm)
Model Case Dimension Panel Cutout Dimension A B C D E F
TP-96 96.5 91 96.5 96.5 69.4 64 91 91
TP-72 71.8 67.5 71.8 71.8 69.4 64 67.5 67.5
TP-48 48.3 44.2 48.3 48.3 69.4 64 44.2 44.2
Model Selection Guide
Model Moving Coil Moving Iron Ammeter Voltmeter
AC DC AC DC
TP-96 - V V V - V
TP-72 - V V V - V
TP-48 - V V V - V
