Specifications
Model Number :
M20969-1
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$22-28 / piece
Accuracy Class :
1.5~2.5
Display Type :
Analog Only
Supply Voltage :
300V
Dimensions :
4.5''
Operating Temperature :
0 to 40℃
Measuring Range :
DC1500A/FS.DC50mV
Function :
Panel Meter Ammeter
Model Size :
4.5''
Full Scale deflection angle :
90°
Operating Humidity Range :
25 to 80%RH
Storage Temperature Range :
-10~+50℃
Storage Humidity Range :
25 to 80%RH
OEM&ODM :
Support
Certificate :
CE ROHS
Features :
High Temperature Resistance
Sample Time :
7 Days
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

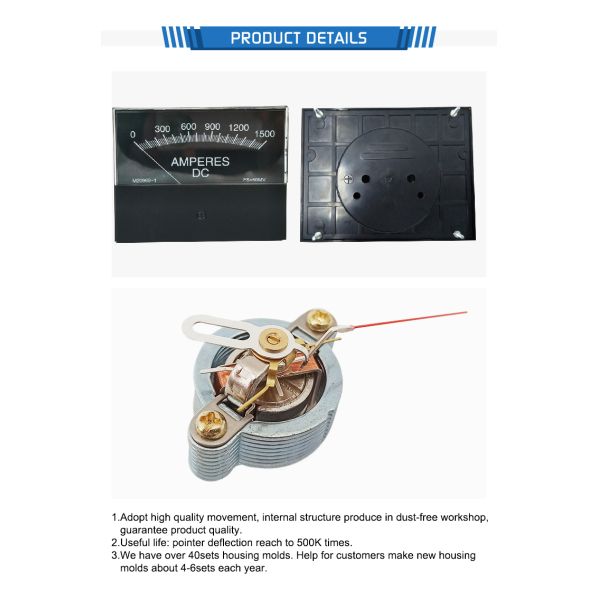

High Range 1500 DC Current Analog Ammeter Panel Meter
Professional-grade analog ammeter featuring a mechanical pointer for precise DC current measurement up to 1500A. Designed for industrial panel mounting applications.
High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer
Product Specifications
Model M20969-1
Model Size 4.5''
Full Scale Deflection Angle 90°
Withstand Voltage 50Hz, 2000V for one minute
Operating Temperature Range 0 to 40℃
Case Material Base: ABS (environmental protection)
Front Cover: Acrylic resin
Payment Methods L/C, D/A, D/P, T/T, MoneyGram
Safety & Compliance
  • Structural requirements comply with GB/T7676-98 and IEC60092-50 standards
  • Reinforced insulation between electrical circuit and case
  • Designed for indoor use at altitudes up to 2000m, Pollution degree 2
  • Measurement category III (not applied for non-JIS products)
  • Maximum working voltage: 300V for DC meters, AC meters (Mean rectifier type), Wattmeters, Varmeters, Power factor meters and Frequency meters
  • Maximum working voltage: 600V for AC meters (Moving iron type)
High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer
Panel Cutout Dimensions (mm)
Model Size A B C D E F
2.5'' 23.75 23.75 23.75 23.75 3.5 54.5
3.5'' 28.5 28.5 28.5 28.5 3.5 66.5
4.5'' 50.8 50.8 51.2 39.2 3.5 71
Panel Dimensions (mm)
Model Size G H L K J
2.5'' 23.75 23.75 23.75 23.75 3.5
3.5'' 28.5 28.5 28.5 28.5 3.5
4.5'' 50.8 50.8 51.2 39.2 3.5
High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer High Range 1500 DC Current Analog Ammeter Panel Meter With Mechanical Pointer
