Specifications
Model Number :
M20968-3
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$20-25 / piece
Accuracy Class :
1.5~2.5
Display Type :
Analog And Digital
Supply Voltage :
300V
Dimensions :
3.5''
Operating Temperature :
0 to 40℃
Measuring Range :
DC1200A/FS.DC50mV
Function :
Panel Meter Ammeter
Model Size :
3.5''
Full Scale deflection angle :
90°
Operating Humidity Range :
25 to 80%RH
Storage Temperature Range :
-10~+50℃
Storage Humidity Range :
25 to 80%RH
OEM&ODM :
Support
Certificate :
CE ROHS
Features :
High Temperature Resistance
Sample Time :
7 Days
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
Professional 1200A DC Analog Panel Meter Ammeter
High-precision DC analog panel meter designed for industrial applications with robust construction and reliable performance.

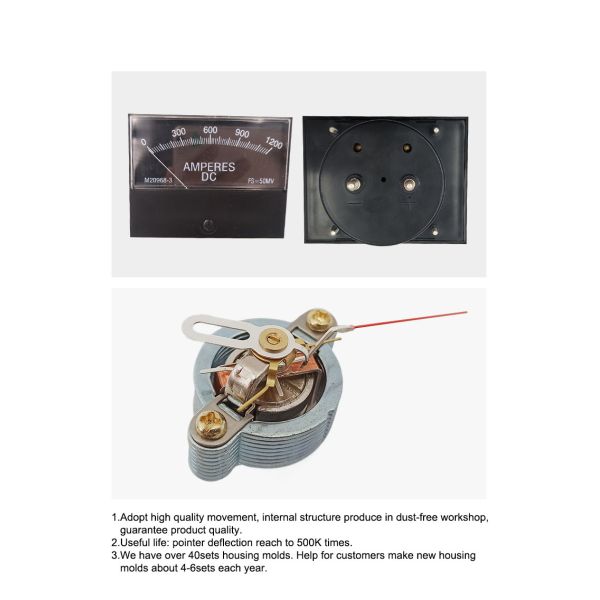

Product Images
3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter
Technical Specifications
Model M20968-3
Model Size 3.5''
Range DC1200A/FS.DC50mV
Full Scale Deflection Angle 90°
Withstand Voltage 50Hz, 2000V for one minute
Operating Temperature Range 0 to 40℃
Case Material Base Material: ABS (environmental protection)
Front Cover Material: Acrylic resin
Payment Methods L/C, D/A, D/P, T/T, MoneyGram
Safety Requirements & Compliance
  • Structural requirements comply with GB/T7676-98 and IEC60092-50 standards for voltage test safety and insulation
  • Reinforced insulation between electrical circuit and case
  • Designed for indoor use at altitudes up to 2000m, Pollution degree 2
  • Measurement category III (not applied for non-JIS products)
  • Maximum working voltage: 300V for DC meters, AC meters (Mean rectifier type), Wattmeters, Varmeters, Power factor meters and Frequency meters
  • Maximum working voltage: 600V for AC meters (Moving iron type)

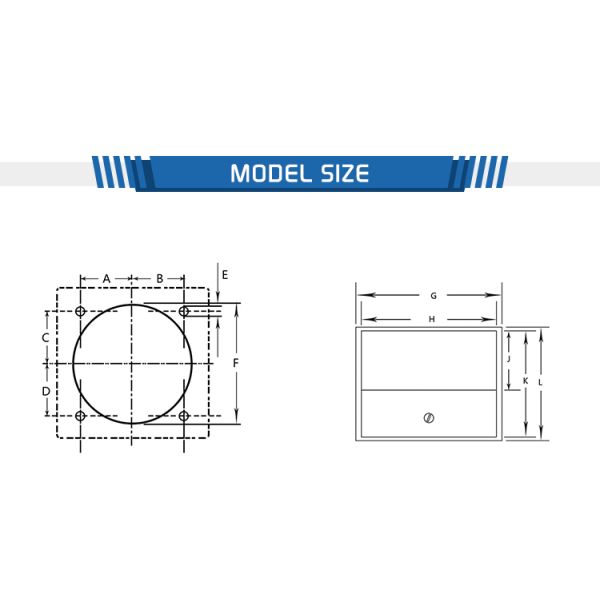

Installation Dimensions
3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter
Panel Cutout Dimensions (mm)
Model Size A B C D E F
2.5'' 23.75 23.75 23.75 23.75 3.5 54.5
3.5'' 28.5 28.5 28.5 28.5 3.5 66.5
4.5'' 50.8 50.8 51.2 39.2 3.5 71
Panel Dimensions (mm)
Model Size G H L K J
2.5'' 23.75 23.75 23.75 23.75 3.5
3.5'' 28.5 28.5 28.5 28.5 3.5
4.5'' 50.8 50.8 51.2 39.2 3.5
Additional Product Views
3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter 3.5'' 1200A DC Analog Panel Meter , Digital Analog Panel Amp Meter
