Specifications
Model Number :
DN-72
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$2.90-6 / piece
Accuracy Class :
2.5
Digits Displayed :
0-1500A
Display Type :
Analog Only
Input Voltage :
±0.1999 V
Supply Voltage :
220/110V
Dimensions :
72x72mm
Input Type :
AC/DC
Material :
ABS
Operating Temperature :
-20~+50
Phase :
Single Phase
Case Material :
ABS
Base Material :
PPO
HS Code :
9030339000
Outer Carton Size :
41x35x35cm
QTY/CTN :
100pcs/CTN
G.W. :
17KG
N.W. :
15KG
Input Current :
±1
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

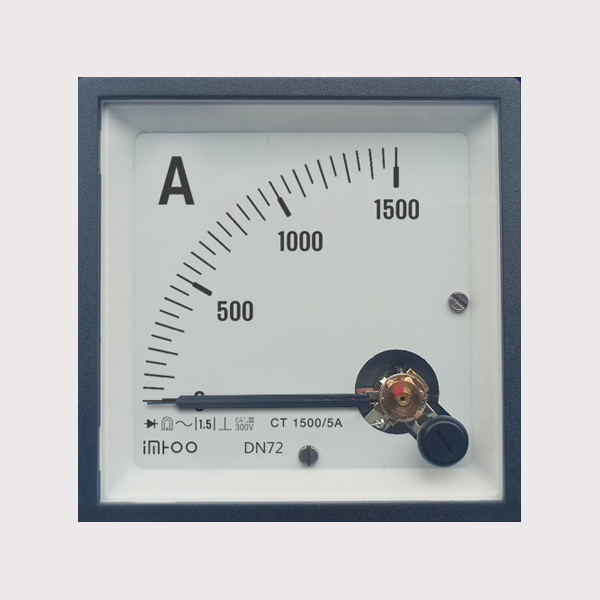

72-Type Pointer AC/DC Ammeter - 1500A Range with 5A CT Input
72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter
The Analog Ammeter is a high-precision measuring instrument designed to display current values in electrical systems with a clear pointer dial. Its square panel design ensures easy readability and simple installation, making it suitable for distribution cabinets, control panels, laboratories, and industrial applications. This ammeter works with current transformers (CT) to measure high current ranges safely and accurately.
Key Features
  • Clear Analog Display - Pointer dial provides real-time, intuitive current readings
  • High Accuracy - Complies with Class 1.5 accuracy standards for reliable performance
  • Durable Design - Strong ABS housing with transparent glass cover, resistant to vibration
  • Panel Mounting - Compact square design for embedded installation in electrical panels
  • Wide Application - Ideal for monitoring current in power systems, industrial control, laboratories, and equipment testing
Technical Specifications
Product Type Analog Ammeter (Pointer Type)
Measuring Range 0 - 1500A (via CT 1500/5A)
Input Current 5A (from Current Transformer)
Accuracy Class 1.5
Panel Size 72 × 72 mm (DN72)
Display Type Analog Pointer, Mechanical Scale
Scale Division Clear black graduation marks
Mounting Type Panel Mount (Embedded Installation)
Material ABS Housing + Transparent Glass
Operating Temperature -10℃ to +50℃
Storage Temperature -20℃ to +60℃
Application Power systems, industrial control, distribution cabinets, laboratories, equipment testing
Installation & Operation Precautions
  1. Use with Proper CT (Current Transformer) - This ammeter must be connected through a matching current transformer (e.g., CT 1500/5A). Do not connect directly to high current circuits.
  2. Operate Within Rated Range - Ensure the current does not exceed the specified measuring range to avoid damage.
  3. Correct Polarity - Verify correct wiring and polarity before use to prevent abnormal pointer deflection.
  4. Avoid Strong Vibration and Impact - The meter is a precision instrument; protect it from shocks and mechanical vibration.
  5. Periodic Calibration - Regular calibration is recommended to maintain measurement accuracy.
  6. Installation Environment - Install in a dry, ventilated area away from high temperature, humidity, and strong magnetic fields.
  7. Safety First - Always disconnect power supply before wiring, installation, or maintenance.
72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter 72 Type Pointer Type AC DC Ammeter Voltmeter Marine Meter Power Distribution Meter
Frequently Asked Questions
Q: Can you accept OEM manufacturing?
A: Yes. We can create molds for meter housings and provide customized technology according to your requirements. We can also implement your branding and packaging design (inner box, blister, master carton).
Q: Where can I place my logo?
A: We can print your logo on the meter dial, meter housing, blister card, inner box, and master carton.
Q: What are your minimum order quantities?
A: Analog display meters MOQ: 100 pieces. Digital display meters MOQ: 1,000 pieces.
Q: How can I get samples?
A: Samples costing below $10.00 are free, but customers must pay the freight cost.
Q: What are your payment terms?
A: 1) T/T (30% in advance, balance paid before shipment). 2) For orders less than USD 5,000, we require 100% payment in advance to save on bank transfer costs for both parties.
Q: How long is the delivery time?
A: For minimum order quantities, the lead time is approximately 15 days.
