PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
Specifications
Model Number :
PM438
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$1.54-2.50 / piece
Accuracy Class :
±1%
Measuring Range :
DC 0-450V
Dimensions :
67 * 41 * 17mm
Display Type :
Digital Only
Operating Temperature :
0-50℃
color :
black
HS Code :
8504902000
Meter type :
voltmeter/ammeter/Thermometer...
Power suply :
8-12V
Resolution :
0.1 mV or 0.1A
MAX Display :
1999 counts
Product size :
67 * 41 * 17mm
Display size :
48 * 21 mm LCD
Installation dimension :
55 * 39 Square hole
Product Weight :
Around 23g
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
PM438 Digital Ammeter and Voltmeter
The PM438 digital ammeter and voltmeter is a semi-finished panel meter designed as a professional current or voltage monitoring instrument for machinery and equipment applications.
Product Specifications
Display 3 1/2 digits LCD with Max. Reading of 1999
Polarity Automatic, positive implied, negative polarity indication
Measurement Rate 2 times per sec. nominal
PM438 (Voltage Tester) DCV 0 ~ 450V (default: 200mV)
PM438A (Voltage Tester) ACV 0 ~ 400V (default: 400V)
PM438B (Current Tester) DCA 0 ~ 5A (default: 2A)
Power Supply 8-12V (Customizable according to customer requirements)
Accuracy ±(1%+3)
Resolution 0.1 mV or 0.1A
Display Size 48 × 21 mm LCD
Product Size 67 × 41 × 17mm
Installation Dimension 55 × 39 Square hole
Weight Approximately 23g

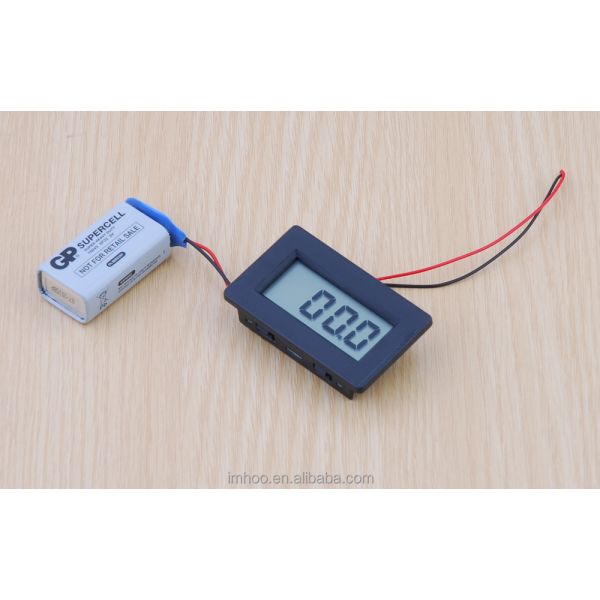

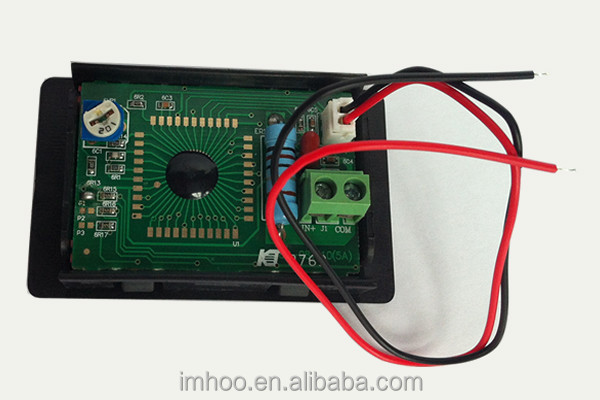

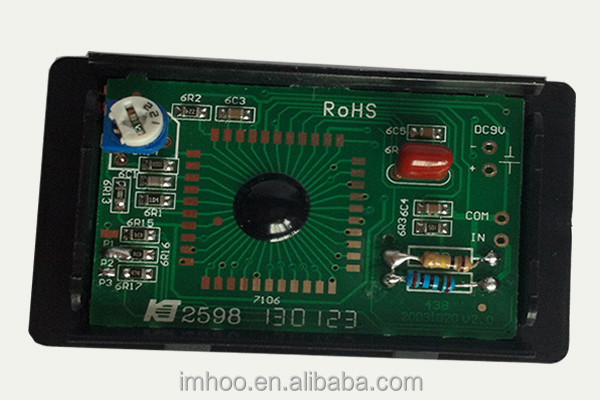

Product Images
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
Packaging & Shipping
Packing Type Gift Box (Customizable)
Standard Packing per Carton 250pcs/CTN
Carton Size 57 × 35 × 24cm
Net Weight 8.5kg
Gross Weight 9.5kg
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
Our Services
  • High Quality, Competitive Pricing
  • Integrity and On-Time Delivery Commitment
  • Quality Assurance and Replacement Policy
  • OEM Services Available
  • Custom Product Research and Development
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour High-speed rail from Shanghai Hongqiao station. All our clients are warmly welcome to visit us!
Q: How can I get some samples?
A: We offer samples with free sample fee for orders under USD10.00, customers only need to pay the freight cost.
Q: What's your MOQ?
A: We accept trial orders starting from 1 piece for each product.
Q: Which Payment terms do you accept?
A: We accept T/T, L/C, Western Union, and PayPal.
Q: How does your factory handle quality control?
A: Quality is our priority. We maintain strict quality control from beginning to end of the manufacturing process.
