MD1 Type Electric Cable Hoist Trolley 3 - 20M Lifting Height High Safety
MD1 Type Electric Cable Hoist Trolley 3 - 20M Lifting Height High Safety
MD1 Type Electric Cable Hoist Trolley 3 - 20M Lifting Height High Safety
MD1 Type Electric Cable Hoist Trolley 3 - 20M Lifting Height High Safety
MD1 Type Electric Cable Hoist Trolley 3 - 20M Lifting Height High Safety
MD1 Type Electric Cable Hoist Trolley 3 - 20M Lifting Height High Safety
Specifications
Brand Name :
YINGER HOIST
Model Number :
MD1
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1-10Ton
Lifting Height :
3-20M
Sling Type :
Wire rope
Lift Speed :
8(0.8)m/min
product name :
MD1 Electric Hoist
Voltage :
380V 3P
Description

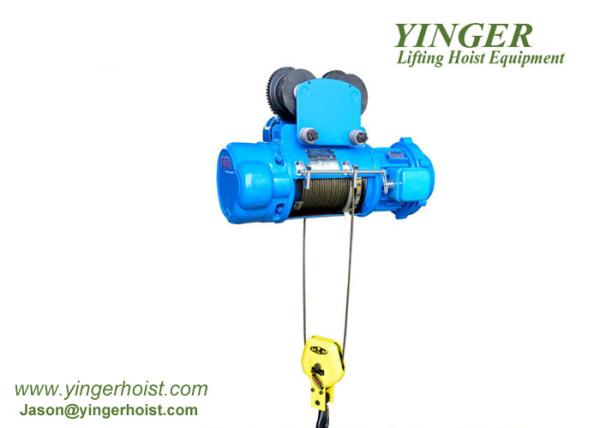

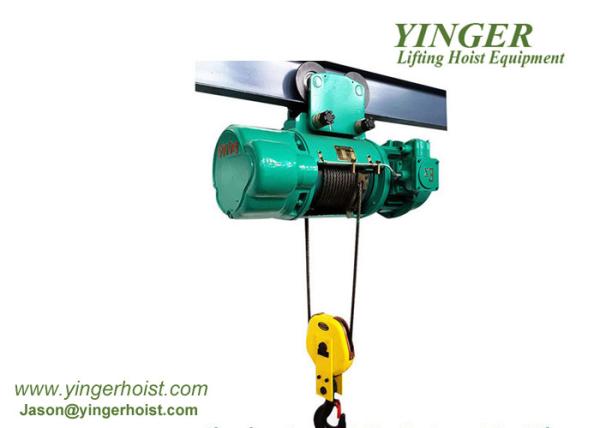

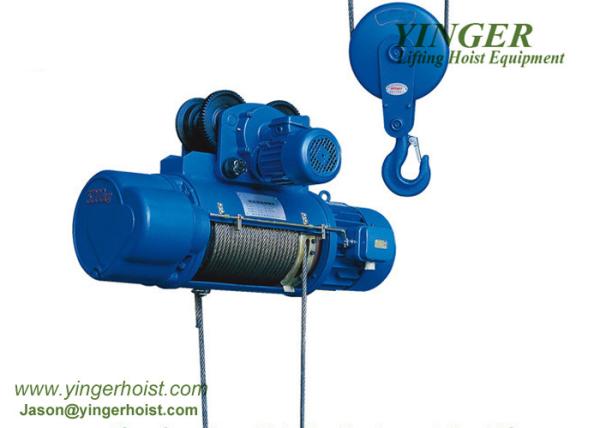

MD1 Type Electric Wire Rope Hoist 1-10Ton Electric Hoist Wire rope Hoist

CD1/MD1 small wire rope electric hoist can be mounted on single beam overhead crane,gantry cranes, jib type CD, electric hoist as only one normal speed which can satisfy normal application .

MD1 type electric hoists have fast and slow lifting speeds which make it lift steadily and accurately.
Electric wire rope Hoist is assembled from different independent units viz. Hoisting Gear Box, Hoisting Motor with brake, Rope Drum, Electric Control Panel and Traveling Trolley. All these units are separately accessible and promptly disassembled cost and downtime.

Model 0.25TON 0.5TON 1TON 2TON 3TON 5TON 10TON
Capacity ton 0.25 0.5 1 2 3 5 10
Standard lift m 3-9 6-12 6-30 6-30 6-30 6-30 6-30
Lifting Height m/min 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7)
Running Speed m/min 20/30
Wire Rope type 6*19-3.6 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-13-170 6*37-15-200 6*37-15-200
I beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Loop track minimum Radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage V 380 380 380 380 380 380 380
Frequency HZ 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3
