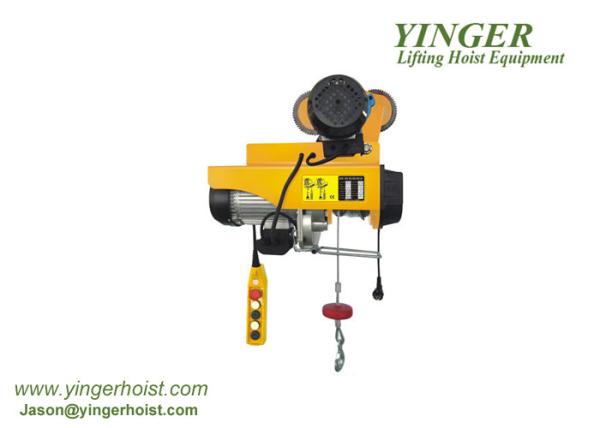

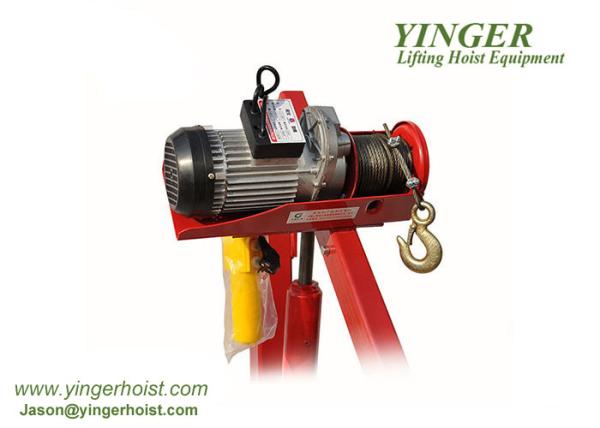

Single Phase 2000kg Electric Wire Rope Hoist , Portable Pa Mini Electric Hoist Pulling 1 ton electric wire rope hoist
Single Phase 2000kg Electric Wire Rope Hoist , Portable Pa Mini Electric Hoist Pulling 1 ton electric wire rope hoist
Single Phase 2000kg Electric Wire Rope Hoist , Portable Pa Mini Electric Hoist Pulling 1 ton electric wire rope hoist
Single Phase 2000kg Electric Wire Rope Hoist , Portable Pa Mini Electric Hoist Pulling 1 ton electric wire rope hoist
Specifications
Brand Name :
YINGER HOIST
Model Number :
PA
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
100-1200KG
Lifting Height :
6m12m
Sling Type :
Wire rope
Lift Speed :
10m/min
product name :
Electric Wire Rope Hoist
Weight :
23kg
Description

single phase 2000kg Electric Hoist Wire Rope Electric Hoist Portable Pa Hoist Mini Electric Hoist Pulling

Single Phase 2000kg Electric Wire Rope Hoist , Portable Pa Mini Electric Hoist Pulling 1 ton electric wire rope hoist

1)The emergency stop switch
2)Upper limit function
3)Thermal protection terminal
4)Protection class:IP54
5)Insulation class:B
6)Group of mechanisms:M1
7)Work Duty: S3-25%-10min
8)Rated Volt: 220/230V ~ 50Hz
9)Rated Current: 2.0A
10)Input Power: 1600W
11)Lifting Weight: 500kg (Single-line), 1000kg (Double-line)
12) Lifting Height: 12m (Single-line), 6m (Double-line)
13)Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)
14)Diameter of wire rope: 3.0mm
15)Tensile strength of wire rope ≥ 1870N/mm2

Model PA200 PA250 PA400 PA500 PA600 PA800 PA1000
Rated Volt(V) 230-50hz S3 20% 10 min
Input Power (w) 450 500 750 900 1050 1300 1600
Rate Lifting(kg) 100/200 125/250 200/400 250/500 300/600 400/800 500/1000
Lifting height(m) 12/6
Lifting speed(m/min) 10/5
Packing dimensions(cm) 44*38*20 44*37*25 44*37*25 44*37*25 53*45*19 53*28*35 53*28*35
G.W/N.W 24/22 25/24 25/33 36/34 41/38 38/36 40/38
Quan/ctn(pcs) 2 2 2 2 2 1 1

Single Phase 2000kg Electric Wire Rope Hoist , Portable Pa Mini Electric Hoist Pulling 1 ton electric wire rope hoist
