20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
20T 15M Low Headroom Hoist , Hoist Lifting Equipment Electric Driven M4 Working Duty
Specifications
Brand Name :
YINGER HOIST
Model Number :
LOW
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
20t
Lifting Height :
15M
Lift Speed :
3.2m/min
product name :
low headroom hoist
Voltage :
380V 3P
Working duty :
M4
Lifting Motor Power :
7.5KW
Beam :
Single beam
Description

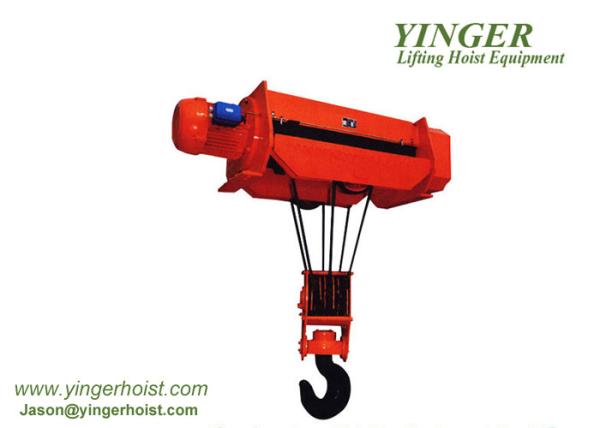

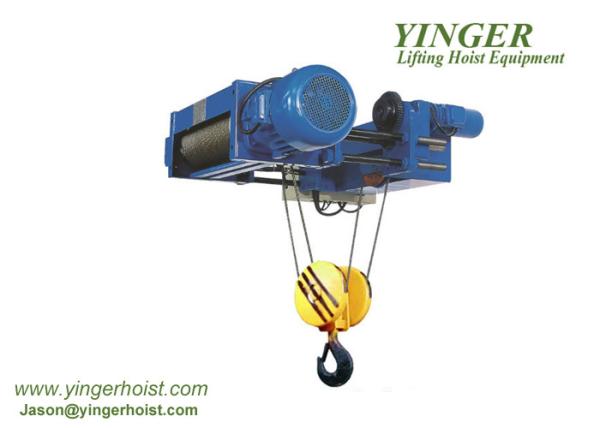

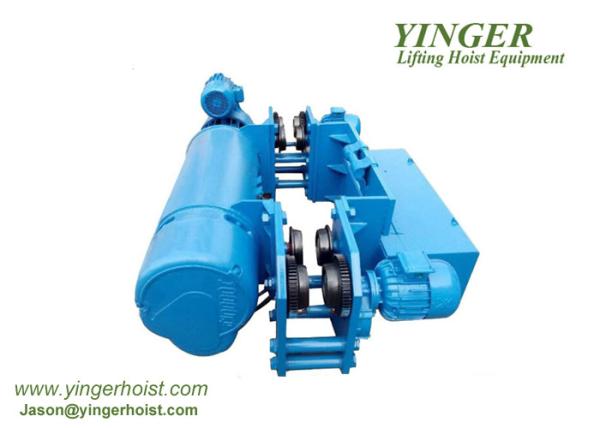

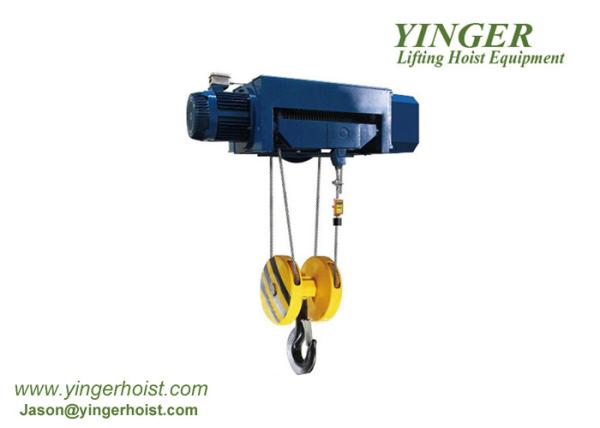

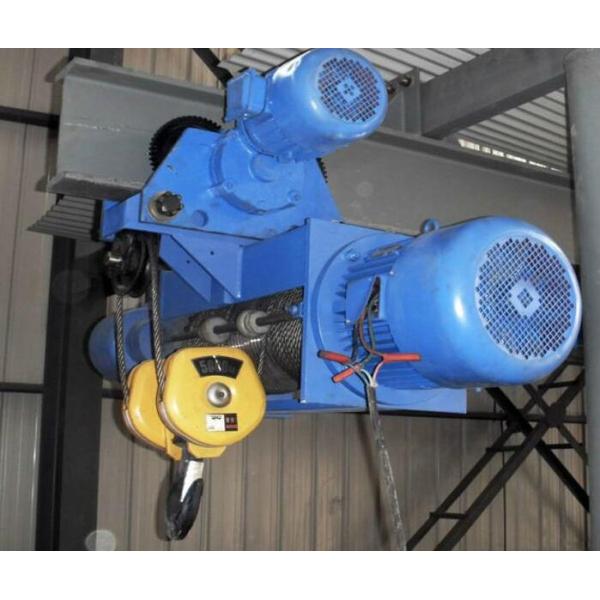

20t 15M low headroom portable wire rope electric hoist With Remote Control

European electric hoists with wire rope is a kind of new products developed with advanced design technology which accords to the European FEM standard and DIN standard. The whole set of electric hoist is a new energy-saving and environment--friendly product whose technology is internationally advanced and cost performance is in the top among the same products.

Loading capacity 0.5 ~ 32t
Lifting height 3 ~ 30 m or customized
Lifting speed

Single speed: 0.3 ~ 8 m/min; or customized

Double speed: 0.3/3 m/min, 0.7/7 m/min or customized
Working class M3 ~ M4
Working temperature -20 ~ 40 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-36 / 48V
Motor protection class IP54 / IP55
Control way Ground handle control(Push button),wireless remote control,cabnient control
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied
Remarks:Above parameter just for your reference,specical requirements can be customized based on clients' demands.
