1 - 10 Ton Lifting Electric Wire Rope Hoist Limit Switch Makes Safety Operation
1 - 10 Ton Lifting Electric Wire Rope Hoist Limit Switch Makes Safety Operation
Specifications
Brand Name :
YINGER HOIST
Model Number :
CD1
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1-10Ton Wire rope hoist
Lifting Height :
12M
Sling Type :
Wire rope
Lift Speed :
8m/min
product name :
Electric Wire Rope Hoist
Voltage :
380V 3P
Limit Switch :
make operate safety
Motor :
Germany Standard Technolgy
Description

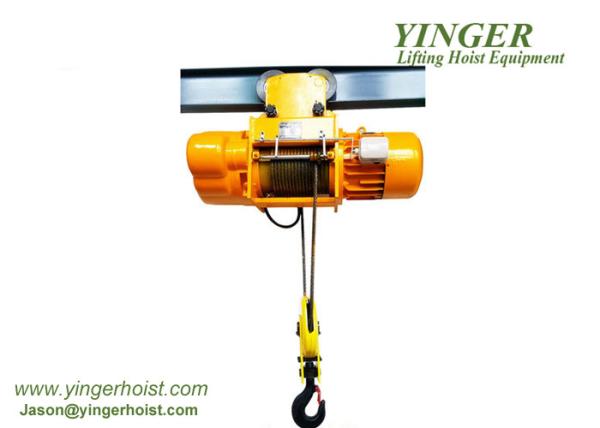

1-10Ton lifting tools Wire Rope Hoist CD1 Type Electric Wire Rope Hoist

It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops, etc. greatly raising working efficiency and improving working conditions.

CD1 series Electric Wire rope hoist is a kind of light-small lifting equipment with advantages of tight structure light,small volume,wide common use and convenient operation etc.

Model 0.25TON 0.5TON 1TON 2TON 3TON 5TON 10TON
Capacity ton 0.25 0.5 1 2 3 5 10
Standard lift m 3-9 6-12 6-30 6-30 6-30 6-30 6-30
Lifting Height m/min 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7)
Running Speed m/min 20/30
Wire Rope type 6*19-3.6 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-13-170 6*37-15-200 6*37-15-200
I beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Loop track minimum Radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage V 380 380 380 380 380 380 380
Frequency HZ 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3

1 - 10 Ton Lifting Electric Wire Rope Hoist Limit Switch Makes Safety Operation

1 - 10 Ton Lifting Electric Wire Rope Hoist Limit Switch Makes Safety Operation

1 - 10 Ton Lifting Electric Wire Rope Hoist Limit Switch Makes Safety Operation
