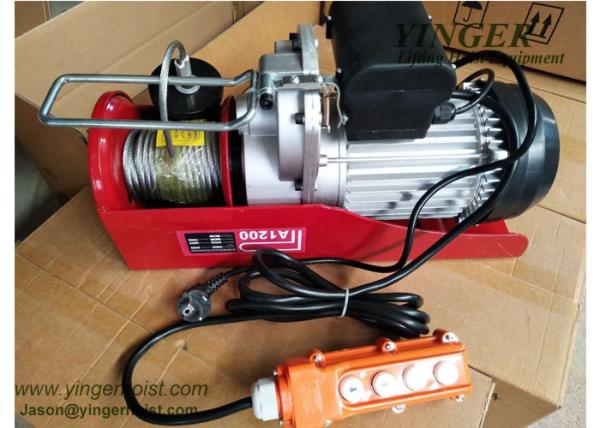

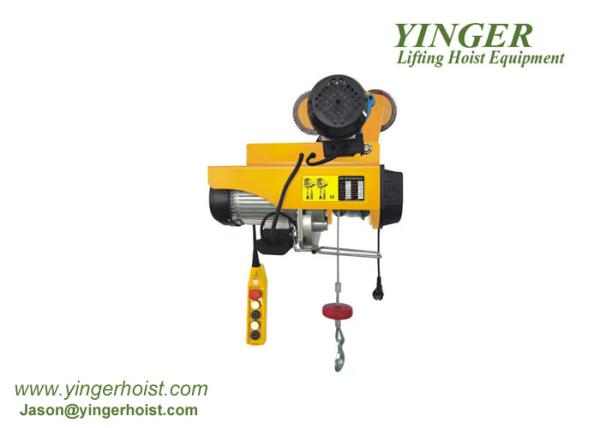

Mini Electric Wire Rope Hoist 200kg Lifting Weight Low Energy Consumption
Mini Electric Wire Rope Hoist 200kg Lifting Weight Low Energy Consumption
Mini Electric Wire Rope Hoist 200kg Lifting Weight Low Energy Consumption
Mini Electric Wire Rope Hoist 200kg Lifting Weight Low Energy Consumption
Mini Electric Wire Rope Hoist 200kg Lifting Weight Low Energy Consumption
Mini Electric Wire Rope Hoist 200kg Lifting Weight Low Energy Consumption
Specifications
Brand Name :
YINGER HOIST
Model Number :
PA
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
200KG
Lifting Height :
6m
Sling Type :
Wire rope
Lift Speed :
5m/min
product name :
Electric Wire Rope Hoist
Weight :
12kg
Description

Limit Switch Mini Electric Wire Rope Hoist Miniature Electric Hoist

The latest European standards certification CE, GS, EMC;

With emergency stop switch and forced open limit switch, protection class IP54, with thermal protection device;
Efficient, lightweight motor, no asbestos brake system, low energy consumption;
Stamping steel shell, lightweight and strong;
High-strength safety hook, to withstand accidental overload impact will not break;
Reverse-phase protection device: a special wire device, when the power wiring error, the control circuit can not move.

Model PA200 PA250 PA400 PA500 PA600 PA800 PA1000
Rated Volt(V) 230-50hz S3 20% 10 min
Input Power (w) 450 500 750 900 1050 1300 1600
Rate Lifting(kg) 100/200 125/250 200/400 250/500 300/600 400/800 500/1000
Lifting height(m) 12/6 12/6 12/6 12/6 12/6 12/6 12/6
Lifting speed(m/min) 10/5 10/5 10/5 10/5 10/5 10/5 10/5
Packing dimensions(cm) 44*38*20 44*37*25 44*37*25 44*37*25 53*45*19 53*28*35 53*28*35
G.W/N.W 24/22 25/24 25/33 36/34 41/38 38/36 40/38
Quan/ctn(pcs) 2 2 2 2 2 1 1
