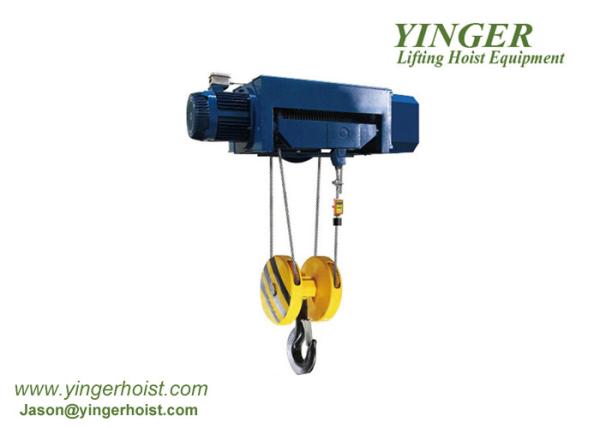

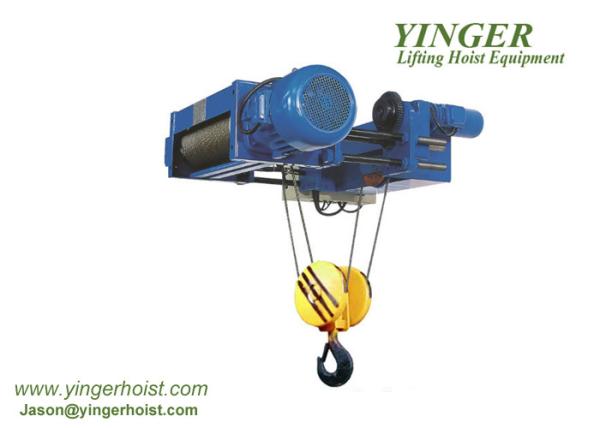

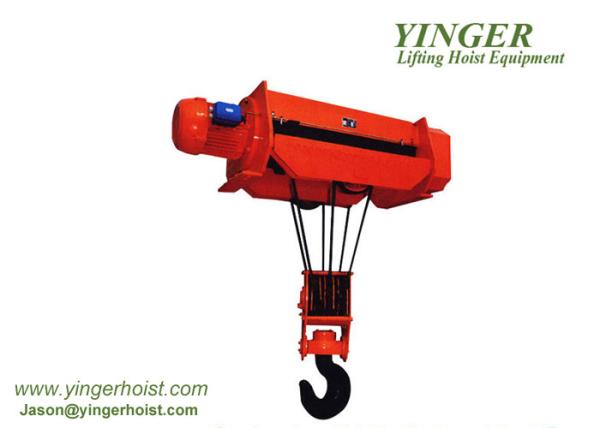

1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System
1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System
1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System
1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System
1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System
1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System
Specifications
Brand Name :
YINGER HOIST
Model Number :
HC
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1-50t
Lifting Height :
30M
Lift Speed :
8m/min
product name :
Electric Wire Rope Hoist
Voltage :
380V 3P
Working duty :
M3/M5
Working Temperature :
-25-40℃
Rotation speed :
1380r/min
Description

Heavy Duty 20t 25t 50t Electric Wire Rope Hoist double girder wire rope electric hoist

Special Design HC Model Wire Rope Electric Hoist
1. HC type large-tonnage wire rope electric hoist with reference to the product using the latest professional standards at home and abroad, through the pulley block ratio and motor transformation, can combine weight 16 t - 100 t, lifting height of 6 m - 96m, working-level series electric hoist M3 to M6.
2. Lifting hook has a locking device to prevent rigging accidentally slip.
3. The motor is equipped with thermal protection device, when the temperature of the motor is too high, the device will automatically cut off the circuit in order to protect the motor is not damaged.
4. High safety and reliability: the optional limit load protection device, can avoid the adverse consequences for overloading.
5. HC Electric Hoist have all the function of normal wire rope electric rope.
- With ultra large hoisting height and weight ;
- Doule Speed hoisting ,double speed running . Fast and Slow speed.
- Hoisting mechanism with dual braking system;
- With overload and underload protection device;
- With the overspeed protection system;
- Control by remote control or pushbutton control .

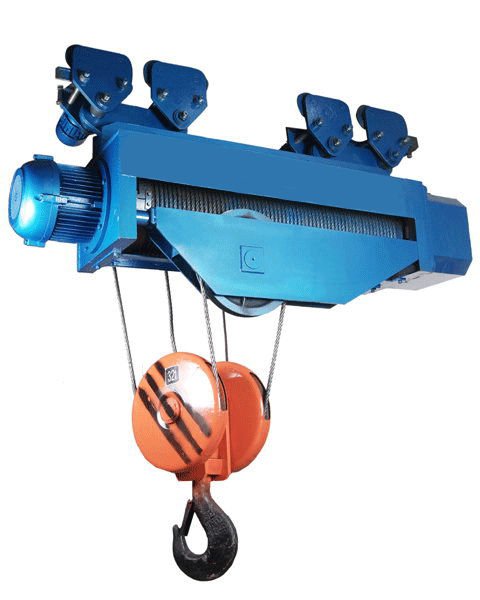

1 Ton - 50 Ton Electric Wire Rope Hoist With Overspeed Protection System

Type HC(HM)
Lifting Weight(t) 16t 20t
Lifting Height(m) 9 12 16 18 20 24 30 9 12 16 18 20 24
Lifting Speed(m/min) 3.5/0.35 (4/0.4) 3.5/0.35 (4/0.4)
Travelling Speed(m/min) 20 20
Wire Rope Rope Dia.(mm) 17.5 20
Yan Dia.(mm) 1.2 0.9
Specification 6×37+1 6×37+1
Track 50a-63c 50a-63c
Min. Curvature Radius(m) 3.0 3.5 4.6 3.0 3.5 4.6
Lifting Motor Type ZDX62-6 (ZD52-4) ZDX62-6 (ZD52-4)
Power(KW) 18.5 18.5/3.0 18.5 18.5/3.0
Rotation(r/min) 920 (1400) 920 (1400)
Current(A) 40 40
Travelling Motor Type ZDY122-4 ( ZDY121-4) ZDY121-4
Power(KW) 0.8×2 0.8×4
Rotation(r/min) 1380 1380
Current(A) 2.4×2 2.4×2
Working System Intermediate M3 Light M6
Power Source Three-phase 380V 50HZ or according to customers’ requirements
