IP55 Waterproof Electric Wire Rope Hoist Suspended Design 380V 3P Voltage
IP55 Waterproof Electric Wire Rope Hoist Suspended Design 380V 3P Voltage
Specifications
Brand Name :
YINGER HOIST
Model Number :
MD
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1-10Ton
Lifting Height :
3-20M
Sling Type :
Wire rope
Lift Speed :
8m/min
product name :
Electric Wire Rope Hoist
Voltage :
380V 3P
Transformer :
24v/36v
Limit switch :
installed lift on and off
Description

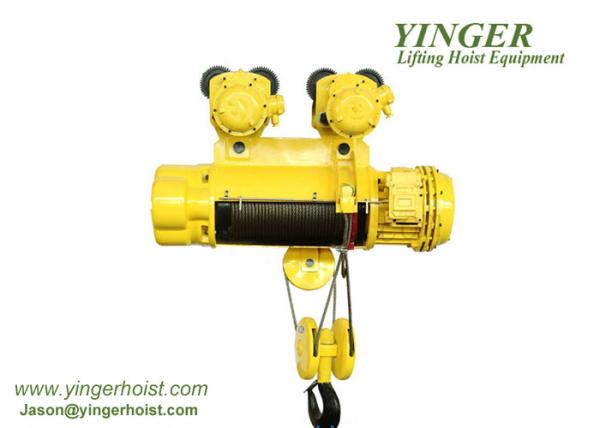

IP55 Waterproof Suspended Lifting Hoist Electric Wire Rope Hoist

High quality material:

1.Electrical equipment:Schneider Control box material:Q235B

2.Motor:Nanjing special electric

3.Bearing:Ha‘erbin Bearing

4.Gear:20Chromium manganese titanium

5.Hook:40 chrimium forge

6.Wire rope:Guizhou Julong limited liability company

7.Transmission shaft:45#quenched and tempered steel

8.Cover and coiling block:thicken steel plate

wire rope electric hoist Introduction:

wire rope electric hoist is a kind of small-lifting equipment, it can be mounted on single beam overhead crane, gantry cranes, jib type CD1 MD1 electric wire rope hoist as only one normal speed which can satisfy normal application. It is widely used in factories, mines, harbours, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.

1. wire rope electric hoist are improved ones on the basis of the original CD and MD .

2. Tight structure ,smart body,safety and reliability,commomused partsstrong lifting capacity, easy maintance.

3. The hoists exists in form of stationary style and crab-style.

4. The products are widely at industrial ore enterprises ,railway,harbors,warehouses and materials sites etc.

5. Working environment:no fire,no explosive danger ,no corrosive media and no dirt exist.

6. Working temperature:-25°C~+40°C ,Wetness is less than 85%.

Model 0.25TON 0.5TON 1TON 2TON 3TON 5TON 10TON
Capacity ton 0.25 0.5 1 2 3 5 10
Standard lift m 3-9 6-12 6-30 6-30 6-30 6-30 6-30
Lifting Height m/min 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7)
Running Speed m/min 20/30
Wire Rope type 6*19-3.6 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-13-170 6*37-15-200 6*37-15-200
I beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Loop track minimum Radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage V 380 380 380 380 380 380 380
Frequency HZ 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3
