Specifications
Brand Name :
YINGER HOIST
Model Number :
CD1
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1Ton electric hoist
Lifting Height :
3/6/9/12M
Sling Type :
6*37
product name :
CD1 electric hoist
Warranty :
24 Months
Voltage :
380V-440V
Power Source :
Electric
Hook :
strengthen and thicken
Description

3ton Hoisting Cable Winch / 3000kg CD1 MD1 Electric Wire Rope Hoist

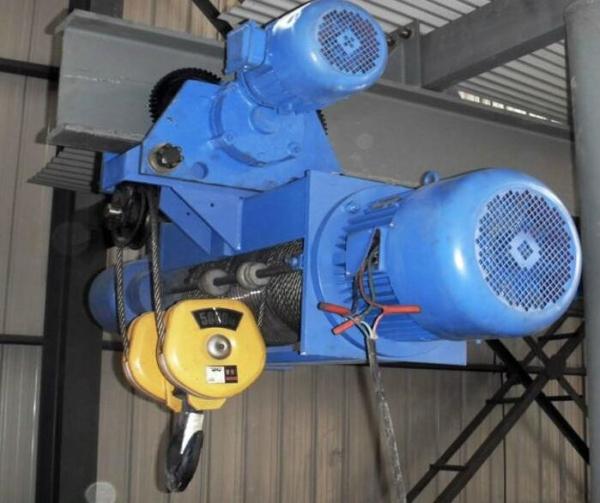

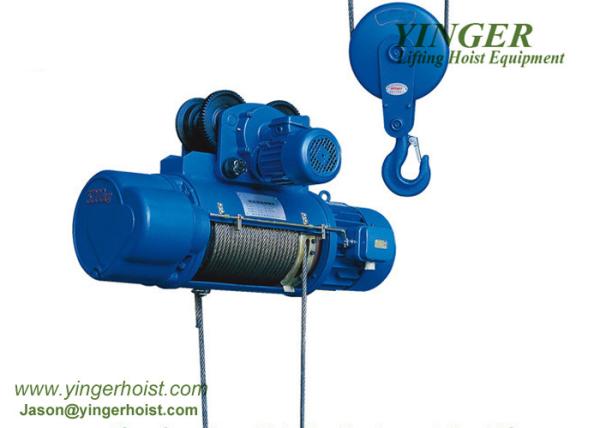

CD1 model electric hoist is a kind of small-lifting equipment. It can be mounted on single beam overhead cranes, gantry cranes, jib cranes. CD1 wire rope electric hoist as only one normal speed which can satisfy normal application. It is widely used in factories, mines, harbours, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.

1.Motor Hoist motor is an taper type rotor with braking, it is made by Nanjing special motor factory, it is the best quality motors, it has bigger torque. So it can be adapted to moving frequently.
2.Gear Box Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball roller bearing, to ensure smooth, low-friction operation.

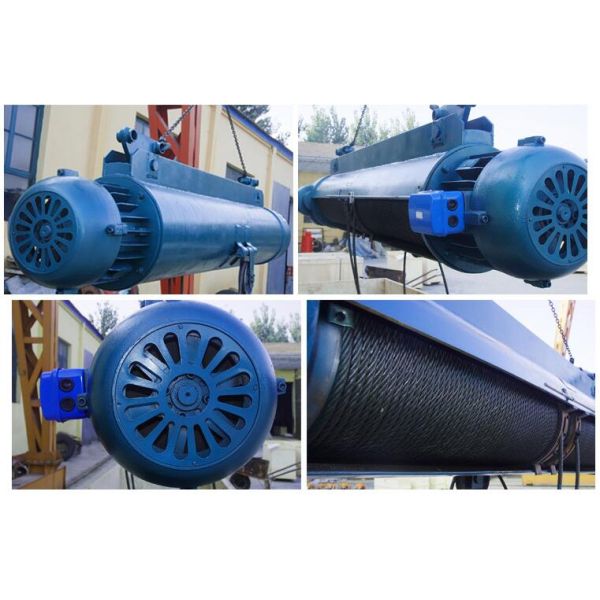

3. Rope Drum Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearing for ensuring smooth running.
4. Wire rope Hoist rope comply with the exporting ISO standards. The leading rope taken by the Drum, does not slip side way when slack. The factor of safety, on the nominal breaking strength of the rope is six.
5. Rope guider Rope guider is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the hoist is unloaded condition.
6.Hook The Hook Block is tested to 150% of full load before assembly. The rope sheaves are fully guarded with protective steel casting

Model 0.25TON 0.5TON 1TON 2TON 3TON 5TON 10TON
Capacity ton 0.25 0.5 1 2 3 5 10
Standard lift m 3-9 6-12 6-30 6-30 6-30 6-30 6-30
Lifting Height m/min 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7)
Running Speed m/min 20/30
Wire Rope type 6*19-3.6 6*37-4.8-180 6*37-7.4-180 6*37-11-155 6*37-13-170 6*37-15-200 6*37-15-200
I beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Loop track minimum Radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage V 380 380 380 380 380 380 380
Frequency HZ 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3
