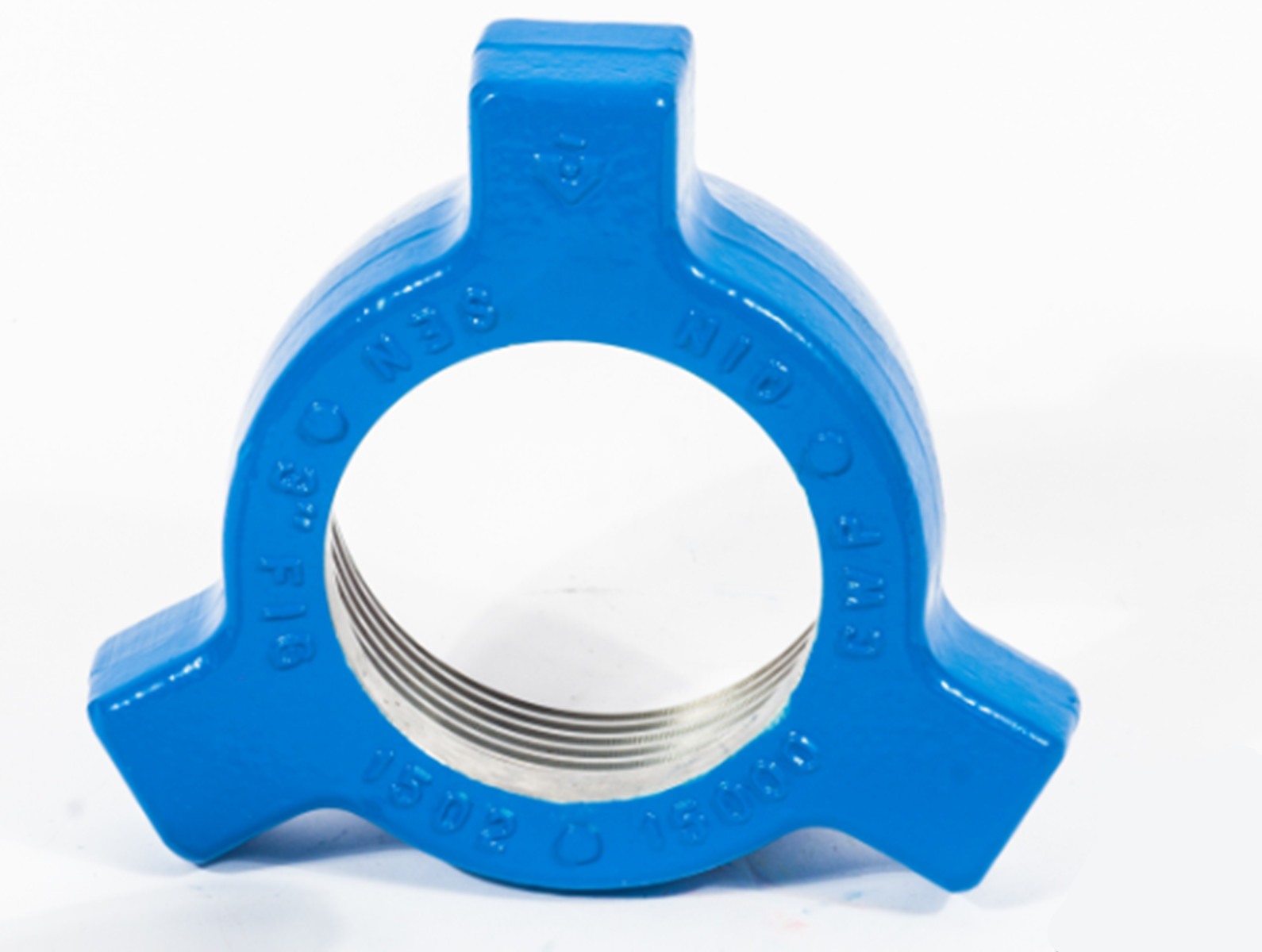

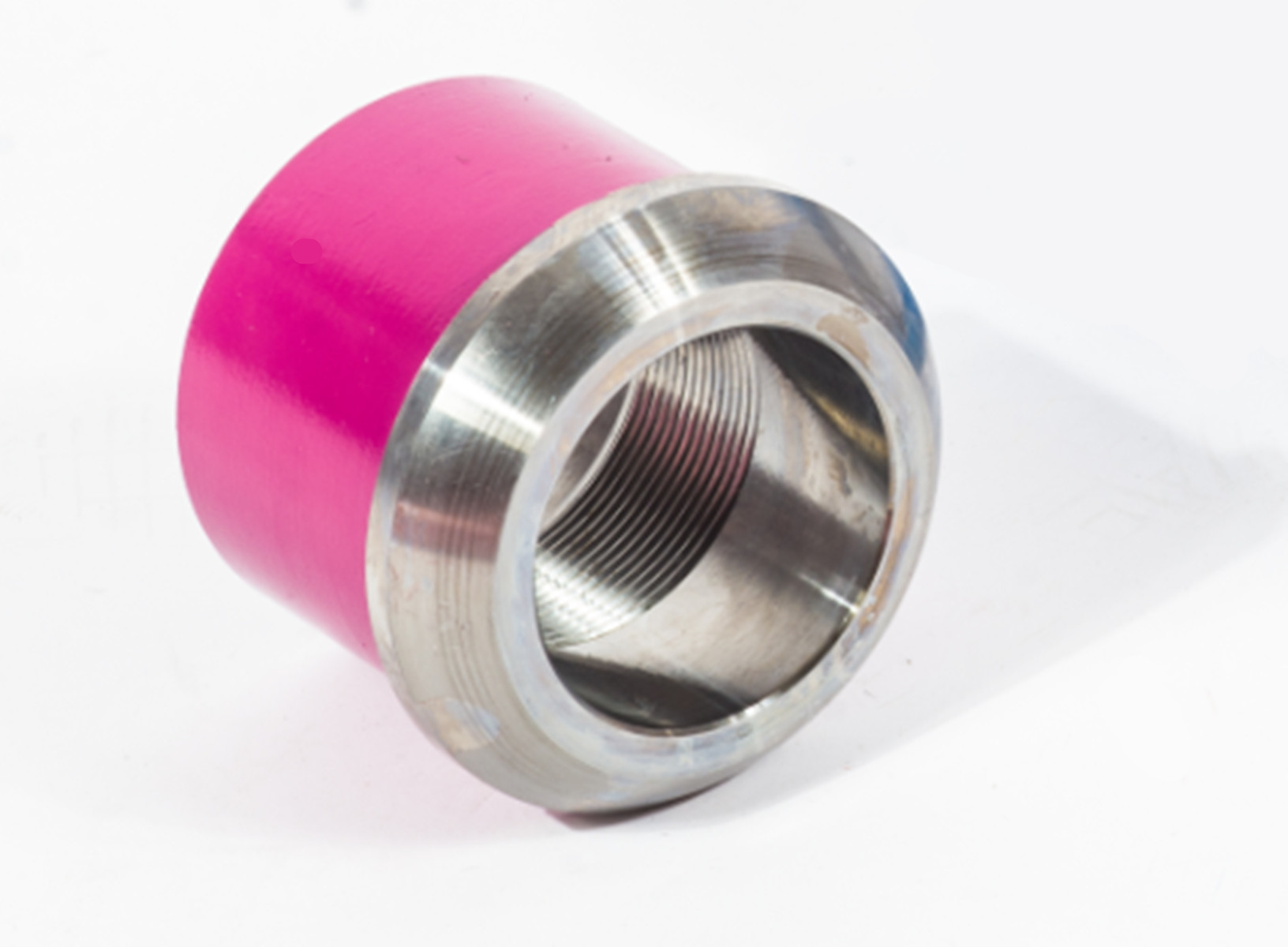

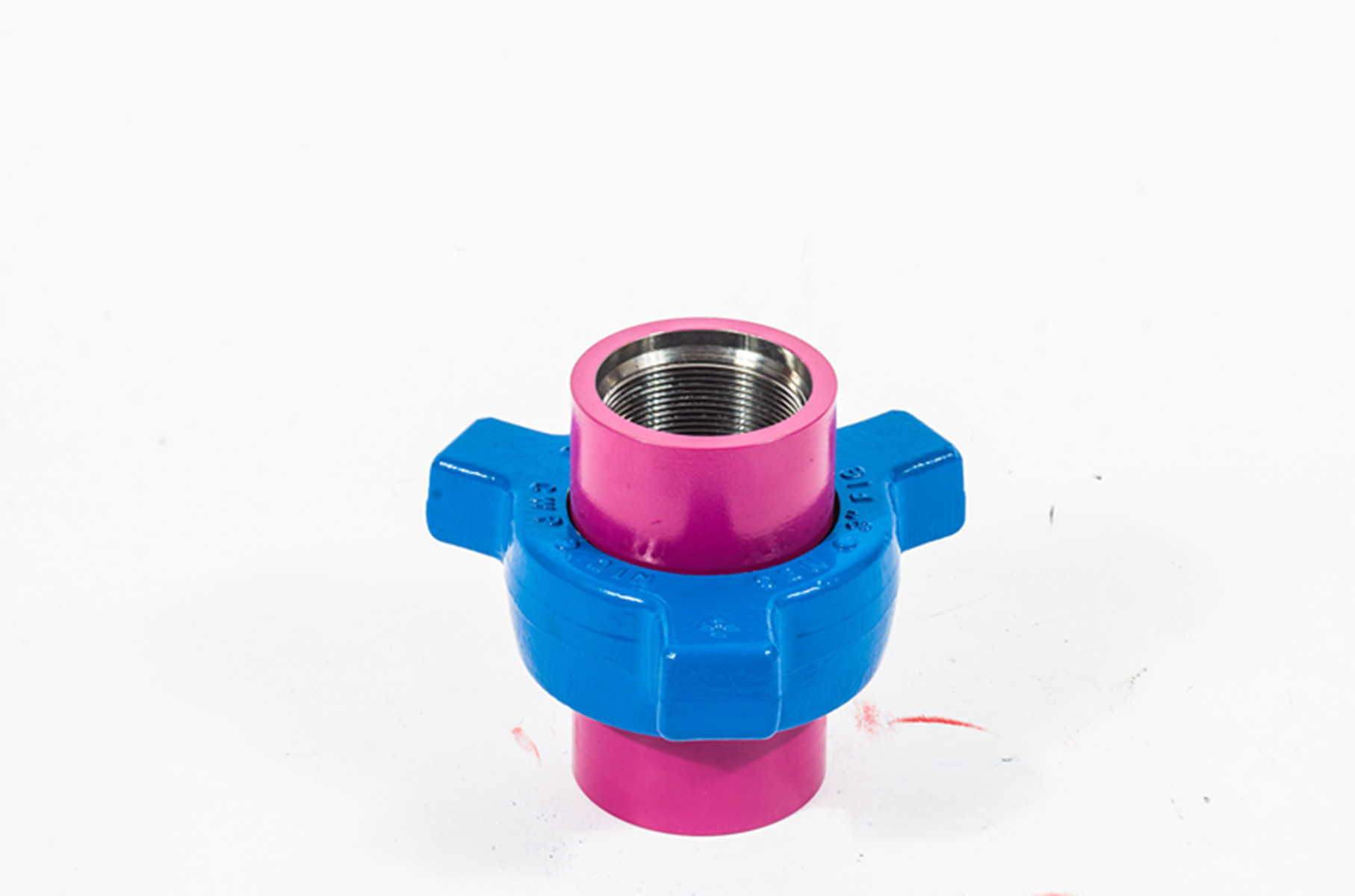

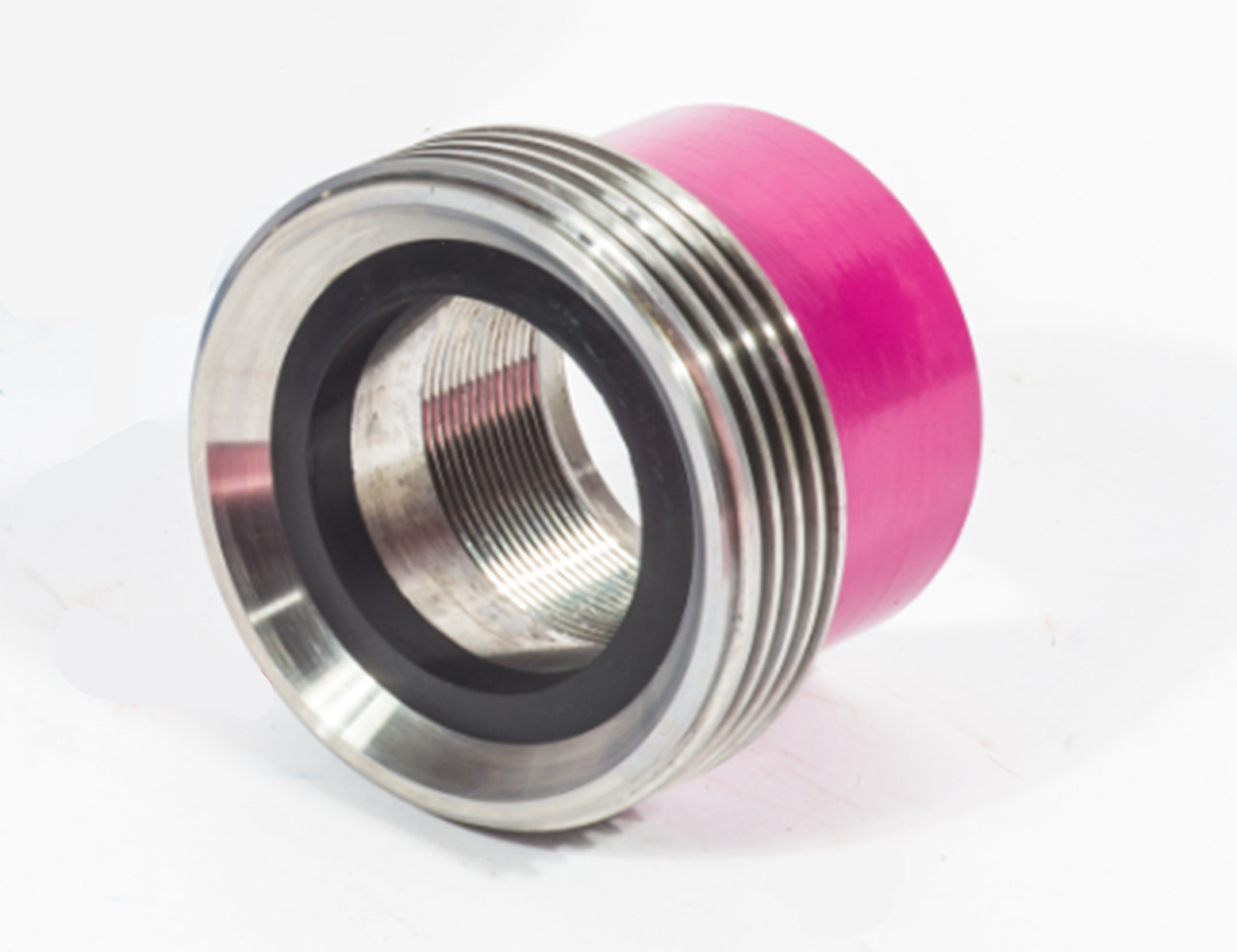

API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
API 6A Fig 1502 Hammer Union NPT Thread
Specifications
Model Number :
Fig1502
MOQ :
1 pcs
Manufacturing Process :
Forging
Material :
Alloy
Delivery Time :
in stock
Product Specification Level :
Psl1~Psl4
Type :
Hammer Union
Brand Name :
XI'AN RIG
Place of Origin :
China
Payment Terms :
L/C, T/T
Temp. Class :
L~U
Packaging Details :
Wooden Box
Working Pressure :
2000~15000psi
Certification :
API 6A
Description

API 6A High-Pressure Union Fig1502 NPT Thread Hammer Union for Oilfield

High pressure union, importing advanced technology, is forged with high-strength alloy steel, strict heat treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI standard, the technology indexes conform to API Spec 6A, the product adopts some end connection of pipeline thread, butt-weld and compress-seal.

Parameters of FIG 1502 Hammer Union
Nominal pipe size Total length Countersink Nut radius Material Weight
Nut Part
in mm in mm in mm in mm lb kg
1-1/2 38.1 5-13/32 137.0 1/4 6.4 3-21/32 93.0 SF SF 12.0 5.4
2 50.8 7 177.8 15/64 6.0 3-3/4 95.3 SF SF 21.0 9.5
3 76.2 7-5/8 193.7 3/8 9.5 4-1/2 114.3 SF SF 31.0 14.1
4 101.6 8-3/5 218.4 3/8 9.5 6 152.4 SF SF 74 33.7
