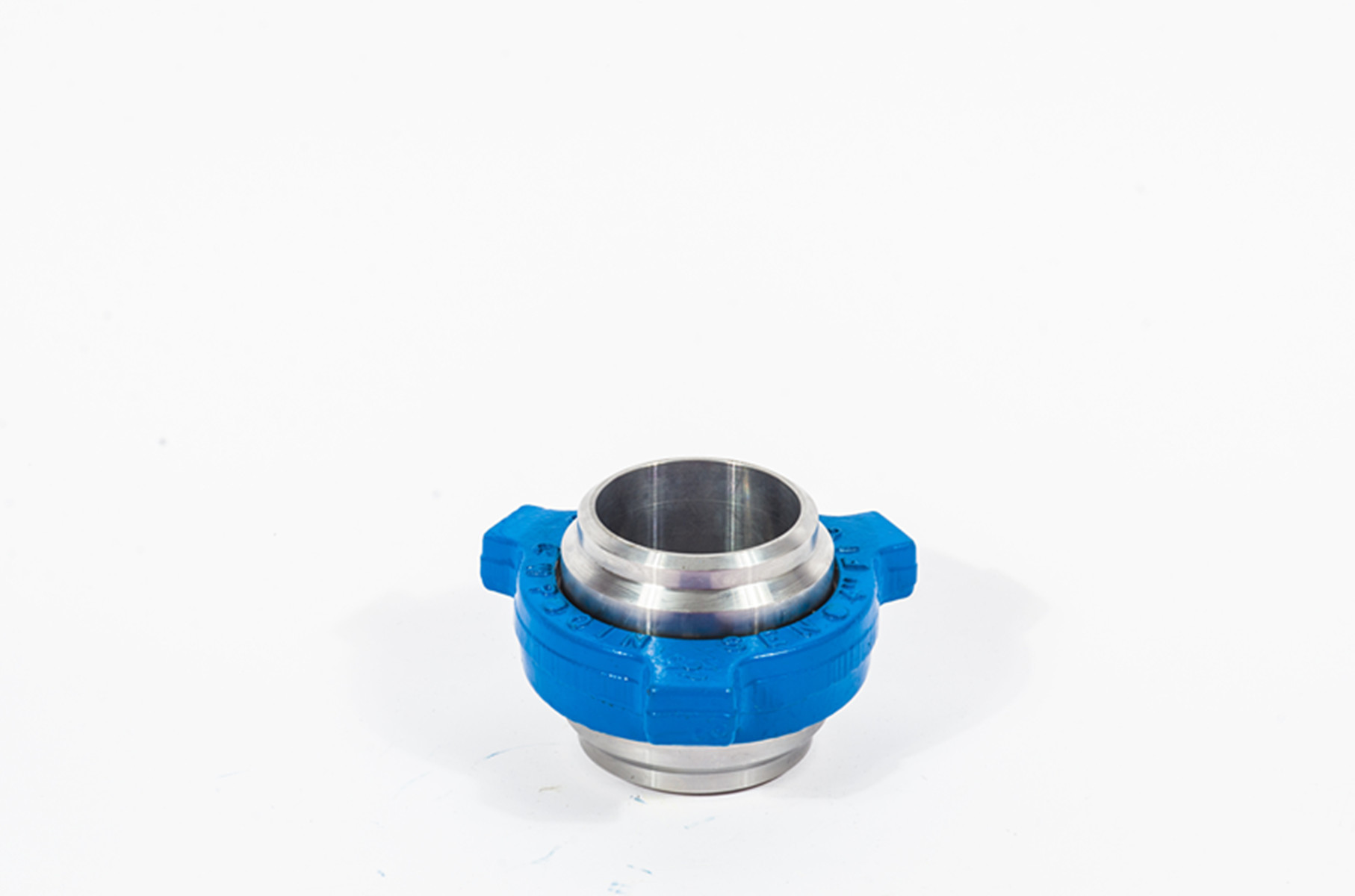

Fig200 API 6A Factory Best Price High-Pressure Union for Oilfield

Hammer union

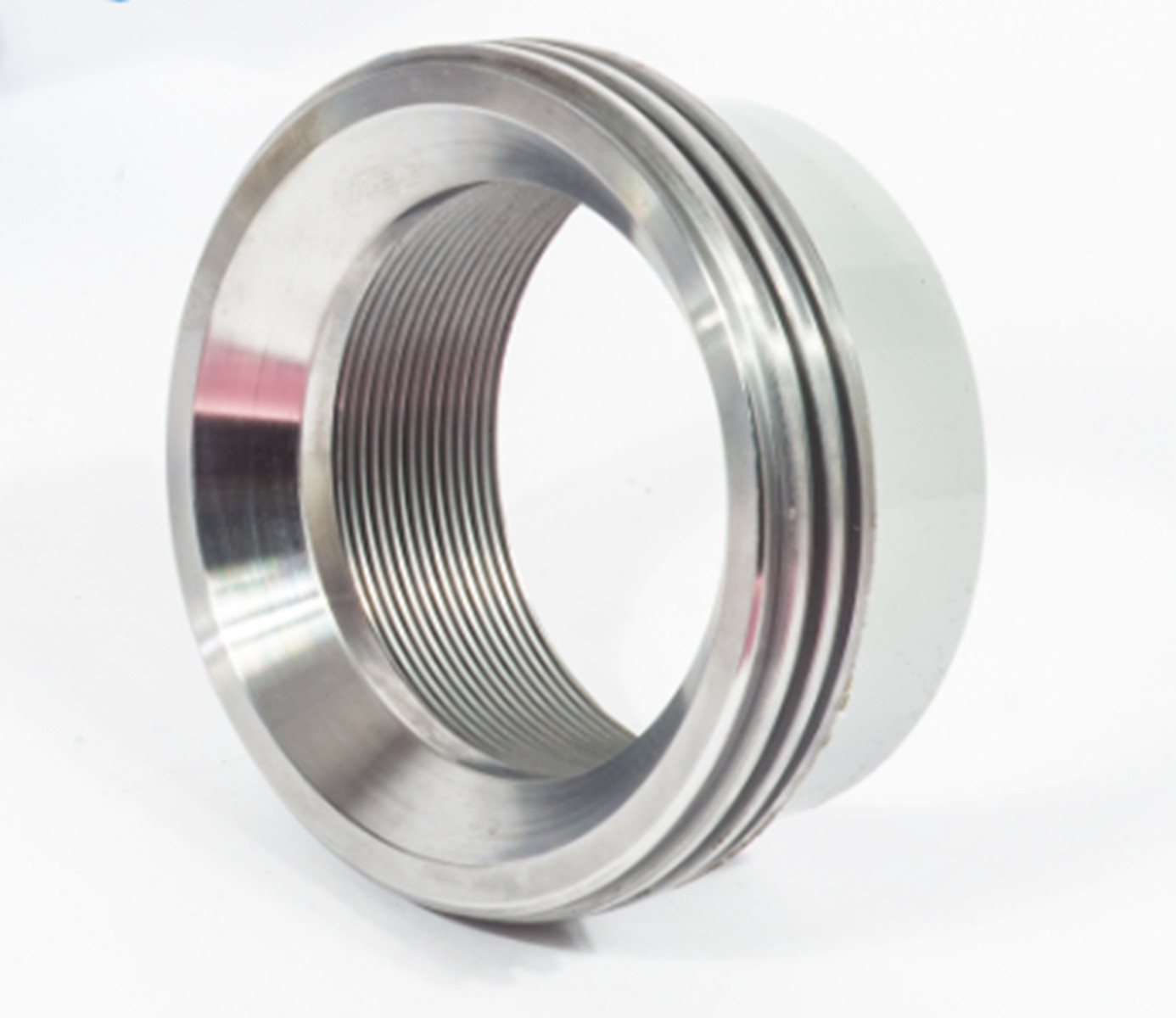

A hammer union (also known as WECO union) is a heavy-duty, high-ressure quickc-onnect fitting for piping systems. It consists of three core parts: male sub, female sub, and a threaded hammer nut with lugs. Designed for rapid assembly/disassembly with a sledgehammer, it delivers reliable, leak-tight connections in harsh industrial environments.

Hammer Unions can be used for cementing trucks, oil field applications, for quick connection on tank trucks and rail cars carrying of LPG, LNG, CNG, etc., all kinds of manifolds and other high pressure equipment and pipes. Hammer Unions have good mechanical performance and sealing property. Especially, they can operate under the bad weather condition. They can be assembled, fixed and
changed easily and conveniently. They are very easy to use as they are self-aligning, and do not require any special tools. It takes some seconds as compared to several minutes required with flanged connection. Hence in case of railway wagon loading, where large numbers of connections are to be made in each loading operation.

The assembly features a compact structure. It is widely used in low-pressure dead-end lines, and can also be applied to air, water, oil or gasoline services within the medium pressure range. Pipe thread and butt (SCH) connections are available.

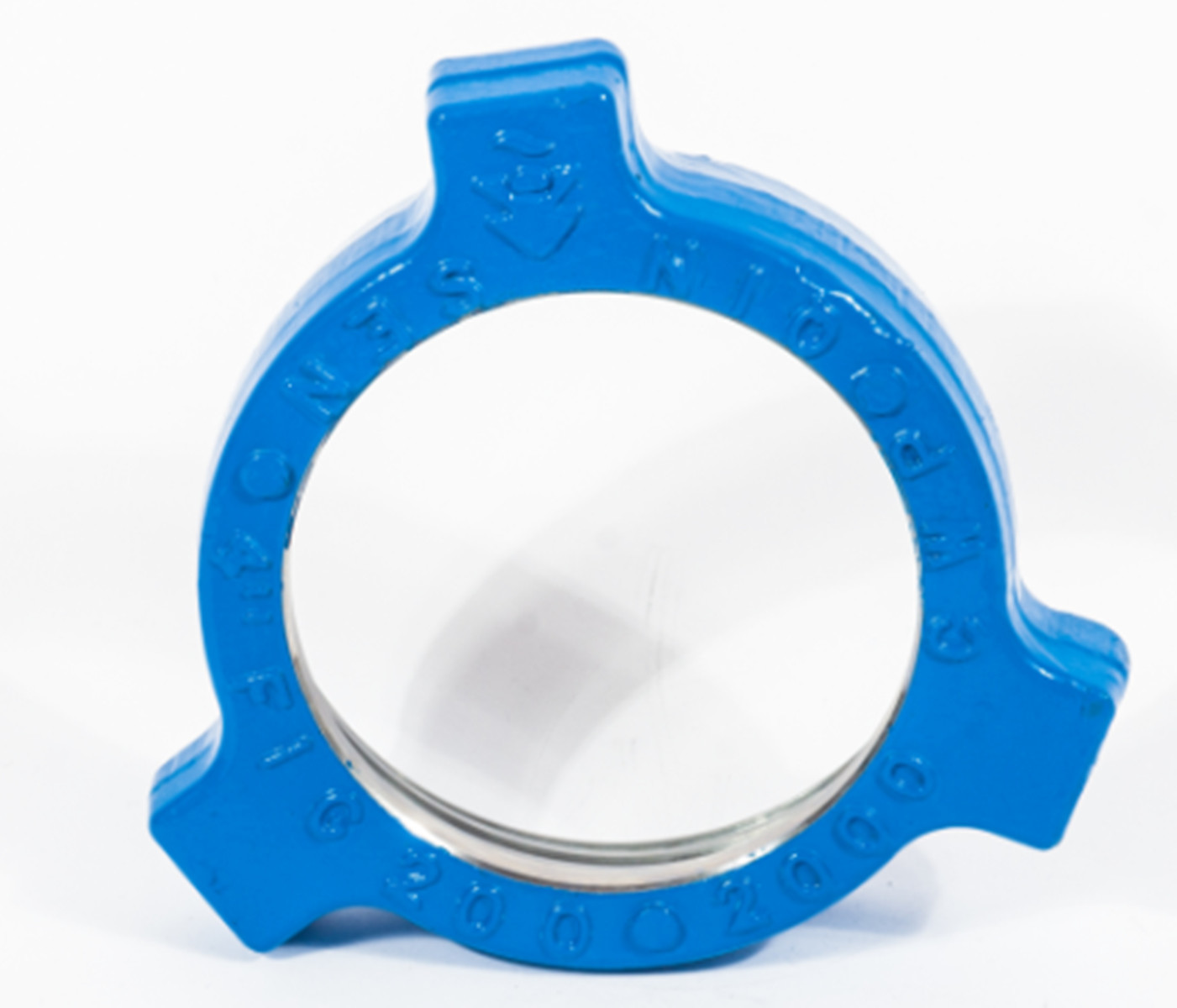

200,206 PSI NSCWP, test pressure 3000 PSI, blue nut, grey components.

Parameters of FIG 200 Hammer Union

Nominal pipe size Total length Nut radius Material Weight
Nut Part
in mm in mm in mm lb kg
1 25.4 2-11/16 68.3 1-15/16 49.2 SC/SF CDB/SF 1.75 0.8
1-1/4 31.7 2-7/8 73.0 2-3/8 60.3 SF SF 2.37 1.1
1-1/2 38.1 2-7/8 73.0 2-3/8 60.3 SF SF 2.37 5.4
2 50.8 3-5/16 84.1 2-29/32 73.8 SF SF 5.25 2.4
2-1/2 63.8 4-1/16 103.2 3-11/16 93.7 SF SF 10.0 4.5
3 76.2 4-3/8 111.1 3-7/8 98.4 SF SF 15.25 6.9
4 101.6 4-13/16 122.2 5 127.0 SF SF 20.0 9.1
6 152.4 6-5/8 168.3 6-7/16 163.5 SF SF 44.5 20.2

Parameters of FIG 1502 Hammer Union
Nominal pipe size Total length Countersink Nut radius Material Weight
Nut Part
in mm in mm in mm in mm lb kg
1-1/2 38.1 5-13/32 137.0 1/4 6.4 3-21/32 93.0 SF SF 12.0 5.4
2 50.8 7 177.8 15/64 6.0 3-3/4 95.3 SF SF 21.0 9.5
3 76.2 7-5/8 193.7 3/8 9.5 4-1/2 114.3 SF SF 31.0 14.1
4 101.6 8-3/5 218.4 3/8 9.5 6 152.4 SF SF 74 33.7
