Specifications
Payment Terms :
Western Union,D/P,T/T,D/A,L/C
Uvresistance :
Yes, UV stabilized
Environmentalfriendly :
Made from recycled wood and plastic
Durability :
High resistance to rot, corrosion, and insects
Maintenance :
Low maintenance, no painting required
Material :
Wood Plastic Composite (WPC)
Productname :
WPC Tube
Length :
Customizable, typically 2m to 6m
Place of Origin :
Zhejiang,China
MOQ :
400pcs or negotiation
Surfacefinish :
Smooth or textured wood grain
Fireresistance :
Class B1 (flame retardant)
Waterresistance :
High, waterproof
Supply Ability :
100containers per month
Price :
$1.3 or negotiation
Innerdiameter :
Varies depending on wall thickness
Model Number :
FS-50-50
Color :
Wood-like brown, gray, or customizable
Certification :
SGS,ISO
Brand Name :
Haining Vanshine
Delivery Time :
7-11 working days
Applications :
Construction, fencing, decking, furniture
Packaging Details :
carton
Description

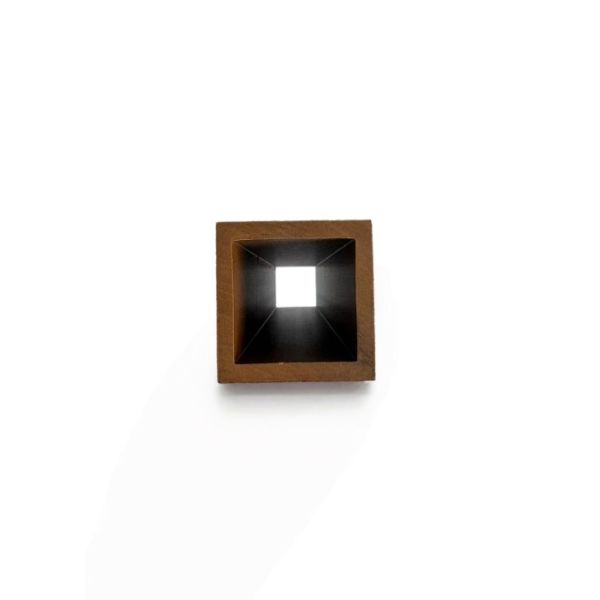

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

Product Summary


Engineered for heavy duty architectural landscaping this outdoor WPC tube functions as a premium sunshade pergola beam. Treated with a high performance UV resistant coating it withstands continuous intense sunlight exposure without suffering from cracks or fading.

Product Features


Extreme Outdoor Climate Endurance

Formulated using durable heavy polymers that endure freezing winters and boiling summers without splitting or decaying in open air environments.

Advanced Shield against UV Bleaching

Enhanced UV resistant coating encapsulates the outer layer preventing intense solar radiation from breaking down the rich wood look.

Excellent Stiffness for Garden Pergolas

Provides heavy duty rigidity and structural straightness across expansive open air spans keeping garden architecture aligned perfectly.

Decade Long Color Integrity Outdoors

Eliminates the typical yearly sanding and staining cycles needed for real timber elements subjected to harsh direct sunrays.

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

Performance Advantages


50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

Technical Specifications


NO. Test Items Requirements Results Test Methods
1 Surface abrasion resistance,g/100r ≤0.15,and the paint film is not worn through 0.100 ✔pass
2 Colour fastness to light, class Gray Card≥4 4 ✔pass
3 Formaldehyde emission,mg/m³ ≤0.05 Not detected ✔pass
4 Minimum concentrated load, N ≥3400 3492 ✔pass
5 Static bending strength,MPa ≥26.0 26.5 ✔pass
6 Elastic modulus, MPa ≥3000 4600 ✔pass
7 Water absorption, % ≤1.0 0.9 ✔pass
8 Falling hammer impact at low temperature No crackat thetemperature of -10°C pass ✔pass
9 Anti-slippery value ≥35 36 ✔pass


Certification


50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating


Section Designs


50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating


Colors


50mm Outdoor WPC Tube Pergola Beam With UV Resistant Coating

FAQ


Q1: Can this outdoor WPC tube beam be used as a structural load bearing column for roofing?

A1: It serves as an excellent decorative sunshade louvre beam for vertical load bearing structures we recommend inserting a steel box profile inside the core.

Q2: How much fading should I expect under tropical sun exposure after five years?

A2: Thanks to our advanced UV resistant coating the color shift is strictly controlled under safe limits making the change virtually unnoticeable.

Q3: Does the outdoor protective coating peel away or blister in wet weather?

A3: No the coating is molecularly bonded to the core compound during the high temperature extrusion manufacturing process preventing blistering completely.

Q4: What wind load capacity can this pergola beam handle once installed?

A4: When properly fixed into our structural steel mounting channels it can easily withstand heavy wind loads exceeding 120km per hour safely.
