Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Specifications
Certification :
SGS,ISO
Packaging Details :
carton
Place of Origin :
Zhejiang，China
Supply Ability :
100containers per month
Length :
1-6 meters
UV resistance :
Yes, UV stabilized
Material :
Wood Plastic Composite (WPC)
Outer diameter :
20mm to 100mm
Anti-slippery value :
≥35
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Wall thickness :
2mm to 5mm
MOQ :
400pcs or negotiation
Delivery Time :
7-11 working days
Water absorption :
≤1.0%
Brand Name :
Haining Vanshine
Elastic modulus :
≥3000 MPa
Minimum concentrated load :
≥3400 N
Model Number :
FS-150-50
Surface abrasion resistance :
≤0.15g/100r
Price :
$0.8-1.6or negotiation
Fire resistance :
Class B1 or equivalent
Static bending strength :
≥26.0 MPa
Description
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Product Overview

This heavy duty flame retardant WPC tube exterior fin offers robust safety defense for commercial towers. Protected by an expansive fifteen-year warranty, it guarantees developers lasting durability against weathering and material cracking.

Product Features
  • High Grade Flame Retardant Engineering: Formulated with premium fire suppressing compounds to check flame spread across exterior building curtain walls, fulfilling strict building codes.
  • Fifteen Year Structural Quality Protection: Enjoy reliable project security knowing the factory covers any abnormal warping, structural rot, or severe splitting for 15 years.
  • Self Extinguishing Properties for Facades: Provides major office landmarks with a safe cladding component that won't fuel accidental electrical fires around window ledges.
  • Long Term Protection for Commercial Capital: The 15-year warranty minimizes financial liability risks for general construction contractors dealing with large public tenders and high liability jobs.
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Installation Guide
Jointing Methods
  • Connector joint: Use matching metal/plastic internal/external connectors. Pre-drill holes and fix with stainless steel self-tapping screws.
  • Adhesive bonding: Apply WPC-specific adhesive/structural glue. Clean → glue → join → clamp → cure (24h).
  • 45° miter joint: Cut ends at 45° for corners; secure with angle brackets and screws.
Fixing Methods (Wall/Ceiling/Partition)
  • Clip-on (quick install): Use aluminum spring clips to attach directly to metal studs/frames; no screws, removable.
  • Bracket/angle fix: Use stainless steel L-brackets. Pre-drill tube walls, fasten to wall/ceiling substrate.
  • Pipe clamps/hangers: For horizontal runs, use U-clamps/hangers on light steel keels; spacing ≤ 60cm.
  • Post mounting (fence/grille): Embed posts in concrete or fix to ground with flange plates + expansion bolts.
Key Installation Tips
  • Cutting: Use fine-tooth saw/circular saw; keep cuts clean and deburred.
  • Expansion gap: Leave 3-5mm between tubes for thermal expansion.
  • Pre-drill: Always pre-drill before screwing (hole ≈ 3/4 screw diameter) to avoid cracking.
  • Drainage: Install outdoor tubes with slight slope or drill drain holes to prevent water buildup/mold.
Performance Advantages
Flame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Technical Specifications
NO.Test ItemsRequirementsResultsTest Methods
1Surface abrasion resistance,g/100r≤0.15,and the paint film is not worn through0.100✔pass
2Colour fastness to light, classGray Card≥44✔pass
3Formaldehyde emission,mg/m³≤0.05Not detected✔pass
4Minimum concentrated load, N≥34003492✔pass
5Static bending strength,MPa≥26.026.5✔pass
6Elastic modulus, MPa≥30004600✔pass
7Water absorption, %≤1.00.9✔pass
8Falling hammer impact at low temperatureNo crack at the temperature of -10°Cpass✔pass
9Anti-slippery value≥3536✔pass
Certification
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Available Colors
Flame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Section Designs
Flame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite Tube

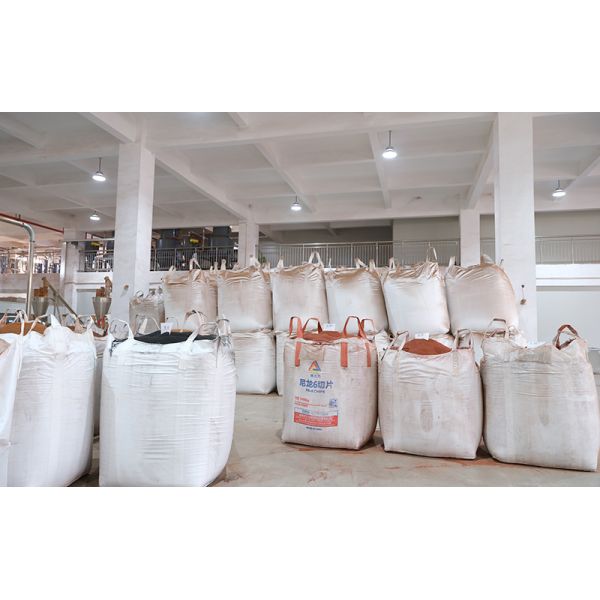

Our Factory
Flame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite TubeFlame Retardant WPC Tube Exterior Wood Plastic Composite Tube
Frequently Asked Questions
Q1: Does the flame retardant chemical wash away from the WPC tube after years of rain?
A1: No, the flame retardant crystals are chemically bonded within the entire polymer core mix during melting; it cannot leach out via rainwater.
Q2: Does the fifteen year warranty remain valid in hot desert climates like the Middle East?
A2: Yes, the warranty explicitly covers installations in high temperature deserts, provided the standard expansion ventilation gaps are implemented.
Q3: What happens if a segment shows early splitting under the fifteen year warranty?
A3: If a manufacturing defect causes cracking within the 15-year frame, we will provide free replacement profiles according to our terms.
Q4: Does the core compound absorb heat easily making the facade hot?
A4: It has low thermal conductivity compared to metal aluminum fins, helping the building envelope stay insulated and cool.
