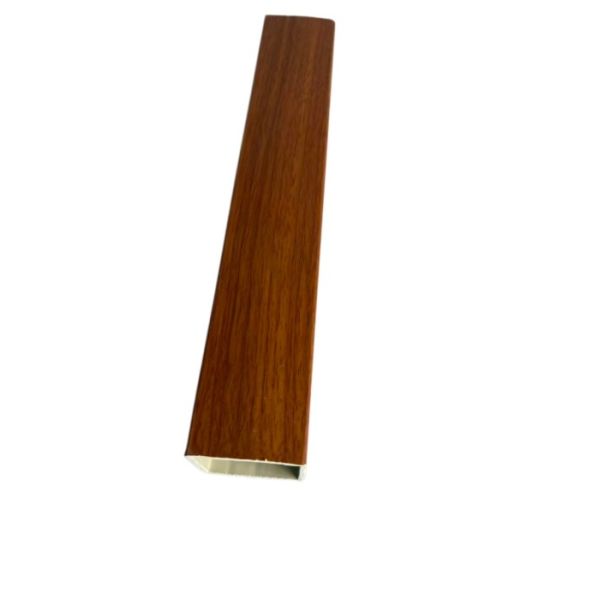

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System
50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System
50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System
50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System
50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System
50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System
Specifications
Brand Name :
Haining Vanshine
Applications :
Construction, fencing, decking, furniture
Price :
$0.58-1.8 or negotiation
Color :
Wood-like brown, gray, or customizable
Material :
Wood Plastic Composite (WPC)
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
MOQ :
400pcs or negotiation
Delivery Time :
7-11 working days
Innerdiameter :
Varies according to outer diameter
Durability :
Long-lasting, rot and insect resistant
Packaging Details :
carton
Uvresistance :
Yes, UV stabilized
Length :
Customizable, typically 2m to 4m
Model Number :
FS-50-50
Waterresistance :
High, waterproof
Place of Origin :
Zhejiang，China
Installation :
Easy to cut, drill and install
Fireresistance :
Class B1 or equivalent
Certification :
SGS,ISO
Supply Ability :
100containers per month
Product Name :
50*50 Waterproof PVC Tube Wall Partition
Environmentalfriendly :
Yes, made from recycled materials
Description

50*50 Waterproof PVC Tube Wall Partition With Snap Lock System

Product Summary

This waterproof PVC tube wall partition is specially developed for humid environments like commercial washrooms and spa lounges. Equipped with an integrated snap lock system it streamlines the construction workflow by reducing professional labor hours and costs.

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

Product Features

Total Waterproofing for Humid Zones

The heavy duty PVC compound ensures absolute moisture resistance protecting the partition structure from swelling or delamination.

Tool Free Snap Lock Alignment

The precision engineered snap lock mechanism ensures perfect alignment without requiring specialized mounting brackets.

Moisture Resistance to Prevent Warping

Moisture cannot penetrate the non porous surface inhibiting wood rot and ensuring long term stability in commercial damp spaces.

Halved Labor Expenses via Fast Locking

Contractors can cover wall partition frameworks in half the time compared to traditional battens lowering project expenditure.

Technical Specifications

NO. Test Items Requirements Results Test Methods
1 Surface abrasion resistance,g/100r ≤0.15,and the paint film is not worn through 0.100 ✔pass
2 Colour fastness to light, class Gray Card≥4 4 ✔pass
3 Formaldehyde emission,mg/m³ ≤0.05 Not detected ✔pass
4 Minimum concentrated load, N ≥3400 3492 ✔pass
5 Static bending strength,MPa ≥26.0 26.5 ✔pass
6 Elastic modulus, MPa ≥3000 4600 ✔pass
7 Water absorption, % ≤1.0 0.9 ✔pass
8 Falling hammer impact at low temperature No crackat thetemperature of -10°C pass ✔pass
9 Anti-slippery value ≥35 36 ✔pass

Application Gallery

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

How to Install

  • Cutting: Mark the size, cut vertically with cutter, trim burrs smoothly.
  • Bonding: Wipe pipe and fittings clean. Apply special PVC glue, insert tightly and twist slightly, leave to set.
  • Fixing: Fasten with clamps for ceiling/wall mounting. Lock buckles for partition assembly.
  • Finishing: Adjust gaps, clean excess glue, use after full curing.

Our Factory

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System


Colors

50*50mm WPC Square Tube Waterproof PVC Tube Wall Partition With Snap Lock System

FAQ

Q1: Can this waterproof PVC tube be installed directly inside a shower cubicle?

A1: It is excellent for wet areas like restroom walls but we do not recommend direct prolonged water submersion inside a closed shower cell.

Q2: Do I need to buy special metal tracks for the snap lock system?

A2: We supply the matching aluminum or galvanized steel click rails together with the tubes to ensure a perfect interlocking fit.

Q3: Will the snap lock system loosen after years of commercial traffic vibration?

A3: No the high tension interlocking clip design maintains continuous pressure ensuring the partition walls stay firm and rattle free.

Q4: How thickness is the snap lock rail provided with the cargo?

A4: The standard matching rail is made of 0.8mm thickened galvanized steel to provide solid structural anchoring for the tubes.
