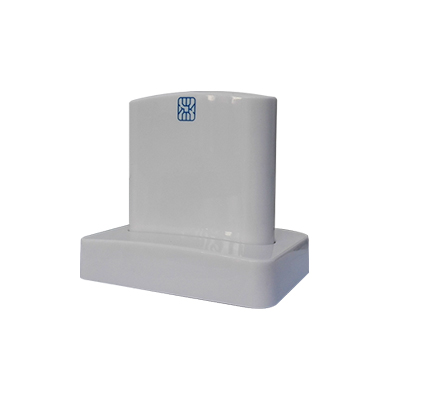

MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
Specifications
type :
Other Type
Interface :
usb
Host Interface: :
USB 2.0 CCID (USB 1.1/3.0 compliant)
USB Connector: :
USB Type A
Smart Card Interface Speed :
Up to 600 kbps (depending on card)
Card Size: :
ID-1
Support Systems: :
Win2000+/Linux/MacOS/Android
Driver: :
PC/SC Driver
Description
Product Description

MCR3523 Contact Smart Card Reader with PSAM

MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket

• READY TO USE
Driver support for all major PC operating systems
• SUPPORTS ALL APPLICATIONS
Supports all major smart card ICs and technologies in just one device
• FAST
Transaction time optimized for maximum end-user acceptance
• CONVENIENT
Ultra-compact and robust design streamlined for mobile operation
MCR3523 is a contact smart card reader with PSAM, Compared with other smart card readers on the market, it has three main features: One is that we have specially added a counterweight for it, The product weighs 405g, which is more suitable for one-handed operation on the desktop and is more convenient; the other Is the reader adopts a landing IC card socket; The third point is that it has a PSAM card slot inside, Through the PSAM card, the IC card can be authenticated through the terminal, which is very suitable for transportation, finance, medical, social security and other industries;
Specification
PARAMETER
MCR3523
Host Interface
USB 2.0 full speed (12 Mbps)
Smart Card Interface
Supported Standards
ISO/IEC 7816 Part 1 to 4
Supported Tag ICs
All major ISO/IEC 7816 compliant Smart Card IC support
Smart Card Protocols
T=0, T=1，synchronous cards I2C and 3-wire
Smart Card Interface Speed
• Up to 600 kbps (depending on card)
• TA1=97
Smart Card Clock Frequency
ISO/IEC 7816 compliant; Operates up to 16 MHz
Supported Smart Card Types
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to Smart Card
60mA in Class A; 55mA in Class B; 35mA in Class C
Smart Card Detection
• Card present switch
• Automatic power on/off
• Short circuit protection
Card Size
ID-1, SIM Card (PSAM)
Contact Type
Landing Contact Socket (8 pin)
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.0
• Windows® XP/Vista/7/8/10 (32/64 bit), Windows® Server 2003/2008/2012, Windows® CE 6.0, 7.0
• MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x
• Linux 2.4.x, 2.6.x (32/64 bit)
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• Synchronous-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

< 20 mA with standard smart, < 500 μA in Standby Mode
Dimensions

95x 65 x 98mm
Weight

405 g ± 5% / 0.15 lb ± 5%
Operating Temperature Range

0° to 50° C (32° to 122° F)
Storage Temperature Range

-20° to 60°C (-4° to 140° F)
Operating Humidity Range

Up to 95% RH non-condensing
Durability
Landing contact 50,000 card insertions
Connector

1.5m long with USB type A connector
Status Indicator

Green LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
No
Company Profile
MARKLAND was founded with its headquarters established in Hong Kong.
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
Main Business:The company specializes in:



• e-Passport reader and scanner
• ID card identification devices
• Smart card read/write devices
• RFID/NFC applications
• Physical security devices • Biometric devices • Biometric Registration Kits


MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket

Experience:

The core team has over 20 years of experience in the industry.

Strategy:

Hong Kong is utilized as a strategic hub to integrate global scientific and technological advancements, innovative application concepts, and localized optimizations.

Goal:

Aims to provide international products and services that incorporate the latest global innovations.

Innovation and Development:

• Independent research and development capabilities. • Holds 1 invention patent, 25 utility model patents, and 11 software copyrights.
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket

Applications:

Involved in sectors like e-Government, e-Police, e-Tax, passenger transportation,identification management, information security, Elections, national ID card registration/verification, card issuance, census, refugee registration, KYC, IOT etc.
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket

Commitment:

Committed to ongoing scientific research and innovation.

Collaboration:

Actively seeks cooperation with industry customers to create a better future.

Core Values：

Innovation in design and product creation Flexibility in business and partnership Adaptation in a fast changing global market
MCR3523 USB Smart Card Reader with PSAM/SAM ISO7816 - landing socket
Please contact us for more information and to start your personalized service journey！
