Specifications
type :
Other Type
Interface :
TYPE-C
Host Interface :
USB 2.0 CCID (USB 1.1/3.0 compliant)
USB Connector :
USB Type C
Contact card Supported Standard :
ISO7816 Part 1 to 4
Contact Card Interface Speed :
Up to 600 kbps (depending on card)
Card Size :
ID-1 (full-size)
Driver :
PC/SC
Support Systems :
Win2000+/Linux/MacOS/Android
Warranty :
1year
Certification :
CE
Customized support :
Contact Us
Description
Product Description

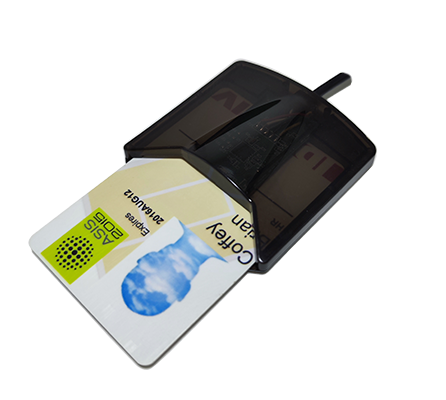

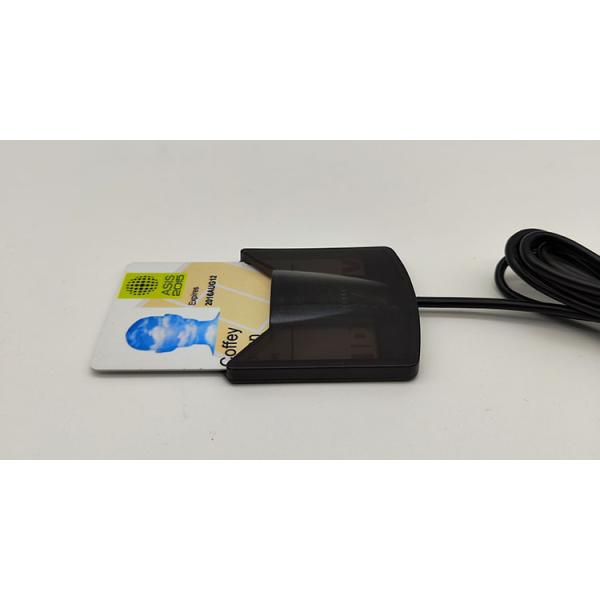

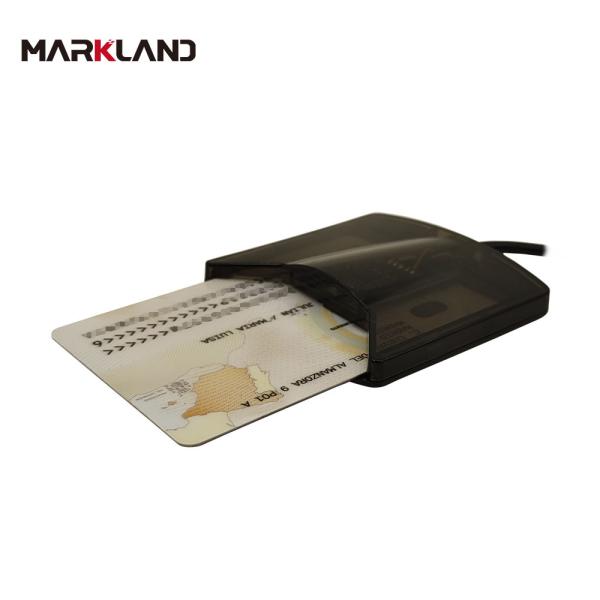

MCR3508C USB C Contact Smart Card Reader

This USB Type C PC/SC ultra-compact reader / writer - ideal for online banking / secure access / ID card reader
MCR3508C USB Type C Smart Card Reader Support ISO7816 CAC DOD Government Corporate Medical EID Contact Chip IC Common Access Car

• READY TO USE
Driver support for all major PC operating systems
• SUPPORTS ALL APPLICATIONS
Supports all major smart card ICs and technologies in just one device
• FAST
Transaction time optimized for maximum end-user acceptance
• CONVENIENT
Ultra-compact and robust design streamlined for mobile operation
• Classic Appearance
Innovative black transparent shell design

The MCR3508 is the ideal PC-Linked USB contact smart card reader for a huge variety of applications. Providing full compliance with all major industry standards such as ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL the MCR3508 seamlessly works with virtually all contact smart cards and PC operating systems. Full support and compliance to EMV 2011 and GSA FIPS 201 expands daily use to applications requiring additional security and data protection. MCR3508 represents the perfect mix between modern stylish design, ergonomic handling, and a compact footprint. The extended card data transmission rate of up to 600 kbps with the support of TA1=97 enables the shortest possible transaction time for maximum end-user convenience. The Identiv-specific SmartOS™ features easy and complete support of all major contact smart cards. With MCR3508, the end user experiences convenience, transactiontime efficiency, security, and reliability for applications including network log-in, Windows authentication and Single Sign-On (SSO), banking and cashless payment applications, and high-security use cases for federal governments.
MCR3508C USB Type C Smart Card Reader Support ISO7816 CAC DOD Government Corporate Medical EID Contact Chip IC Common Access Car
Specification
PARAMETER
MCR3508C
Host Interface
USB 2.0 full speed (12 Mbps)
Smart Card Interface
Supported Standards
• ISO/IEC 7816 Part 1 to 4
• EMV 2011 Ver 4.3 Level 1 (compliant)
Supported Tag ICs
All major ISO/IEC 7816 compliant Smart Card IC support
Smart Card Protocols
T=0, T=1，synchronous cards I2C and 3-wire
Smart Card Interface Speed
• Up to 600 kbps (depending on card)
• TA1=97
Smart Card Clock Frequency
ISO/IEC 7816 compliant; Operates up to 16 MHz
Supported Smart Card Types
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to Smart Card
60mA in Class A; 55mA in Class B; 35mA in Class C
Smart Card Detection
• Card present switch
• Automatic power on/off
• Short circuit protection
Card Size
ID-1
Contact Type
• 8 pin ID-1 Sliding Contact Socket
• C4/C8 support
• Card detect switch
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.0
• Windows® XP/Vista/7/8/10 (32/64 bit), Windows® Server 2003/2008/2012, Windows® CE 6.0, 7.0
• MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x
• Linux 2.4.x, 2.6.x (32/64 bit)
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• Synchronous-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

< 20 mA with standard smart, < 500 μA in Standby Mode
Dimensions

60.5 x 69 x 10.8 mm
Weight

50 g ± 5%
Operating Temperature Range

0° to 50° C (32° to 122° F)
Storage Temperature Range

-20° to 60°C (-4° to 140° F)
Operating Humidity Range

Up to 95% RH non-condensing
Durability
Sliding contact 100,000 card insertions
Connector

1.5 m long with USB type C connector
Status Indicator

Green LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
No
Certifications and Compliances
Systems/Standards
EMV 2011 Ver 4.3 Level 1(compliant only), ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® HCK
Regulatory/Environmental
CE, FCC, UL 60950, GSA APL, RoHS2, REACH, WEEE
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM

Support customer customization and provide personalized smart card solutions
