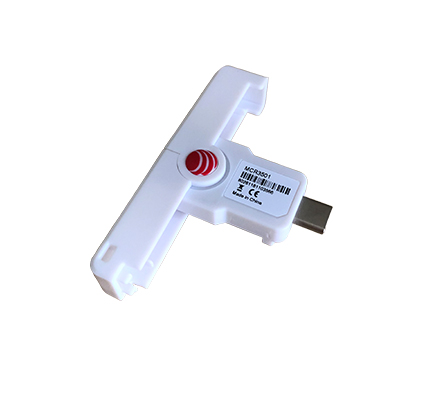

MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816
Specifications
type :
Other Type
Interface :
TYPE-C
Host Interface: :
USB 2.0 CCID (USB 1.1/3.0 compliant)
USB Connector: :
USB Type C
Smart Card Interface Speed :
Up to 600 kbps (depending on card)
Card Size: :
ID-1,Nano SIM size
Driver: :
PC/SC Driver
Support Systems: :
Win2000+/Linux/MacOS/Android
Description
Product Description

MCR3501 C Contact Smart Card Reader (USB Type C interface)

MCR3501C SmartFold tiny mobile contact smart card reader with USB Type C interface, for contact cards ISO7816

• READY TO USE
Driver support for all major PC operating systems
• SUPPORTS ALL APPLICATIONS
Supports all major smart card ICs and technologies in just one device
• FAST
Transaction time optimized for maximum end-user acceptance
• CONVENIENT
Ultra-compact and robust design streamlined for mobile operation

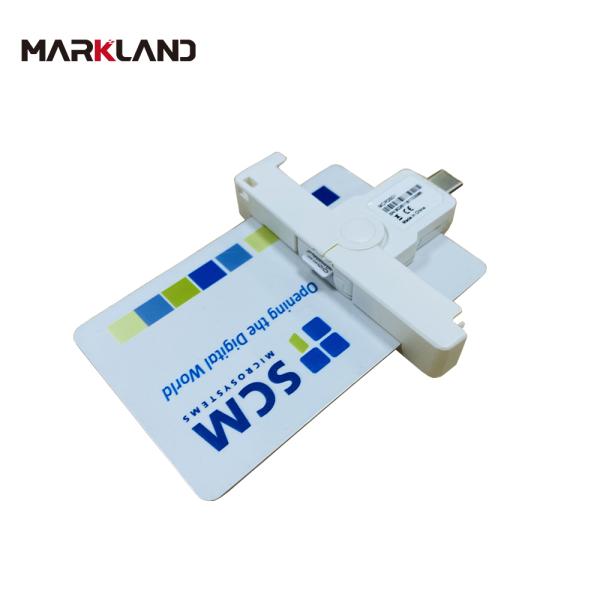

MCR3501 with USB Type C interface, it can become a card reader for reading and writing contact smart cards by gently opening the shell. Although it is smaller than a desktop card reader, it can support extremely demanding smart card applications, create value for you and provide reliable features to meet security requirements. MCR3501 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. It supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC) and SIPRNET Card. This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications. MCR3501 adopts the Identiv chip solution and supports all the functions of the Identiv contact smart card reader, such as compatible with SCR3310V2.0. MCR3501 can be easily integrated into a computer-based or mobile device-based environment, and its drivers are compatible with operating systems such as Windows, Linux, Mac OS, and Android. This stylish and simple foldable card reader is designed to be used anytime, anywhere, and is perfect for your smart card solution.
Specification
PARAMETER
MCR3501C
Host Interface
USB 2.0 full speed (12 Mbps)
Smart Card Interface
Supported Standards
ISO/IEC 7816 Part 1 to 4
Supported Tag ICs
All major ISO/IEC 7816 compliant Smart Card IC support
Smart Card Protocols
T=0, T=1
Smart Card Interface Speed
• Up to 600 kbps (depending on card)
• TA1=97
Smart Card Clock Frequency
ISO/IEC 7816 compliant; Operates up to 16 MHz
Supported Smart Card Types
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to Smart Card
60mA in Class A; 55mA in Class B; 35mA in Class C
Smart Card Detection
• Card present switch
• Automatic power on/off
• Short circuit protection
Card Size
ID-1 or ID-4
Contact Type
Sliding Contact Socket (ID-1 8 pin or ID-4 6 pin)
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.01.14 for:
• Windows® XP/Vista/7/8/10 (32/64 bit), Windows® Server 2003/2008/2012, Windows® CE 6.0, 7.0
• MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x
• Linux 2.4.x, 2.6.x (32/64 bit)
• Android 4.0 and higher
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• Identiv Android CCID Library
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

< 20 mA with standard smart, < 500 μA in Standby Mode
Dimensions

49 x 22 x 13.5 mm
Weight

15 g
Operating Temperature Range

0° to 50° C (32° to 122° F)
Storage Temperature Range

-20° to 60°C (-4° to 140° F)
Operating Humidity Range

Up to 95% RH non-condensing
Connector

USB Type C connector
Status Indicator

LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
No
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software: - Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions; - Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules； Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.

OEM & ODM

Support customer customization and provide personalized smart card solutions
