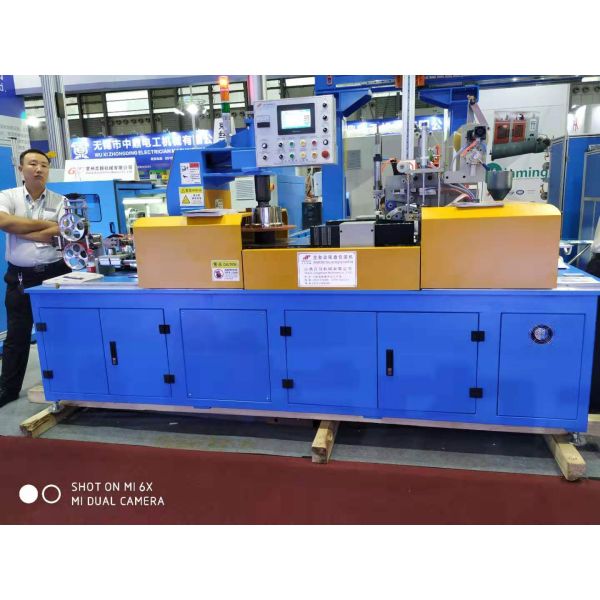

High Speed Wire Take Up Machine Automatic Coiling And Wrapping Machine
High Speed Wire Take Up Machine Automatic Coiling And Wrapping Machine
Specifications
Brand Name :
qipang
Model Number :
QP1040
Certification :
ISO certification
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20 PC per day
Delivery Time :
30 working days
Packaging Details :
wooden box
Coiling and Wrapping Machine :
Qipang High-speed Automatic Coiling and Wrapping Machine
Type :
QP1040
Power :
5.5kw
maintain :
support video
Wire range :
2.5-12 mm
Voltage :
380V
Application :
Electric wire and cable industry
Weight :
2000kg
Description

Qipang 1040 High-speed Automatic Coiling and Wrapping Machine

Technical Parameters

Machine Type Height Inner diameter(MM) wire Diameter(MM) Out Diameter(MM) Packaging material Average line volume output speed
QP1040 50-100 130-200 1.5-10 220*400 PVC/PE 2-2.5 Volume/minute(100m)
QP1860 80-180 200-250 5-18 250-600 PVC/PE 1-1.5 Volume/minute(100m)

Model QPX630 QPX 800 QPX 1000 QPX 1250
Take-up line diameter φ2-φ5mm φ2-φ6mm φ3-φ12mm φ3-φ18mm
Take-up reel ≤630mm ≤800mm ≤1000mm ≤1250mm
Take-up speed 400m/min 400m/min 300m/min 200m/min
Take-up strength 25N/M 25N/M 36N/M 50N/M
Take-up motor 4KW 4KW 5.5KW 7.5KW
Cable way Precision cable arranging device Precision cable arranging device Precision cable arranging device Precision cable arranging device
Lifting of the reel Electric/hydraulic Electric/hydraulic Electric/hydraulic Electric/hydraulic
Cable clamping Pneumatic / hand crank Pneumatic / hand crank Pneumatic / hand crank Pneumatic / hand crank

Detail Picture

Equipment use: High-speed automatic coiling and packing machine for various wire and cable


Packaging materials: PVC film / PE film / PP film / paper tape, braid


Features:


1. With Siemens PLC automatic control, touch-type human-machine interface, the operation is simple and clear.


2. This use of the private service motor cable system, the cable effect is more ideal.


3. The cable is wound, the packaging is completed in sequence, and the production speed is fast.


4. Automatically adjust the hoop arm, free of manual adjustment.


5. Automaticlabelingmachine, free of manual labeling, safer and more convenient.


6. When there is a problem, an error is automatically detected and a warning is sent to alert the operator.


7. It not only saves manpower expenditure, expands production capacity, but also boosts industrial automation.

High Speed Wire Take Up Machine Automatic Coiling And Wrapping Machine

High Speed Wire Take Up Machine Automatic Coiling And Wrapping Machine

Our Advantage

1. We are very familiar with your market, know market requirement. I have many clients in your country.

2. We are familiar with your market laws and regulations, import procedures and test requirements.

3. I can help you find the transportation company with the lowest cost and guarantee the safety of the goods.

4. We have SGS , CE certification and third party inspection, Import and export rights

We adopt professional person to carry on packing, confirm is the standard export requirement.We can also help you to find an

advantageous transportation company, to help you reduce transportation costs.

High Speed Wire Take Up Machine Automatic Coiling And Wrapping Machine

High Speed Wire Take Up Machine Automatic Coiling And Wrapping Machine

We are producting and selling :rolling ring drives/traverse unit, linear drives,linear drives nut,wire straightening machine ,automatic wire straightening and cutting machine ,take up and put paying off machine ,wire and cable coiling winding machine ,Automatic Coiling and Wrapping Machine, automatic yarn winding machine for ribbons ,accessories for rolling ring drives

Could you provide me more details about the products that you are interested. Such as: the picture, the size, the model. I help you to look for it.
