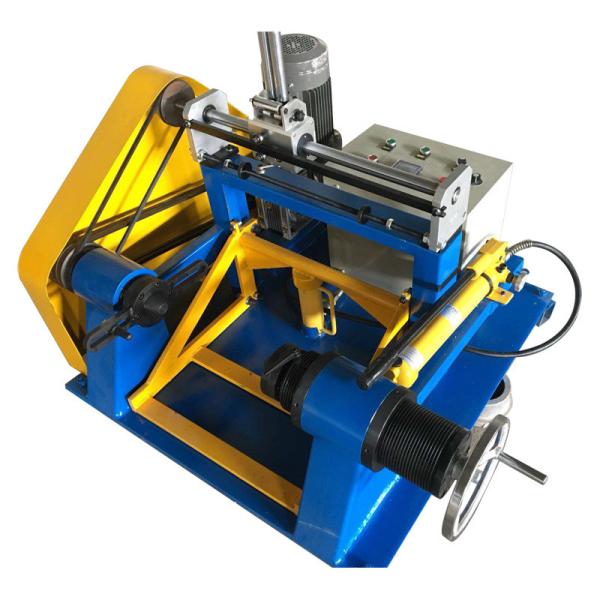

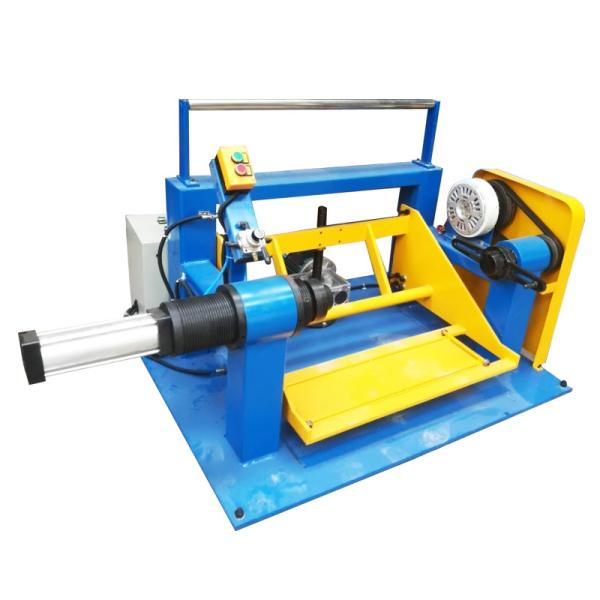

Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
Specifications
Brand Name :
qipang
Model Number :
TC600/630/800/1000
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 PC per day
Delivery Time :
20-30 working days
Packaging Details :
Carton, wooden box
Name :
QP winding machine
Type :
TC500 winding machine
Material :
Aluminum Alloy
Weight :
120 kg
Function :
Uniform winding
Application :
Coiling wire
Warranty :
1year
guide wire :
traverse unit
Voltage :
230V
Description

Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine


Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine

Product show

Spool size,Max 　630-1000
Spindle height to unload platform 　200
Spindle width adjustment 　300
Spool outer diameter 500 /630 /800 /1000 /1250
Spool center hole diameter 　60
Max spool capacity 　1ton
Main winding motor 1.5KW+RV
Spindle motor RPM range 0-350RPM
Voltage 220V /380V

400-630 shaftless winding machine:

1. Adapted tobobbin flange OD diameter: PN400-PN630, coil width 280-475mm, inner hole diameter Φ56mm

2. Applicable line speed: 200m/min

3, Top shaft mode: no shaft top cone

4. Clamp the bobbin: electric screw lifts, the upper and lower limits are safe and reliable

5. Cable: GP30 rolling ring drives, adjustable pitch. Wire winding : 10N.M torque motor winding wire

Φ630-Φ1000mm active pay-off machine

1. Adapt to bobbin flange OD diameter: Φ630-Φ1000mm, Φ1000mm, overall width 475-750mm, inner hole 56/80

2. Top shaft mode: no shaft top cone pneumatic top tight

3. Pay-off speed: MAX200 m / min

4. Clamp the bobbin: 0.75KW electric screw lift

5. Power: 4KW motor drive spool release line

6. Brake: 10KG electromagnetic brake

7. Maximum load capacity: 3000 kg

Details Show :

Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine

Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine

Shanghai Qipang 630-1000 cable rewinding machine Coiling Wire Take Up Machine
