Qipang Wire Take Up Machine QP500 type winding machine Coiling line on spool​

Selection parameter

Specific configuration:

Standard :

1, Chassis 1PC,Suitable for 500mm spool,330mm.

2, One motor,power 375W.

3, Hand fixed spool device,Fixed head 1 pair

4, Power distribution cabinet 1,

Includes power and frequency converter

5, Speed can be adjusted ( Rpm 800-1400 / min )

6, 4 fixed expansion screw eyes on the lower part

7, Anti-slip device at Fixed head

8, Use precision polished shaft rolling ring drive

9, Power supply220V

Select configuration:

1. Calculation the meter(Set the number of meters to stop and alarm)

2. Reducer(Recommended for installation below 800 rpm)

3. protecting (Plus safer)

4. Tension device (equipped with assembly line,Let the line speed be certain)

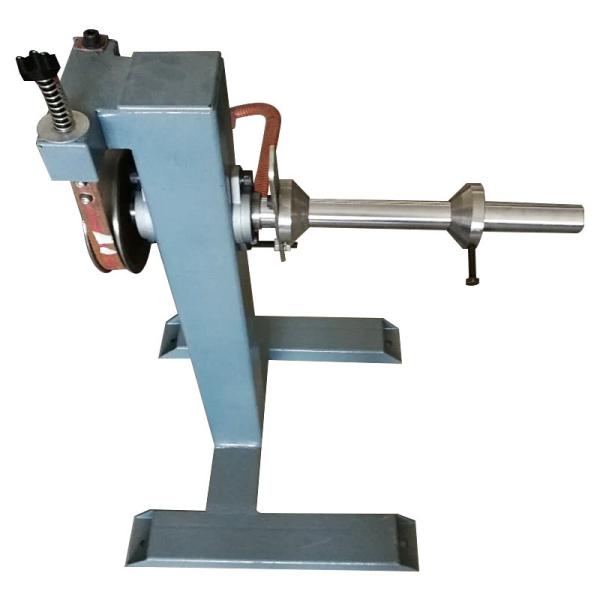

TC series pay-off rack:

"Quality first, customer first" Shanghai Kai Pang Industrial Co., Ltd. is a high-tech enterprise integrating R&D, design, manufacture and service of wire equipment, and has its own import and export rights. The company was founded in 2003 and has passed ISO9001:2008 quality management system certification and SGS third-party authority certification. The company's main customers come to Central Europe, South America, South Africa, most of Asia. Companies adhere to the quality of survival, integrity to win the customer's operating principles, down-to-earth to actively listen to the valuable opinions of users.

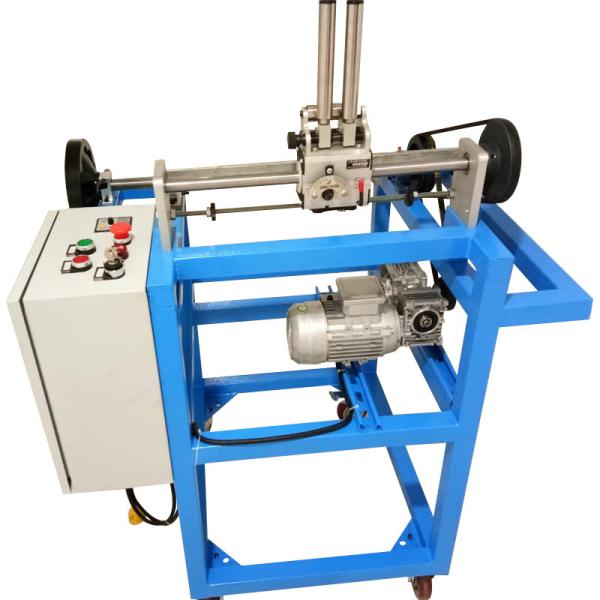

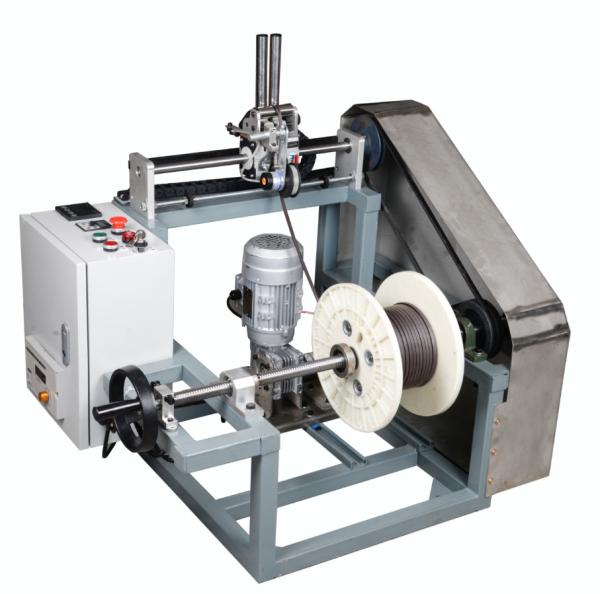

Product display​

Advantage:

1.Frequency control
2. Independently develop hand-cranked chucks to facilitate the upper and lower discs. There are trays under the reels, not afraid to fall down.
3. Conical tip (compatible with a variety of aperture coils)
4. Bearing on both sides, the machine is more stable
5. The bottom plate L foot can be fixed and more stable
6. Speed can match the pipeline, evenly winding
7. Can be customized according to different needs

Customized spool winding machine working video Adjustable tension wire rewinding machine
