Specifications
Brand Name :
qipang
Model Number :
QP300
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 PC per day
Delivery Time :
10-23 working days
Packaging Details :
Carton, wooden box
Name :
Qipang winding machine
Type :
QP300 spool winding machine
Material :
Aluminum Alloy
Weight :
120 kg
Function :
Uniform winding
Application :
Coiling line on the spool
Model :
QP300
Warranty :
1year
Wire range :
1-11mm
Voltage :
220V
Description

Shanghai Qipang 300 PVC Wire Rope Spooling winding machine Equipment

Automated Rolling Ring Drive

Shanghai Qipang 300 PVC Wire Rope Spooling winding machine Equipment Automated Rolling Ring Drive Shanghai Qipang 300 PVC Wire Rope Spooling winding machine Equipment Automated Rolling Ring Drive

Selection parameter

Model TC300 TC 400 TC 500
Line diameter φ0.1-φ3mm φ1-φ5mm φ0.1-φ5mm
Spool size ≤φ300 ≤φ400 ≤φ500
Coiling speed 110r/min 280r/min 280r/min
Take-up motor 1*0.18KW 1*0.37KW 1*0.37KW
Cable way Bearing Traverse Bearing Traverse Bearing Traverse
Take-up strength 8N/M 10N/M 10N/M
Load bearing 20KG 30KG 30KG

Specific configuration:


Standard :
1, Rack: square steel sturdy
2, top 1 pair, tapered tip (compatible with a variety of aperture coil).
3, a power distribution cabinet with power supply and inverter.
4, adjustable speed (120 revolutions per minute, other speeds can be customized)
5, there are 4 fixed expansion screw eyes in the lower part
6, there is anti-slip device at the top, bearing 30KG.
7, the cable is selected for precision polished rod cable.
8, 220V power supply

Standard configuration Select configuration
Square steel, it is strong A. meter counter (set the number of meters to stop and alarm)

1 pair of tapered tips (compatible with a variety of inner hole bobbin).

 B. magnetic powder tension device (to match The production line, so that the speed is constant, will not strain your wire.)
One power distribution cabinet include the power supply and Frequency converter).
Adjustable speed (about 120N turns per minute, other speeds can be customized)
4 fixed expansion screw eyes in the bottom
Anti-slip device at the top, bearing 30KG
Precision rolling ring drives
220V Powerand customized Power.


Company Information :

"Quality first, customer first" Shanghai Kai Pang Industrial Co., Ltd. is a high-tech enterprise integrating R&D, design, manufacture and service of wire equipment, and has its own import and export rights. The company was founded in 2003 and has passed ISO9001:2008 quality management system certification and SGS third-party authority certification. The company's main customers come to Central Europe, South America, South Africa, most of Asia. Companies adhere to the quality of survival, integrity to win the customer's operating principles, down-to-earth to actively listen to the valuable opinions of users.

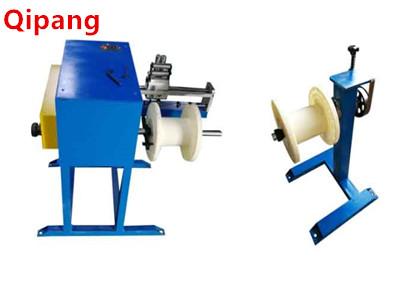

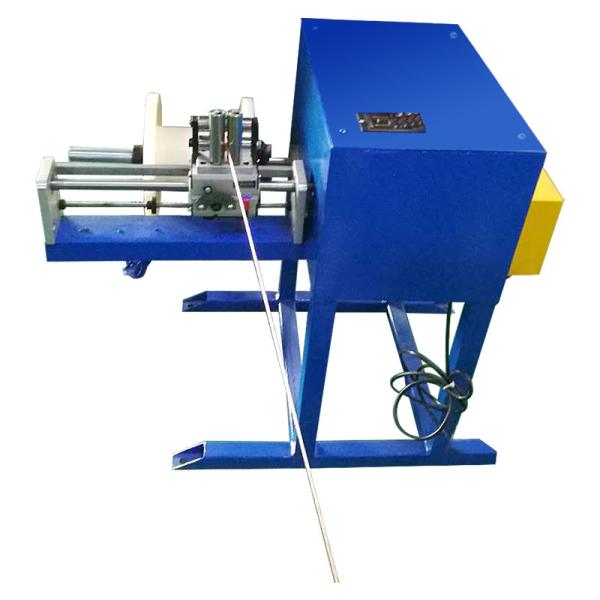

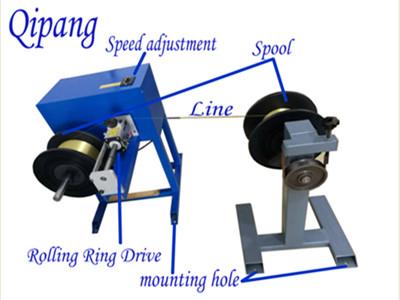

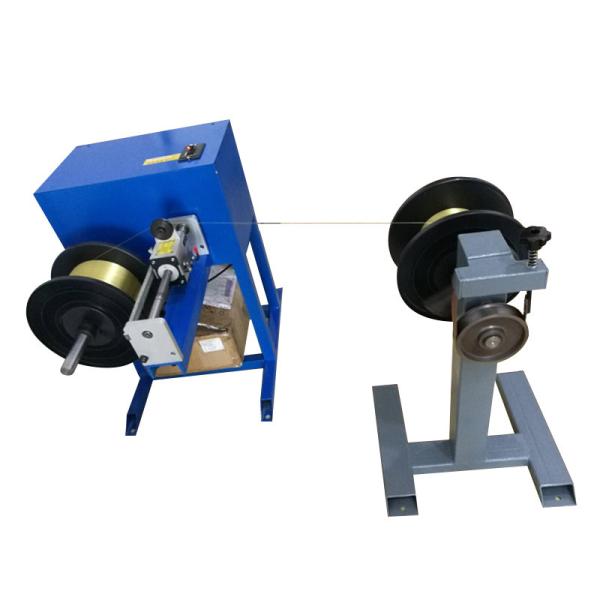

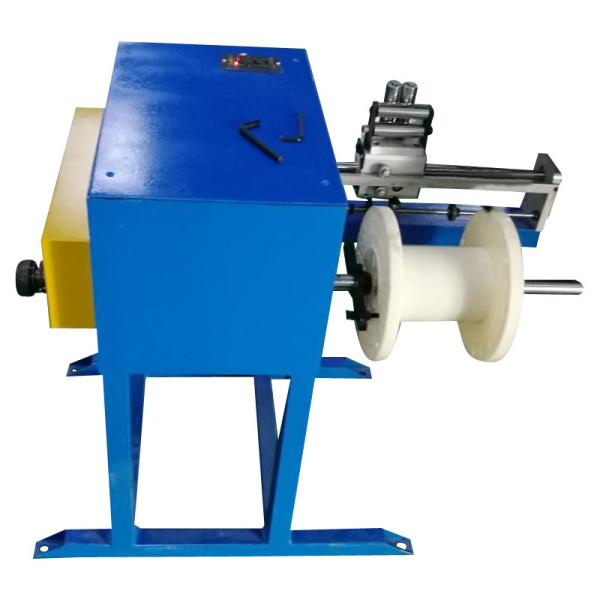

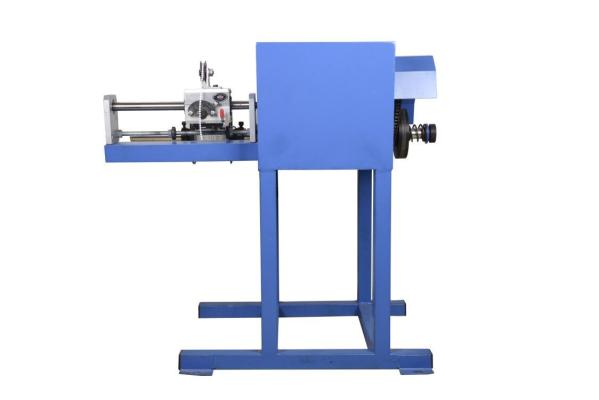

Product display​
Shanghai Qipang 300 PVC Wire Rope Spooling winding machine Equipment Automated Rolling Ring Drive

Shanghai Qipang 300 PVC Wire Rope Spooling winding machine Equipment Automated Rolling Ring Drive
Advantage:


1.Frequency control
2. Independently develop hand-cranked chucks to facilitate the upper and lower discs. There are trays under the reels, not afraid to fall down.
3. Conical tip (compatible with a variety of aperture coils)
4. Bearing on both sides, the machine is more stable
5. The bottom plate L foot can be fixed and more stable
6. Speed can match the pipeline, evenly winding
7. Can be customized according to different needs
