Specifications
Brand Name :
qipang
Model Number :
TC300
Certification :
SGS/CE
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 PC /per day
Delivery Time :
15 working day
Packaging Details :
Carton, wooden box
Brand :
Qipang
Type :
TC300
Material :
Aluminum Alloy
Weight :
30 kg
Speed :
1400r/min
Application :
Coiling line on the spool
Name :
wire take up machine
Warranty :
1year
Power :
0.375kw*1
Voltage :
220V
Description

Qipang TC type automatic, adjustable speed wire take up and paying off machine ,Coiling line on spool

1, use:

wire and soft copper wire, core wire, rope, cloth, etc., 0.1-5mm wire winding.

2,TC series pay-off stand:

(1) with belt brake function

(2) the standard optical axis is 30mm thick, bearing 30KG,

(3) suitable for discs of different diameters, tapered tip (compatible with a variety of aperture coils).

(4) good stability, there are 4 fixed screw holes below.

3, selection parameters

Model TC300 TC 400 TC 500
Line diameter φ0.1-φ3mm φ1-φ5mm φ0.1-φ5mm
Coil width ≤φ300 ≤φ400 ≤φ500
speed 110r/min 280r/min 280r/min
power 1*0.18KW 1*0.37KW 1*0.37KW
Cable way Bearing Traverse Bearing Traverse Bearing Traverse
strength 8N/M 10N/M 10N/M
weight 20KG 30KG 30KG

4,Selection parameter:

Standard Optional
Rack: square steel sturdy A, meter (set the number of meters to stop and alarm)
Top 1 pair, tapered tip (compatible with multiple aperture coils) B, magnetic powder tension device (equipped with a line, so that the line speed is certain, will not strain your wire.)
One power distribution cabinet with power supply and inverter
Adjustable speed (N rounds per minute, other speeds can be customized)
4 fixed expansion screw eyes on the lower part
Anti-slip device at the top, bearing 30KG

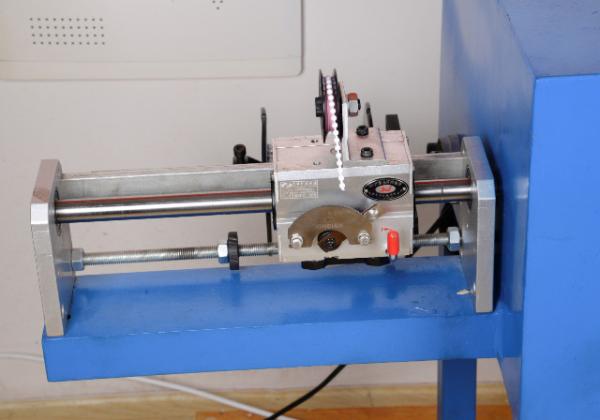

Precision light rod cable arranger
220V power supply or other

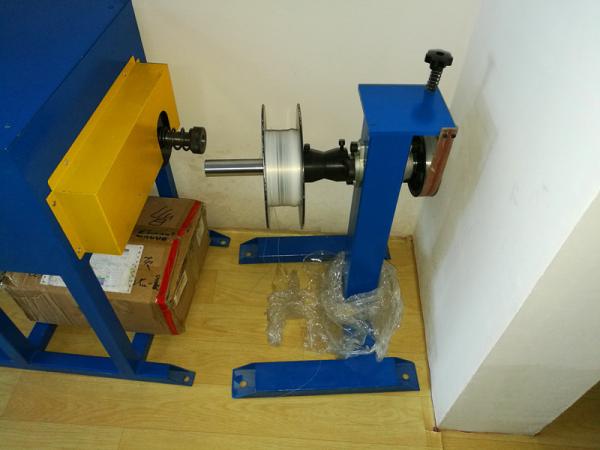

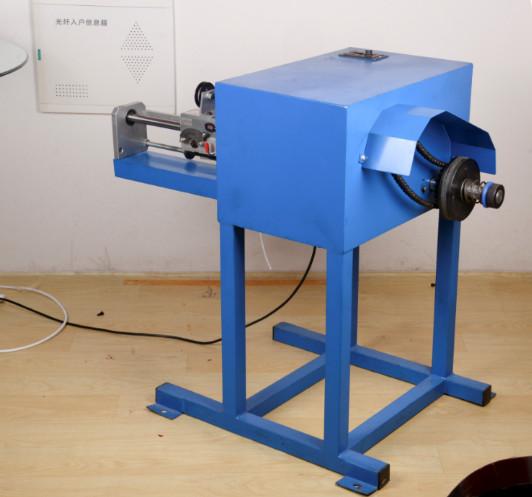

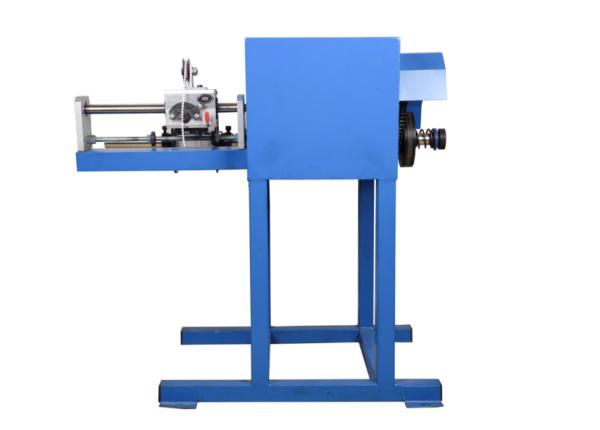

Product show:
