Specifications
Brand Name :
qipang
Model Number :
QP300/400/500
Certification :
ISO9001/ISO9003/ISO2000
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 PC per day
Delivery Time :
15 working day
Packaging Details :
Carton, wooden box
Brand :
Qi Pang
Name :
Wire rope take up machine
Material :
Aluminum Alloy
Weight :
150 kg
Function :
Uniform winding
Color :
blue
Model :
QP300/400/500
Warranty :
12 months
Wire range :
10mm
Voltage :
220V/380V
Description

Qipang QP300/400/500 type wire spooling winding equipment,steel wire rope take up machine with frequency conversion

Company Profile:
"Quality first, customer first". Shanghai Qipang Industrial Co., Ltd. is a high-tech enterprise integrating R&D, design, manufacture and service of wire equipment, and has its own import and export rights. Founded in 2003, the company has passed ISO9001:2008 quality management system certification and SGS third-party authority certification. The company's main customers come to Central Europe, South America, South Africa, most of Asia. Companies adhere to the quality of survival, integrity to win the customer's operating principles, down-to-earth to actively listen to the valuable opinions of users.

Product Advantage:
1.Frequency control
2. Self-developed hand-cranked chucks, convenient for loading and unloading, there are trays under the reels, not afraid to fall down
3. Tapered tip (compatible with multiple aperture coils)
4. Bearing on both sides, the machine is more stable
5. The bottom plate L foot can be fixed and more stable
6. Speed can match the assembly line and wind up at a constant speed
7. Can be customized according to different needs

QP series wire take-up machine:

Model QP 300 QP 400 QP 500
Line diameter φ0.1-φ3mm φ1-φ5mm φ1-φ5mm
Coil width ≤φ300 ≤φ400 ≤φ500
speed 280r /min 280r /min 280r /min
power 1*0.37KW 1*0.37KW 1*0.37KW
thrust 8N/M 10N/M 10N/M
strength 40KG 43KG 50KG


Specific configuration:

Standard Optional
1 rack, suitable for less than 500mm disc, inner width 330mm A, meter (set the number of meters to stop and alarm)
One motor, 370 watts. B, reducer (recommended for installation below 800 rpm)
Hand clamping device, 1 pair of tops C, protective cover (plus safer)
One power distribution cabinet with power supply and inverter D, magnetic powder tension device (with assembly line, let the line speed be constant)
Adjustable speed (10-1400 rpm)
4 fixed expansion screw eyes on the lower part, the machine is more stable
Anti-slip device at the top
Precision light rod cable arranger
220V power supply (others are also available)

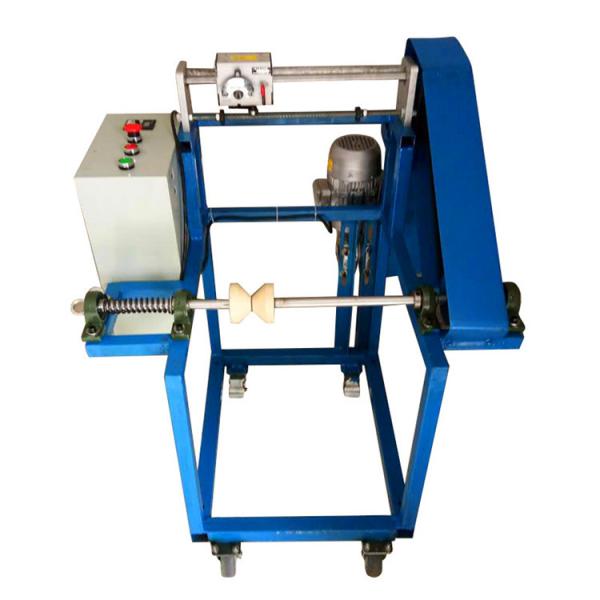

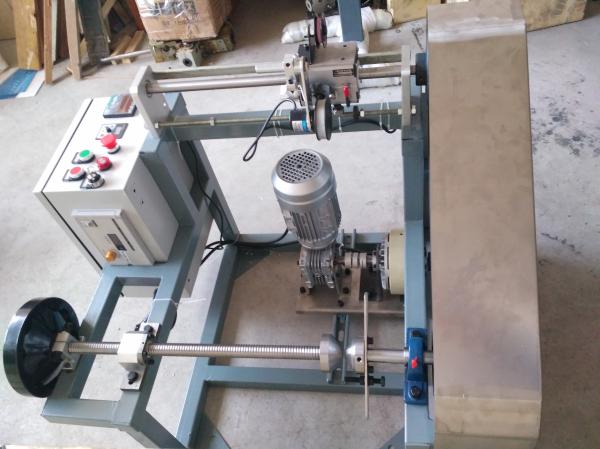

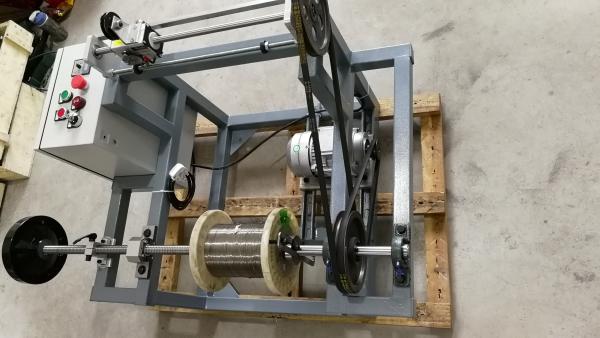

Product show:
Uniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding Machine
Parameter drawing:
Uniform Steel Wire Winding Machine Transformer Coil Winding MachineUniform Steel Wire Winding Machine Transformer Coil Winding Machine
