Specifications
Brand Name :
qipang
Model Number :
TC300/400/500
Certification :
SGS/ISO2000
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 PC per day
Delivery Time :
7-15 working day
Packaging Details :
Carton, wooden box
Name :
Qipang
Type :
TC300/400/500
Line diameter :
0.1-5mm
Weight :
40-50 kg
Speed :
280r/min
Power :
1*0.37kw
Strength :
10N/M
Arrangement :
Precise arrangement
Coil width :
≤φ500
Voltage :
220V
Description

Qipang lastest design high quality Wire Take Up Machine TC300/400/500 type winding machine with ISO certification.
Product Detail:

1,TC series pay-off stand:

(1) with belt brake function
(2) the standard optical axis is 30mm thick, bearing 30KG,
(3) suitable for discs of different diameters, tapered tip (compatible with a variety of aperture coils).

(4) good stability, there are 4 fixed screw holes below.


2, selection parameters:

ModelTC300TC 400TC 500
Line diameterφ0.1-φ3mmφ1-φ5mmφ0.1-φ5mm
Coil width≤φ300≤φ400≤φ500
speed110r/min280r/min280r/min
power1*0.18KW1*0.37KW1*0.37KW
Cable wayBearing TraverseBearing TraverseBearing Traverse
strength8N/M10N/M10N/M
weight20KG30KG30KG


3,Configuration:

StandardOptional
Rack: square steel sturdyA, meter (set the number of meters to stop and alarm)
Top 1 pair, tapered tip (compatible with multiple aperture coils)B, magnetic powder tension device (equipped with a line, so that the line speed is certain, will not strain your wire.)
One power distribution cabinet with power supply and inverter

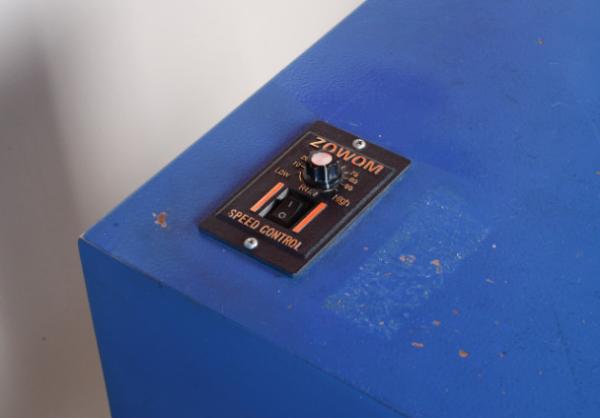

Adjustable speed (N rounds per minute, other speeds can be customized)
4 fixed expansion screw eyes on the lower part
Anti-slip device at the top, bearing 30KG

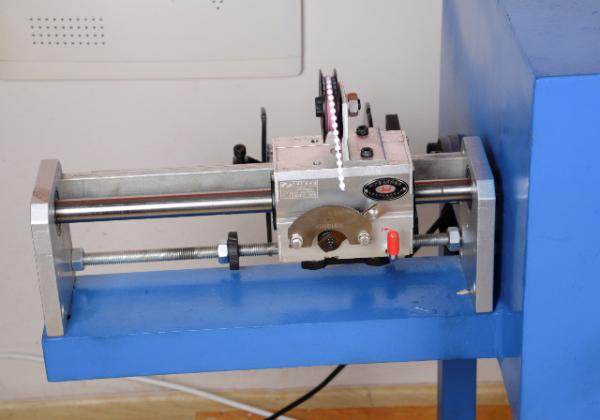

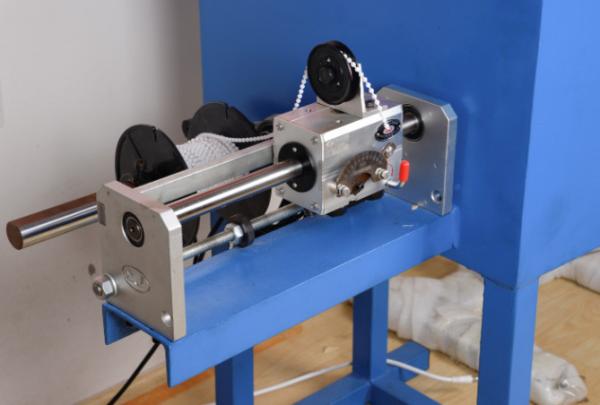

Precision light rod cable arranger
220V power supply or other

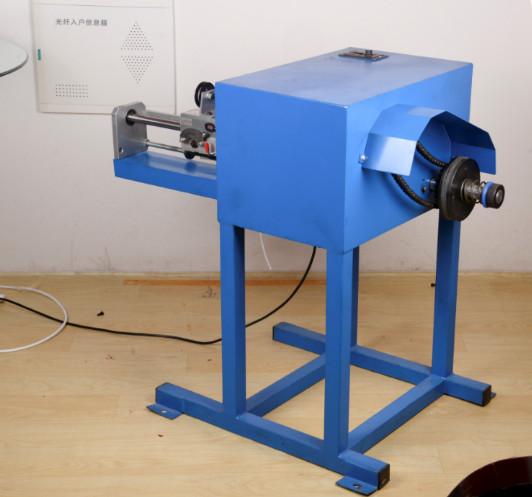

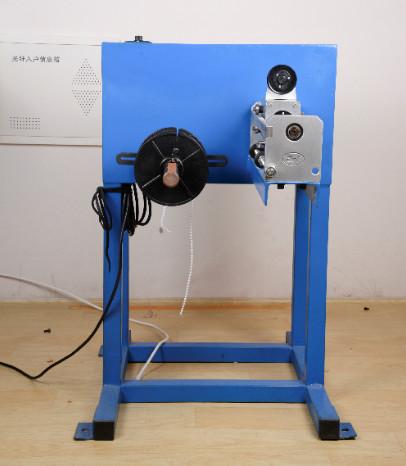

Product Show:
High Precision Automatic Cable Winding Machine Square Steel Sturdy RackHigh Precision Automatic Cable Winding Machine Square Steel Sturdy RackHigh Precision Automatic Cable Winding Machine Square Steel Sturdy RackHigh Precision Automatic Cable Winding Machine Square Steel Sturdy RackHigh Precision Automatic Cable Winding Machine Square Steel Sturdy Rack
