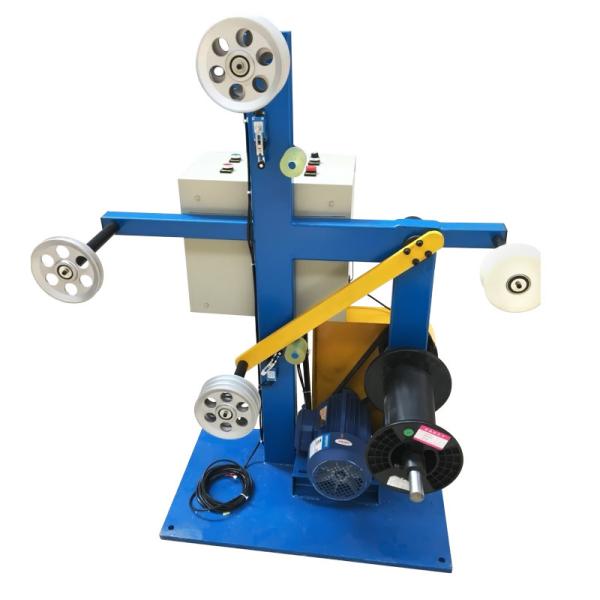

Qipang TC630 high quality automatic transformer Wire Coil Winding Machine made in china with CE certification.

(1) Release part
1. Applicable reel: PND400-600mm, width 300-400mm, hole 56mm and 75mm
2. Release method: active release
3. Chuck mode: no shaft thimble clamping
4. Lifting method: electric lifting
5. Take-up motor: 4KW
6. Inverter power: 4KW
7. Line speed: 0-300 m / min
8. Storage line guide wheel outer diameter: 250 mm (aluminum alloy made up to five down four)
9. Release type: vertical type
10. Braking method: pneumatic brake

(2) Vertical tension storage rack
1. The total height is 2 meters;
2. The storage line volume is 0-15 meters, and the storage line wheel is Φ400mm (4 groups + 3 groups);
3, adapt to the wire diameter: 0.5-10mm2 hard wire, Ф 15mm or less soft wire;
4. Guide wheel material: aluminum alloy material, surface hardening treatment;
5, control mode: the sensor gives 0-10V voltage signal, control the speed of the line

(3) Metering device
1. Form: one-way stop;
2. The rubber wheel is used on the surface of the meter wheel and the pressure roller to ensure that the wire is not damaged by pressure.

(4) Closing part
11. Meter meter: electronic meter
12. Meter accuracy: 0.1% (one thousandth)
13.Intelligent metering device: adjustable metering factor for easy correction error
14. The spindle center height is set at 560 mm
15. Cable type: pulley cable
16. Wire take-up speed: 0-400 m / min
17. Take-up inner diameter: φ160mm
18. Outer diameter: φ400mm
19. Cable width: adjustable from 60-160mm
20. Number of cable troughs: 3 slots
21. Motor power: 380V, 2.2KW
22. Scope of application: Applicable wire diameter 8 mm
23. Floor area: about 5nX1.5m
24. Production direction: left and right
25. Body color: sea blue, beige chrysanthemum
