High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
Specifications
Brand Name :
TeXin
Model Number :
TX-HZ200W
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100000per month
Delivery Time :
5-8 days
Packaging Details :
Durable case or box
Power :
200W
Frequency :
Customized
Voltage :
28V
Current :
16A
Weight :
1148g
Size :
220*113*21mm
Application :
anti drone system
Material :
Aluminium
Connector :
N
Description

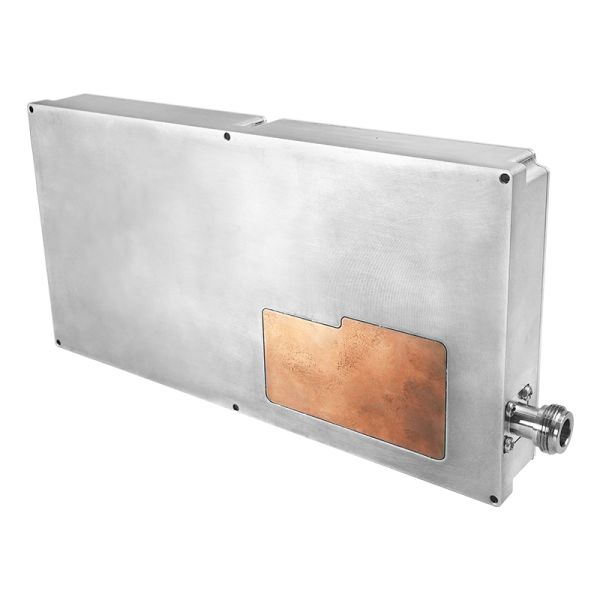

High Power 200W RF Jammer Module for Anti-Drone Systems
This 200W high-power drone jamming module is designed for integration into large-scale anti-drone equipment. It provides reliable protection for security departments, VIP security details, and various drone-related applications with its extensive jamming range and rapid response capabilities.
Product Overview
This professional anti-drone RF jammer module incorporates advanced gallium nitride (GaN) technology and precise frequency control. It targets the 2.4GHz WiFi band (commonly used for drone remote control and data transmission) and the 2300MHz-2500MHz frequency range (used for drone image transmission and auxiliary communication). The module emits powerful RF interference signals to force unauthorized drones to lose control, return to origin, or execute emergency landings. Its compact, highly integrated design ensures compatibility with portable anti-drone guns, vehicle-mounted platforms, and fixed anti-drone towers.
Technical Specifications
Parameter Value Unit
Frequency 2350-2500 MHz
Test Voltage 28 V
Current 16 A

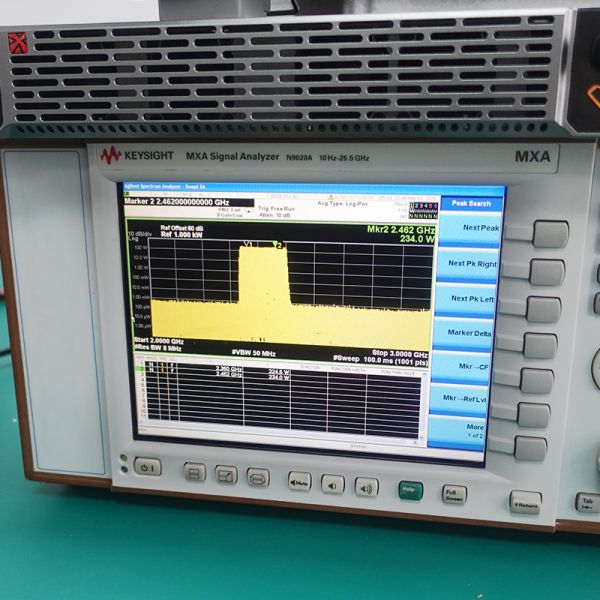

Output Power 200 W
Gain 53 dB
Output Stability 1 dB
Connector N/Female
Output Connector VSWR ≤1.30 (No power and VNA test)

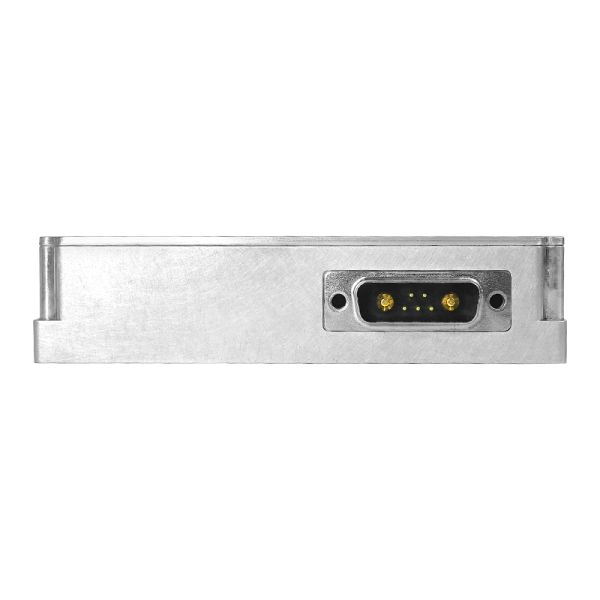

Power Supply Red+Black+Enable wire
Enable Control High ON Low Off
Dimensions 220*113*21 mm
Mount Hole 220*113 mm
Weight 1148 g
Operating Temperature -40 to +65 ℃
Housing Material Aluminum
Vibration Resistance Car load OK
Key Features
  • Operating frequency: 2360 - 2500 MHz
  • Output power: 220 W typical (CW)
  • Built-in oscillator and driver circuit
  • High-efficiency GaN power amplifier
  • Pure copper bottom base
  • Complete protection: OVP, OTP, Output Open Circuit Protection
High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system High power 200W wifi 2.4ghz 2300mhz 2500mhz rf jammer module for anti drone system
Important Usage Notes
  • Use only with matched voltage specifications
  • Connect antenna before powering on the device
  • Cooling system required for prolonged operation
  • Optimal performance in areas with unobstructed views
Frequently Asked Questions
What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing.
What payment methods do you accept?
We accept T/T, PayPal, USDT, Alipay, WeChat, and other payment methods.
What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
