10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems
10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems

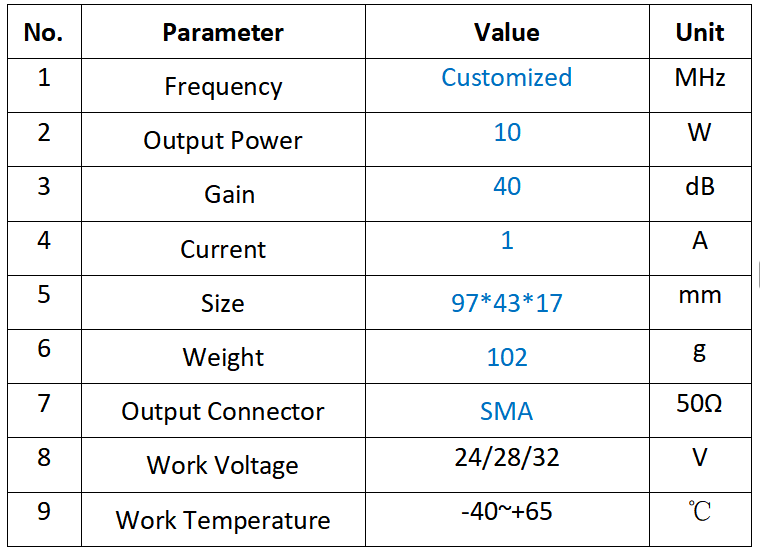

Specifications
Brand Name :
TeXin
Model Number :
TX-E10
Certification :
ISO9001,SGS
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P,
Supply Ability :
10000pcs per month
Delivery Time :
1-3 days
Packaging Details :
K=K 5 layer paper carton
Frequency :
Customized
Output Power :
10W
Gain :
40dB
Current :
1A
Size :
97*43*17mm
Weight :
102g
Output Connector :
SMA
Work Voltage :
24/28/32V
Work Temperature :
-40~+65℃
Description

10W Signal Jammer Module

Product Description

This module is of the high average output power, good in-band flatness and the small offset between upper and lower side band. ( No signal source version is offered too )

10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems

Application:

Drone Jammer, Signal Jammer, Signal Booster


10W RF Power jammer Module UAV Jamming Power Module for Anti Drone Defense Systems

Product Feature:

• Working frequency band: MHz

• Working voltage: 24/28/32V

• Working current: 1000mA@Pout 40dBm 24V

• Working temperature: -40℃～65℃

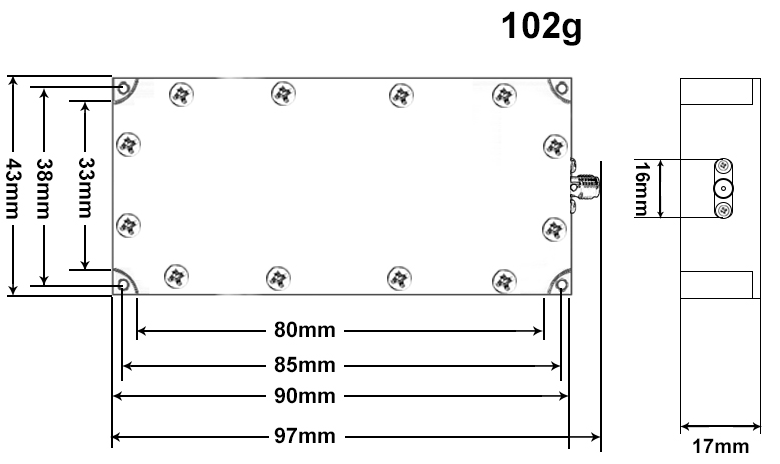

Physical Structure

• Shell size: 97*43*17mm

• Net weight: 0.102 KG

• RF output connector: SMA/Female

• Power supply port: red and black wire

• Shell: aluminum material, natural color oxide sandblasting

• Fixed hole: 4 fixed position around the shell

Precautions for use

• Power supply needs to carry 24V 1A

• When the output power is > 5W, it is necessary to strengthen the heat

dissipation treatment such as the thermal glue, heat sink and the cool fan

• Antenna or Load must be firstly connected before the power supply
