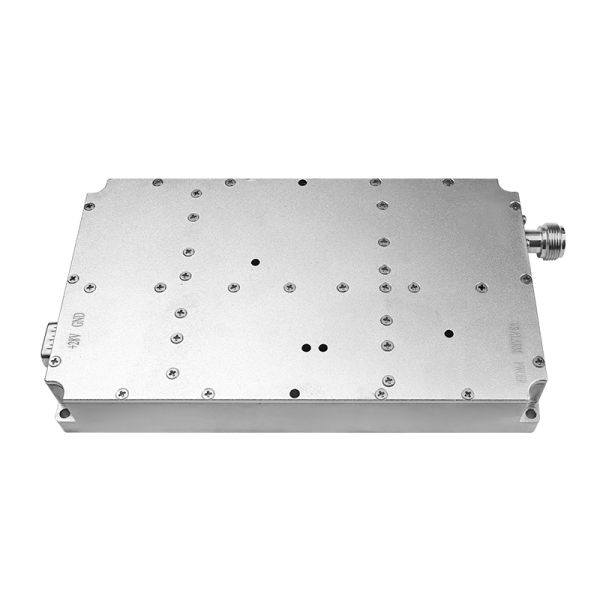

100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems
Specifications
Brand Name :
TX
Model Number :
TX-TZ100W
Certification :
ISO9001,SGS,CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
10000pcs per month
Delivery Time :
1-3 days
Packaging Details :
Durable case or box
Frequency :
300-2700MHz(Bandwidth customized)
Work Temperature :
-20~+70℃
Max Output Power :
100w
Input power :
5dBm(0-10dbm optional Regular type with VCO inside no need input)
Work Voltage :
24-32V
Max Gain :
50dB
Max Current :
10A
Impedance :
50Ω
Output Connector :
N/F
Power Amplifier Efficiency :
45(when Max Output)
Switch Control :
high low level current
Power adjustable :
Customized
Standing Wave Protection :
OK
Temperature Protection :
75℃
Size :
200*110*24mm
Weight :
0.91Kg
Description

300-2700 100W Jammer Module

Model:

It is a wireless information security module dedicated to frequency in 300-2700MHz.

This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.

Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems

2.4GHz 100W RF Power Amplifier Specification
No. Item Data Unit Notes
1 Frequency 300-2700 MHZ Bandwidth customize
2 Work Temperature -20~+70 ℃
3 Max Output Power 100 W
4 Input power 5 dBm

0-10dbm optional

Regular type with VCO inside no need input
5 Work Voltage 24-32 V
6 Max Gain 50 dB
7 Max Current 10 A
8 Impedance 50Ω
9 Output Connector N/F Customized
10 Power Amplifier Efficiency 45 when Max Output
11 Switch Control high low
level current		 V

24-28V

Or Customized
12 Power adjustable Customize Can make if you need
13 Standing Wave Protection OK
14 Temperature Protection 75° ℃

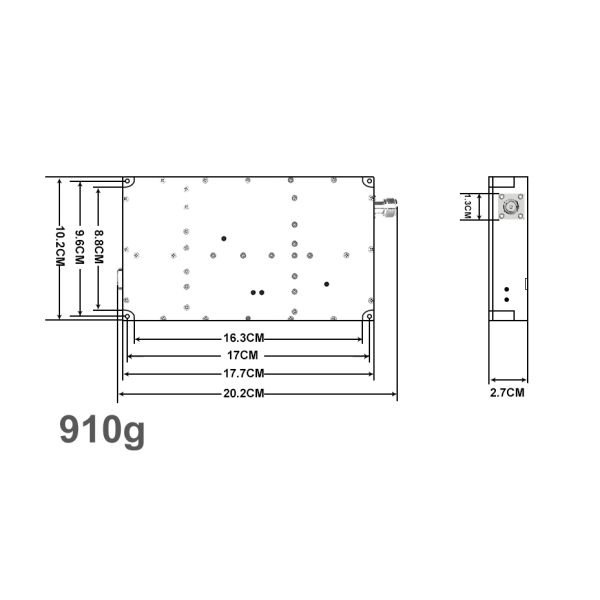

15 Size 200*110*24 mm
16 Weight 0.91 Kg

100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems

Application field:

Precautions for use

  • Power supply needs to carry more than24V 10A
  • If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.
  • When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power
