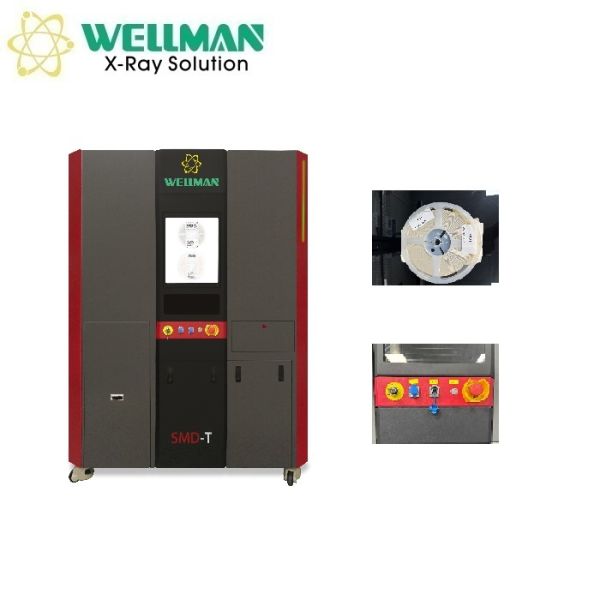

Intelligent SMD Reels Storage Equipment with 1120 Reels capacity SMD Tower SMD-T Supporting Barcode and QR Code Scanning
Intelligent SMD Reels Storage Equipment with 1120 Reels capacity SMD Tower SMD-T Supporting Barcode and QR Code Scanning
Specifications
Power :
3000W
Power supply :
220VAC, 16A
Brand Name :
WELLMAN
Model Number :
Smart SMD Tower SMD-T
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Description
Intelligent SMD Reels Storage Equipment with 1120 Reels capacity SMD Tower SMD-T Supporting Barcode and QR Code Scanning
Smart SMD Tower SMD-T

Advanced automated storage solution for SMD reels with intelligent inventory management and barcode/QR code scanning capabilities.

Workflow
Intelligent SMD Reels Storage Equipment with 1120 Reels capacity SMD Tower SMD-T Supporting Barcode and QR Code Scanning
Hardware Specifications
Feature Specification
Storage Operation Automatic in/out with barcode/QR code scanning
Material Type SMD reel
Batch Loading Supported
Standard Capacity 750 reels (7" & 10mm reel)
Expanded Capacity 1120 reels (7" & 10mm reel)
Cycle Time 12-15s (standard), 12-16s (expanded)
Reel Dimensions 5mm min height, 25mm max height (customizable)
Max Weight 3KG (customizable)
System Features Multi-tower connection, WMS management, temperature/humidity monitoring
Physical Dimensions 1450mm (L) * 1900mm (W) * 2050mm (H), expandable to 2700mm height
Weight 1500KG (standard), 2000KG (expanded)
Power Requirements 220VAC, 16A, 3000W
Software Capabilities
Inventory Control
  • Intelligent inventory management with location freezing
  • Inventory verification and automatic updates
  • Scan-and-load functionality for reel placement
Warehouse Management
  • Material Management
  • Transform unique codes for new materials and update master inventory
  • Tower Configuration: Setup new SMD towers and location mapping
  • Supplier/Customer Info: Comprehensive management of supplier and customer data
Material Handling
  • System initialization on power-up
  • Single reel in/out operations with scanning
  • Batch loading and production order processing
  • Expired reel locking to prevent production use
Database Functions
  • Location parameter recording and status tracking
  • Complete in/out records for full traceability
  • Operation logging for all system activities
Key Advantages
  • Ultra-high space utilization with standard capacity of approximately 750 reels (expandable to 1120 reels)
  • Batch automatic scanning and loading (12 seconds per reel) with barcode/QR code compatibility
  • Customizable configurations with full software technical support
  • Comprehensive inventory monitoring to ensure accuracy and prevent production interruptions
  • Fully automated storage system supporting 7" to 15" reels
  • Automated data backup and traceability through scanning
  • Controlled environment with reel life monitoring capabilities
  • Seamless integration with MES, ERP, WMS and other management systems
