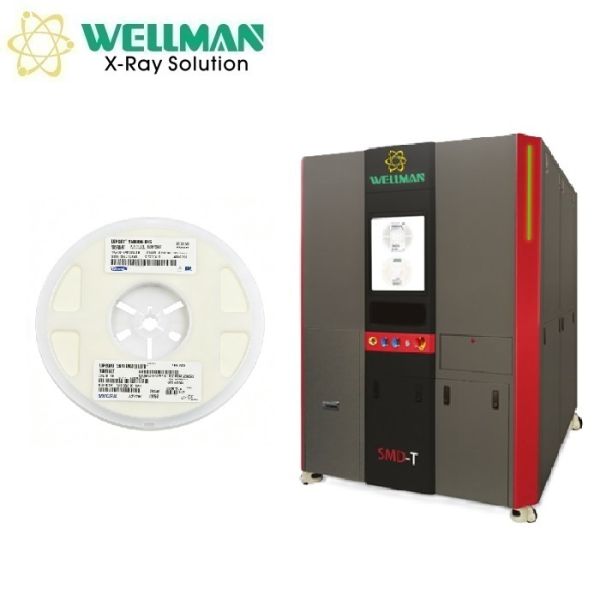

Smart SMD Tower with barcode and QR code for inventory management
Smart SMD Tower with barcode and QR code for inventory management
Specifications
Brand Name :
WELLMAN
Model Number :
Smart SMD Tower SMD-T
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Code scanning :
Barcode and QR code
Material type :
SMD reel
Power supply :
220VAC, 16A
Power :
3000W
Displayer :
17” touch screen
Description
Smart SMD Tower with Barcode and QR Code for Inventory Management
The Smart SMD Tower SMD-T provides advanced automated storage and retrieval solutions for SMD components with integrated barcode and QR code scanning capabilities.
Workflow Process
Smart SMD Tower with barcode and QR code for inventory management
Key Advantages
  • Ultra-high space utilization with standard capacity of approximately 750 reels
  • Batch automatic scanning and loading, compatible with barcode/QR code technology
  • Fast processing: one reel processed in 12 seconds
  • Fully automatic in and out storage supporting 7" to 15" reels
  • Integration with MES, ERP, WMS, and other management systems
  • Comprehensive SMD inventory management ensuring accuracy and preventing production interruptions
  • Controlled environment for SMD components with reel life monitoring
  • Automatic data backup and storage with quick search functionality via scanning
  • Full traceability of SMD components throughout the production process
  • Customizable solutions with comprehensive software technical support
  • Height extension capability to 2.7 meters with expanded capacity to approximately 1120 reels
Software Functionality
Warehouse Management System Material Management Transform unique code for new incoming material and add to total material table
Tower Setup Set up new SMD tower and its locations
Supplier Information Supplier information management: add, delete, or search
Customer Information Customer information management: add, delete, or search
Inventory Management Intelligent management of overall inventory
Inventory Freeze Freeze specific locations
Inventory Verification Take stock and update data of stored reels
Scan and Load Scan reel code and put into location
SMD Tower Database Location parameter table recording coordinate and size information
Current SMD Tower Table Record status of each location in current SMD tower
In & Out Records Record all material bin and tray transactions for traceability
Operation Records Record initialization, power cycles, alarms, and other operations
Material Bin Functions Initialization when machine powers on
Single Reel In Place reel on designated position, load after scanning code
Single Reel Out Search for specified reel and send out
Batch Loading Automatically load reels into tower in batches
Place Production Orders Upload P/N or unique ID for system analysis, lock reels, and notify SMD towers to unload
Unload to Order Receive production orders and unload reels in batches
Lock Expired Reels Lock expired reels to prevent entry into production process
Hardware Specifications
In and Out Storage
Barcode and QR code scanning
Material Type
SMD reel
Batch Loading
Yes
Standard Capacity
750pcs (7" & 10mm reel)
Capacity After Heightening
1120pcs (7" & 10mm reel)
Single Reel Cycle Time
12-15s
Cycle Time After Heightening
12-16s
Minimum Height
5mm
Maximum Height
25mm (customizable)
Maximum Weight
3KG (customizable)
Multi-tower Connection
Supported
WMS Management
Yes
Temperature and Humidity Warning
Supported
Chip Mounter Communication
Optional
Management Systems Connection
MES, ERP, WMS, etc.
Dimensions
1450mm (L) × 1900mm (W) × 2050mm (H)
Height After Heightening
2700mm
Weight
1500KG
Weight After Heightening
2000KG
Power Supply
220VAC, 16A
Power
3000W
Industrial PC
I7 CPU, 8G RAM, 240G SSD+1T HDD
Display
17" touch screen
Working Temperature
0 - 40°C
Working Humidity
10 - 85%
Noise
50dB
Air Pressure
0.5-0.7mpa
N2 Interface
Supported
