Reliable Smart Storage Solution for SMD Components Optimizing Space Utilization and Work Efficiency
Reliable Smart Storage Solution for SMD Components Optimizing Space Utilization and Work Efficiency
Specifications
Brand Name :
WELLMAN
Model Number :
SMD-T
Certification :
CE, FDA，ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T
Applicable Reel :
7-15 inches​
Product Type :
Electronic Component
Product Shape :
Rectangular
Description
Reliable Smart Storage Solution for SMD Components

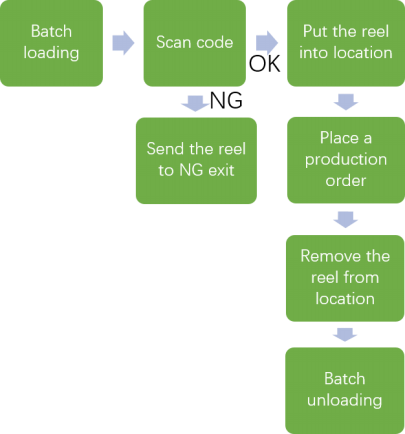

Equipment Workflow
Reliable Smart Storage Solution for SMD Components Optimizing Space Utilization and Work Efficiency
Key Advantages
  • Fully automatic in/out storage with batch code scanning, compatible with barcode/QR code, supporting 7"-15" reels
  • Ultra-high space utilization (750 reels standard) with height extension to 2.7m (1,120 reels expanded)
  • Integration with MES, ERP, WMS and other management systems
  • Comprehensive SMD inventory management with data auto-backup/search, controlled environment, and reel life monitoring
  • Customizable solutions with professional software technical support
Hardware Specifications
Storage & Material Handling
In and Out Storage Code scanning with barcode and QR code support
Material Type SMD reel
Batch Loading Yes
Capacity & Performance
Standard Capacity 750pcs (7" & 10mm reel)
Capacity After Heightening 1120pcs (7" & 10mm reel)
Support Reel Size 7" to 13", 15" customizable
Single Reel Cycle Time Approx. 15s
Cycle Time After Heightening Approx. 16s
Mini Height 5mm
Max Height 25mm (customizable)
Max Weight 3KG (customizable)
System & Connectivity
Multi-tower Connection Support
WMS Management Support
Temperature and Humidity Warning Support
Operation System Windows 10
Chip Mounter Communication Optional
Management Systems Connection MES, ERP, WMS etc.
Equipment Specifications
Dimensions 1450mm (L) * 1900mm (W) * 2050mm (H)
Dimensions for 15" Reel 1650mm (L) * 2120mm (W) * 2050mm (H)
Height After Heightening 2750mm
Weight 1500KG
Weight After Heightening 2000KG
Power Supply 220VAC, 10A
Power 3000W
Industrial PC I7 CPU, 8G RAM, 240G SSD+1T HDD
Displayer 17" touch screen
Working Temperature 0 - 40°C
Working Humidity 10 - 85%
Noise 50dB
Air Pressure 0.5-0.7mpa
N2 Interface Support

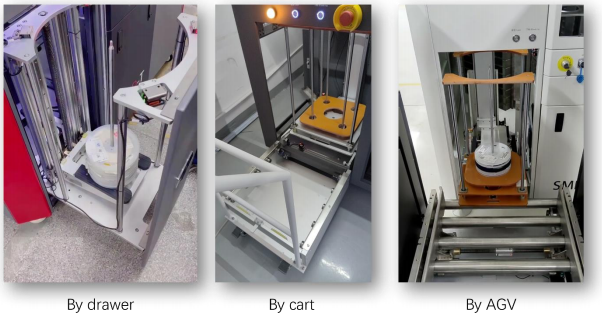

Optional Loading & Unloading Methods
Reliable Smart Storage Solution for SMD Components Optimizing Space Utilization and Work Efficiency
Software Functions
Warehouse Management
  • Material management: Generate unique codes for new materials
  • Tower configuration: Add and set up SMD towers
  • Supplier management: Add, delete, query supplier data
  • Customer management: Add, delete, query customer data
  • Inventory control: Full-process intelligent inventory management
  • Inventory freeze: Lock specified storage positions
  • Stocktaking: Inventory check and data update
Operation & Database
  • Scan & load: Code scanning + automatic storage
  • Location parameter: Record coordinates and dimensions
  • Tower status: Real-time position status monitoring
  • In/out record: Full log for material traceability
  • Operation log: Record startup, alarm and system events
Material Bin Control
  • Power-on initialization
  • Single reel in/out
  • Batch automatic loading
  • Production order placement
  • Order-based batch unloading
  • Expired reel locking
